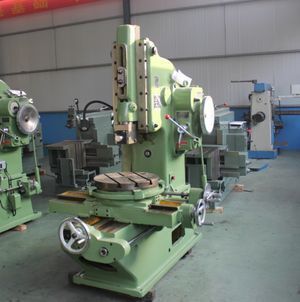

excellent quality vertical slotting machine BC5032 slotter slotting machine vertical
-
Supplier: Zaozhuang City Tengdong Machine Co., Ltd. -
Region: Shandong, China -
Contact: Mr Teng dong -
Price: $5600.00 /set -
Min. Order: 1 set
| Maximum machining size of workpiece(L*H): | 600*320mm; | Dimension(L*W*H): | 2180*1505*2285mm; |
| Condition: | New; | Rotating speeed of main drive motor: | 960r.p.m; |
| Voltage: | 220V/380V; | Package Preview: | ; |
| Power: | 4kw; | Product Name: | slotting machine; |
| Warranty: | 1 Year; | Color: | Optional; |
| Model: | BC5032; | Place of Origin: | Shandong China; |
| Overall dimensions (L*W*H): | 2180*1505*2285mm; | Weight: | 3000; |
| Payment Terms: | T/T; | Max.longitudinal travel of table: | 480/630mm; |
| Max.cross travel of table: | 480/560mm; | Table diameter: | 630mm; |
| Port: | Qingdao; | Max.weight of workpiece: | 500kg; |
| Supply Ability: | 30 Set/Sets per Month; | After-sales Service Provided: | Online support; |
| Brand Name: | Tengdong; |

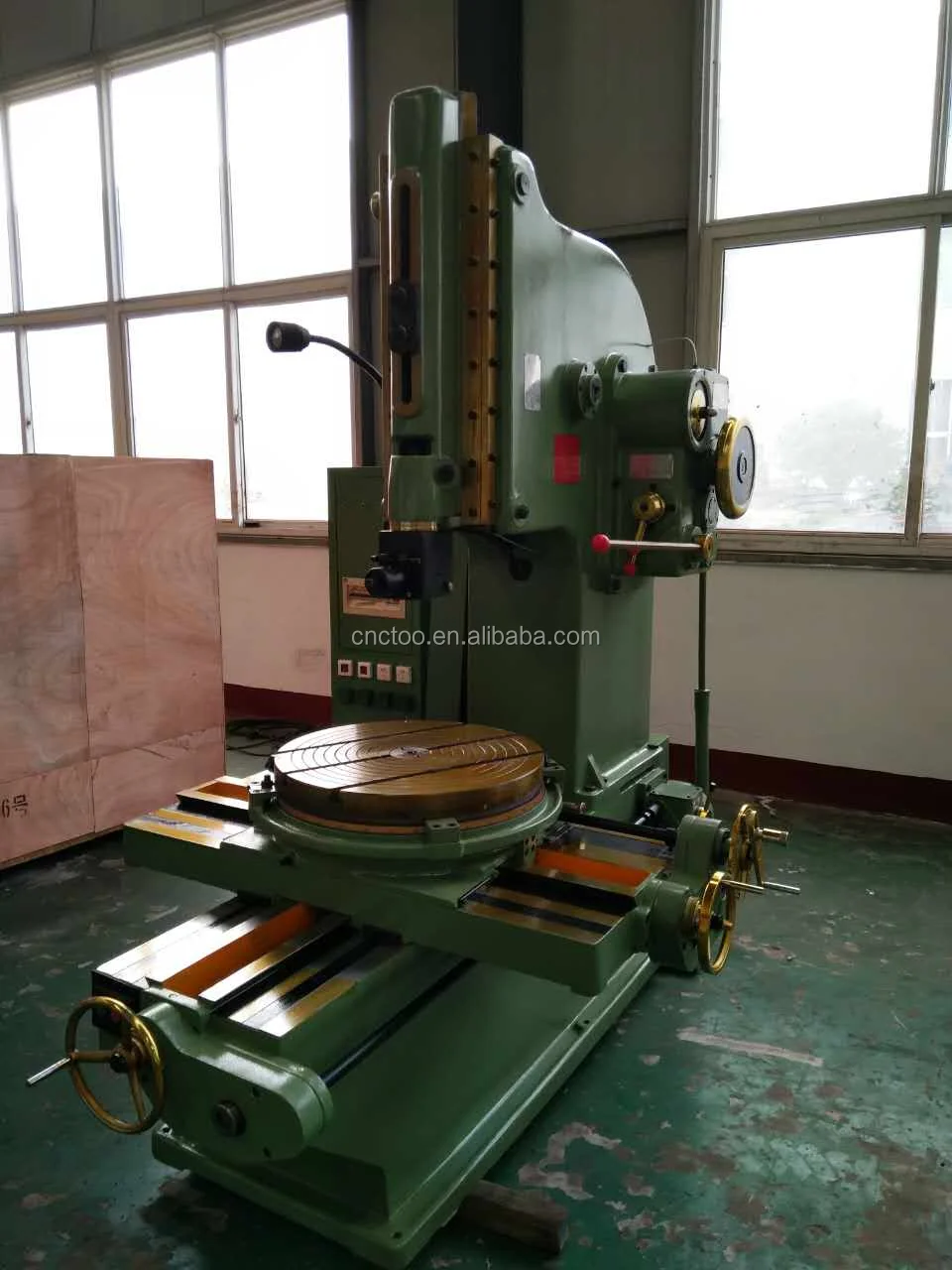

Excellent quality vertical slotting machine BC5032 slotter slotting machine vertical
| Model | BC5032 |
| Max.slotting length | 320mm |
| Maximum machining size of workpiece(L*H) | 600*320mm |
| Max.weight of workpiece | 500kg |
| Max.cutting force | 7500N |
| No.of strokes per minutem | 20.32.50.80.r.p.m |
| Vertical ajustment of ram | 315mm |
| Inclination of ram | 0-8° |
| Distance between tool holdingsurface and column front | 600mm |
| Max.tool shank size (W*H) | 25*40mm |
| Table diameter | 630mm |
| Distance between table surface and low end of ram | 490mm |
| Max.longitudinal travel of table | 480/630mm |
| Max.cross travel of table | 480/560mm |
| Max.Rotary angle of table | ±360° |
| Range of table longitudinal and cross power feeds | |
| 0.08-1.21mm | |
| Range of table power feeds | 0.052-0.783 |
| Power of rapid drive motor | 4kw |
| Rotating speeed of main drive motor | 960r.p.m |
| Overall dimensions (L*W*H) | 2180*1505*2285mm |
| Weight(approx) | 3000kg |
| Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool equipment consisting mainly of modern production group production enterprises. Company under the three production bases, an import and export foreign trade companies |
WORKSHOP
Q1: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
Q2.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q3.How soon can I receive the goods?
A:Most of our products are in stock, and we will arrange shipment around a week after payment is completed.
Q4.Can I trust you?
A:Sure, we’re Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.
Q5.What is the package? Is it suitable for shipment?
A:Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.
Q6.Are you manufacturer?
A: Yes, we are a manufacturer of machine tools,we have our own technical team, and about 100,000 sq.m workshop, welcome to visit us!
-
