Cheap Forging Hammer 110kg Pneumatic Hammer Forging Hammer Price

Supplier: Anyang Forging Press Machinery Industry Co., Ltd.
Region: Henan, China
Contact: Ms Yanli Xu
Price: $20300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	Weight (kg):	3300
port:	Tianjin Port and other Chinese ports	Packaging Details:	Plywood case
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Core Components Warranty:	1 year
Mechanical test report:	if	Marketing Type:	normal product
Main selling point:	easy to operate	Packaging Preview:
Applicable industries:	Manufacturing plants, households, blacksmith workshops	Warranty:	1 year
Type of machine:	Blacksmith Pneumatic Hammer	Video external inspection:	if
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	brand:	Anyang
place of origin; place of origin:	Henan, China	Showroom location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, Morocco
Certification:	CE/PEOP/ISO9001:2015

product description

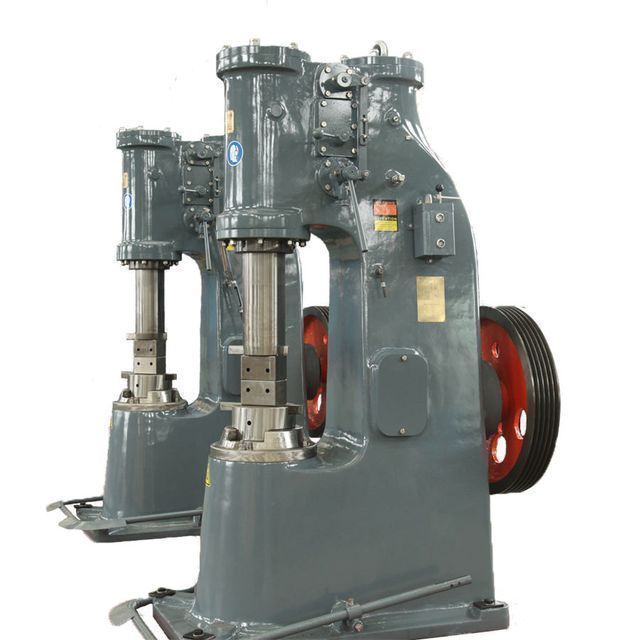

Blacksmith uses Anyang electric hammer

Anyang blacksmith power hammer is widely used in free forging from 9kg to 110kg. The frame is cast iron and the internal parts are forged steel and precision machined.

Features and Benefits:

1. Anyang pneumatic forging hammer does not need an external air compressor. It will compress the air inside with a flywheel driven by a motor.

2. The cast iron frame will never bend or warp. Comparing the weights of different hammers, you will find that Anyang is the heaviest. Cast iron is much more expensive to manufacture but allows designers to put quality and strength where it is needed.

3. Lifetime frame warranty, one year warranty for wearing parts and one year warranty for electrical components.

5. Minimalist design. There are only 3 basic parts (crankcase, compressor piston, plunger). The hammer can be disassembled and rebuilt in a day or less if needed.

4. External drive belt. The design keeps the belt dry and away from oil. This eliminates belt slippage and extends belt life. Replacing belts is quick and easy.

6. Easy installation and low maintenance.

Product Specifications

The main technical parameters
Model			C41-9	C41-15L	C41-25L	C41-40L	C41-55L	C41-75L	C41-110L
Falling weight (kg)			9	15	25	40	55	75	110
Hit energy (kj)			0.09	0.16	0.27	0.53	0.7	1	1.98
Batting frequency (min-1)			245	300	250	245	230	210	180
Work area height (mm)			135	160	240	245	270	300	355
D - Throat depth (mm)			120	170	235	270	300	330	400
Serving	square	25×25	30×30	40×40	52×52	60×60	65×65	110×110
piece	circle (mm)	Φ30	Φ35	Φ48	Φ68	Φ75	Φ85	Φ120
strength	(kilowatt)	1.5	2.2	3	4	7.5	7.5	15
weight	including base	450	490	1080	1263	1750	2700	3300
L1 (mm)			1080	1180	1470	1650	1860	1620	1910
L2 (mm)			420	650	740	800	880	930	1070
H1 (mm)			850	1025	1330	1500	1750	2220	2382
H2 (mm)			1450	1575	1835	1920	2100
H3 (mm)			920	920	925	920	965	915	917

detailed picture
