C41 25kg/40kg/65kg/75kg pneumatic hammer jackhammer with jackhammer

  • Supplier: Henan Wadley CNC Machinery Co., Ltd.
  • Region: Henan, China
  • Contact: Ms Wadley Li
  • Price: $2600.00 / 1 - 4 sets
    $2400.00 / 5 - 19 sets
    $1800.00 / >=20 sets
  • Min. Order: 1 set
Product details
application:fastenerbrand:Wadley
Motor speed:1440r.pmHealth status:new
Origin:Henan, ChinaKey words:Gear cross joint production
Mechanical test report:ifPackage preview:
Beats/minute:250mmStrike Weight:25 kg
The length of the rectangle:40X40mmDimensions (L*W*H):800x410x1213 mm
Main selling points:easy to operateVideo shipment inspection:if
Weight (kg):300Supply capacity:500 sets per month
Round length:45mmWorking height:240mm
product name:Forged Power HammerType of machine:forging hammer
Core component warranty:1 yearstrength:2.2kw
Applicable industries:factory, constructionVoltage:220/380V
port:Qingdao, ShanghaiCore components:gearbox
Packaging Details:Standard import and export wooden box packaging FOR Pneumatic Hammer C41 25kg/40kg/65kg/75kg Pneumatic Hammer Power Hammer Forging Hammerpayment terms:Western Union, T/T, Moneygram, Forging Hammer
Beat ability:270 kgf/m²Warranty:1 year
Showroom location:not anyMarketing Type:normal product
Production instructions

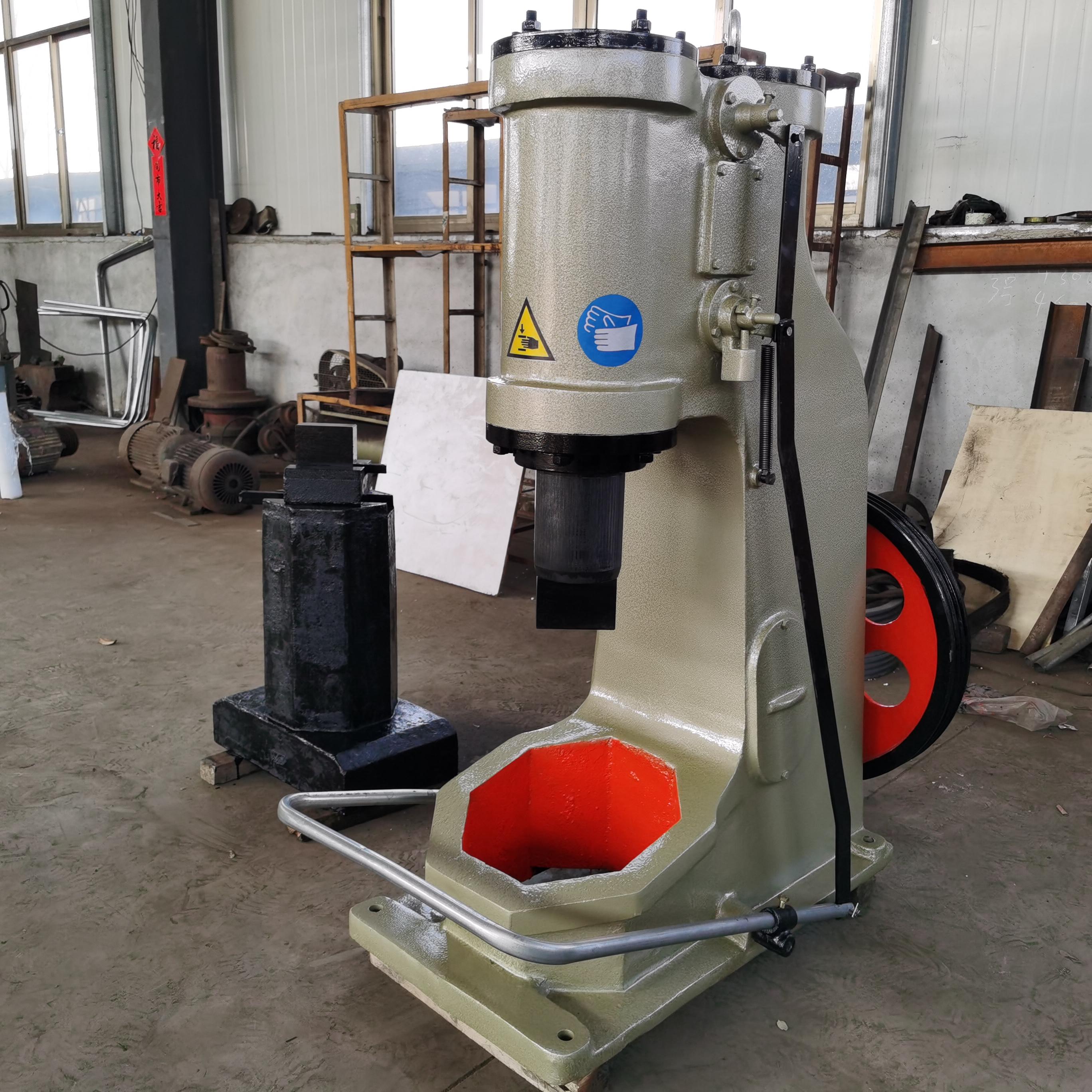

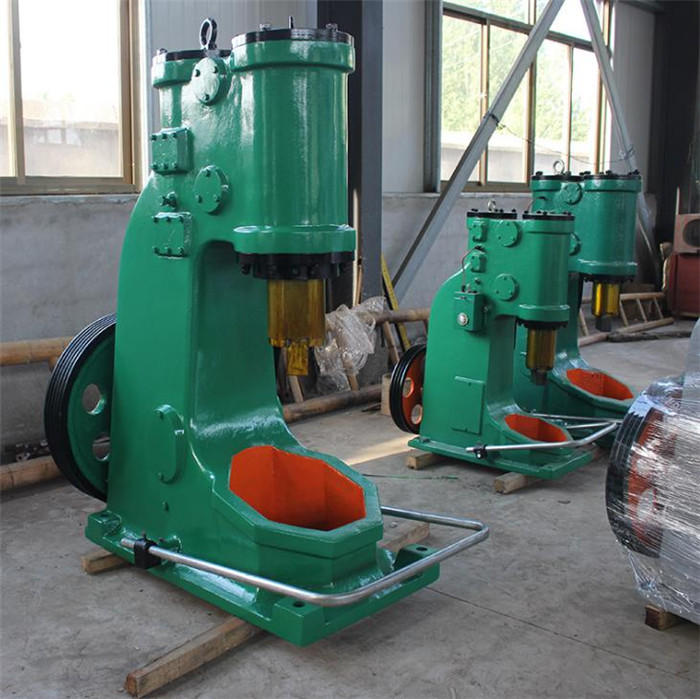

Green Air Hammer.
Blue hammer.
.
Gray hammer..

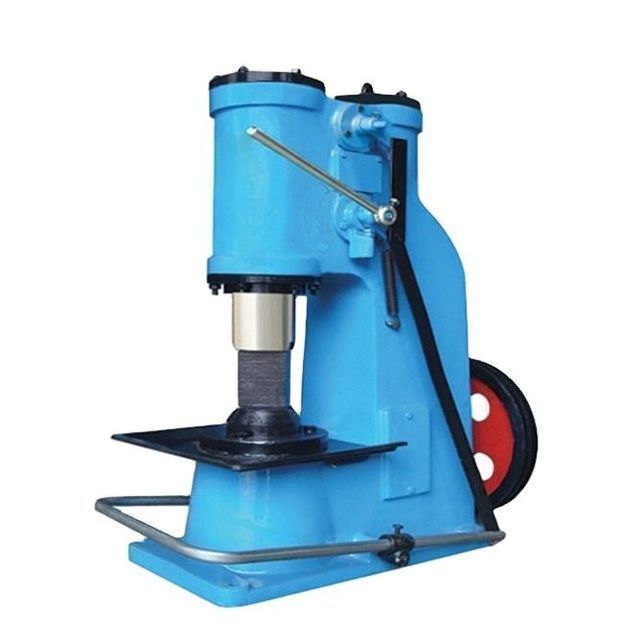

C41 25kg/40kg/65kg/75kg pneumatic hammer power hammer forging hammer

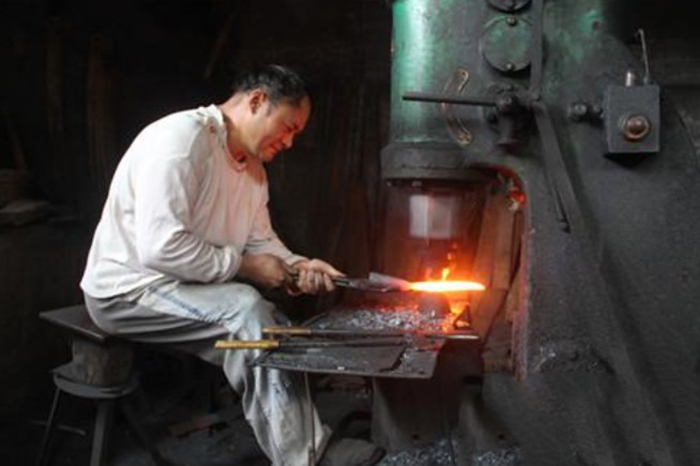

Brief introduction of blacksmith forging hammer: it is a kind of free forging equipment. The air is compressed by the compressor cylinder, sent to the working cylinder through the distribution valve, and drives the piston and hammer head to move up and down for hammering. Flexible operation. This model is suitable for all kinds of free forging, such as stretching, upsetting, punching, shearing, forging welding, twisting, bending, etc., and can be used for various free die forging. The features are as follows:
1. Driven by compressed air, the striking force and frequency can be controlled by adjusting the air pressure to meet the needs of safe production. 2. The body is made of cast iron, and the anvil of the large-tonnage air hammer is made of cast steel
3. The mechanism is simple and not easy to damage
product specification
Model
C41-20
C41-25
C41-40
C41-55
C41-75
Maximum hit energy (KJ)
0.22
0.27
0.52
0.7
1
Working area height(mm)
200
240
245
266
300
Number of hits (min)
270
250
245
230
210
Upper and lower mold size
90*50
100*50
120*50
120*55
145*65
Maximum round bar can
35
45
68
68
85
Maximum square bar can
30*30
40*40
55*55
52*52
65*65
Rated power (kw)
2.2
3/2.2
4.5
5.5
7.5
Motor speed(rpm)
1440
1440
1440
1400
1400
Product Details
Forging press design

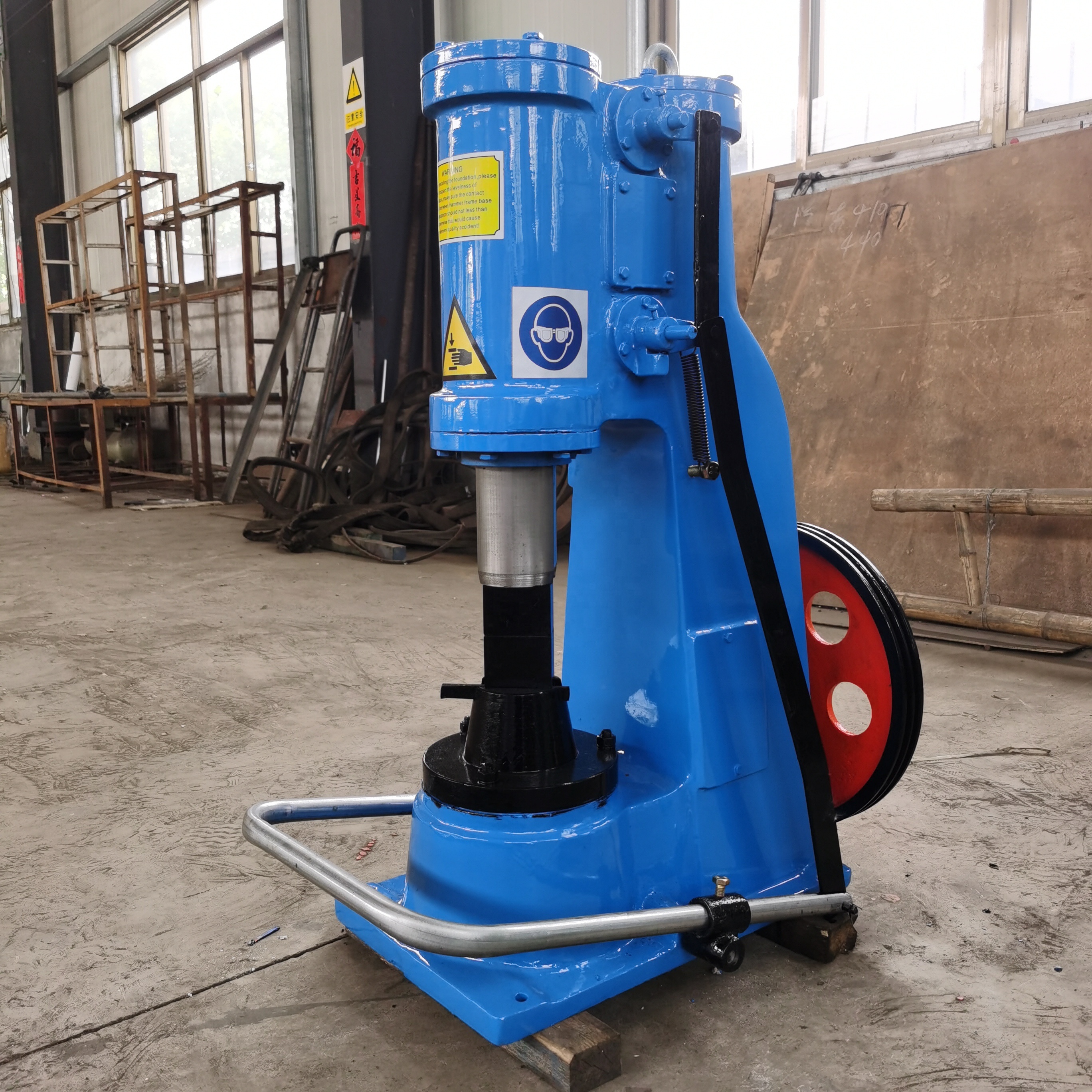

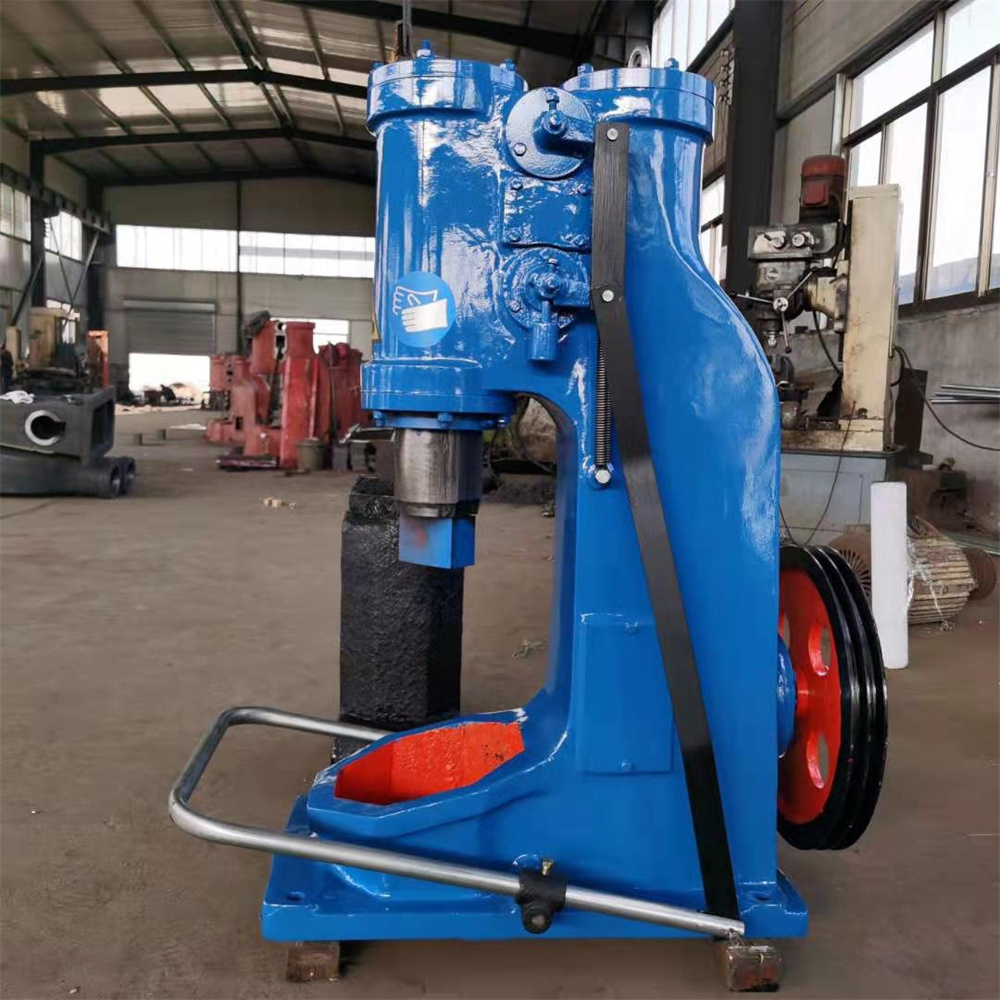

The forging pneumatic hammer is mainly composed of a frame, a transmission mechanism, a compression cylinder and a working cylinder, a compression piston, a drop piece, a gas distribution mechanism, and an anvil. The frame is the main body of the air hammer, on which the motor, transmission, working mechanism and control mechanism are installed. These mechanisms are tightly combined into a whole on the framework.

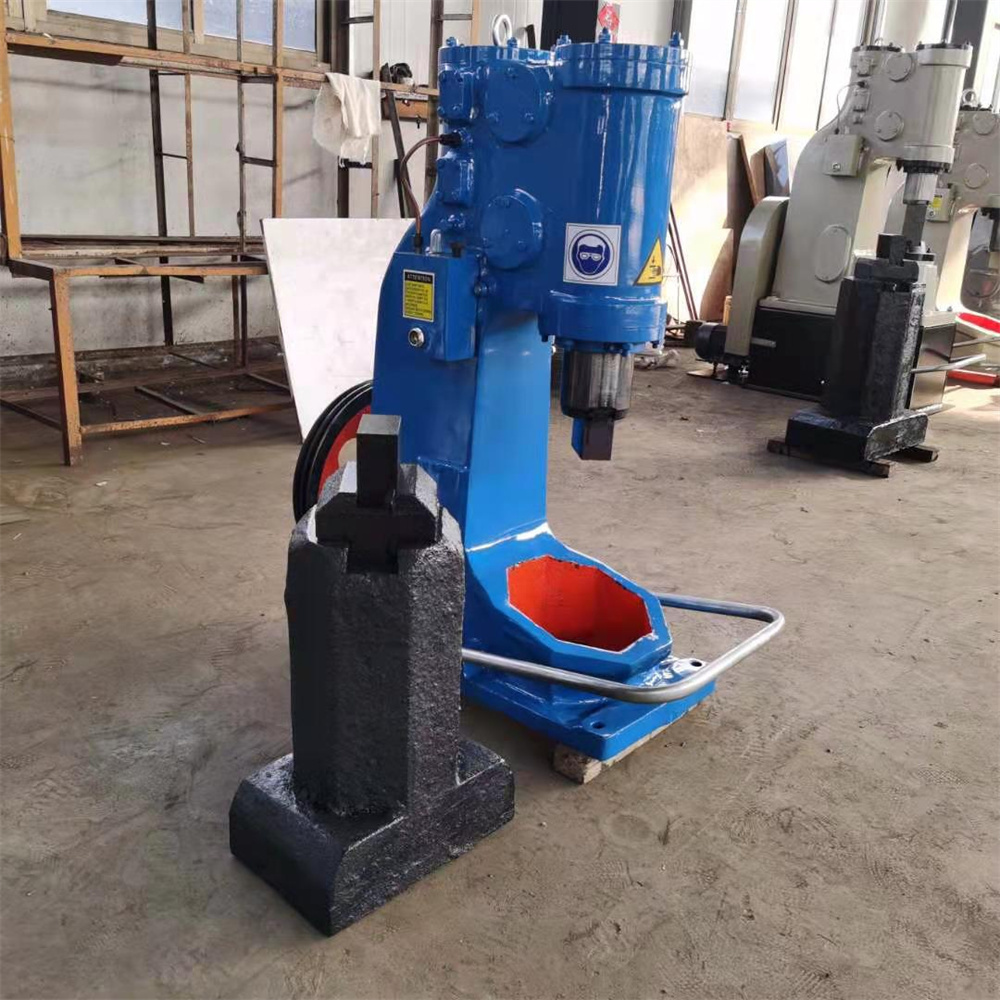

Forging hammer anvil
Forging hammer anvils can be customized. The anvil and the lower anvil are mounted on the anvil. In order to meet the stability of forging, the quality of the anvil is required to be 12-15 times the weight of the falling piece. It is installed on a solid reinforced concrete foundation with skids in the middle to eliminate vibrations caused by hammering. At the same time, the iron felt has two options of split type and integrated type, which can be selected according to needs.
Forging hammer drive mechanism
The transmission mechanism of blacksmith forging hammer includes reducer, crankshaft and connecting rod system. It converts the rotary motion of the motor into the up and down reciprocating motion of the compression piston. The pulley is driven by a motor and rotates completely. It comes with better forged foot levers.

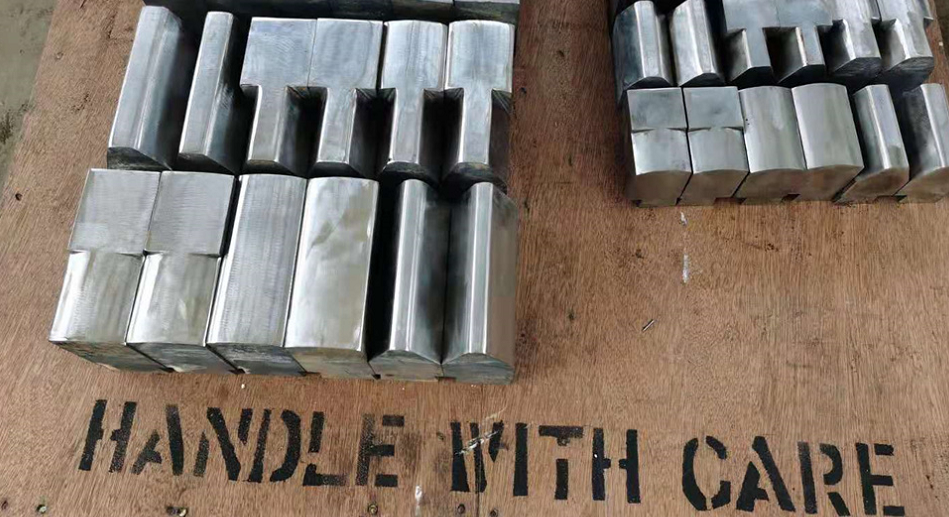

Custom hammer anvils.

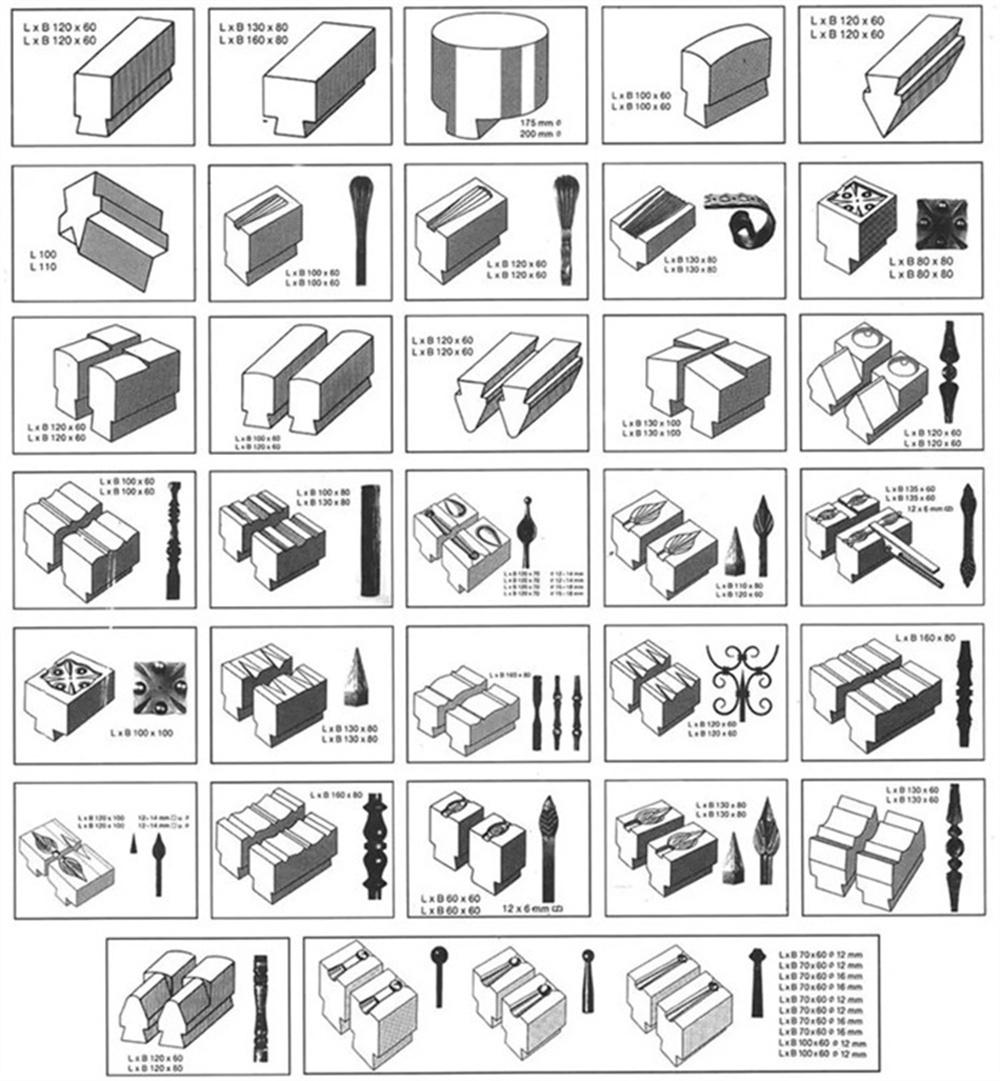

The anvil of the forging hammer can be selected according to the different products to be processed and forged. Generally, we will provide customized drawings of anvils for selection, and can also be customized according to the customized drawings of anvils provided by customers. This can largely solve the problem of forging different shapes without corresponding anvils. In the picture are some custom graphics. Please contact me for more shapes.
Features of blacksmith forging power hammer.
The hammer has strong power, low noise, simple structure, convenient operation, flexible action and convenient operation.
Installation, maintenance.
1. The machine has its own air compression mechanism, which can be operated only by powering on, without other equipment.
2. The cylinder has a lubricating device, you only need to shake the lubricating handle before starting the machine to lubricate.
3. Easy to operate. Just use the pedals or handles to do what you want. Such as click, combo, weightlifting
Hammer and more. The impact is manageable.
C41 25kg/40kg/65kg/75kg pneumatic hammer power hammer forging hammer

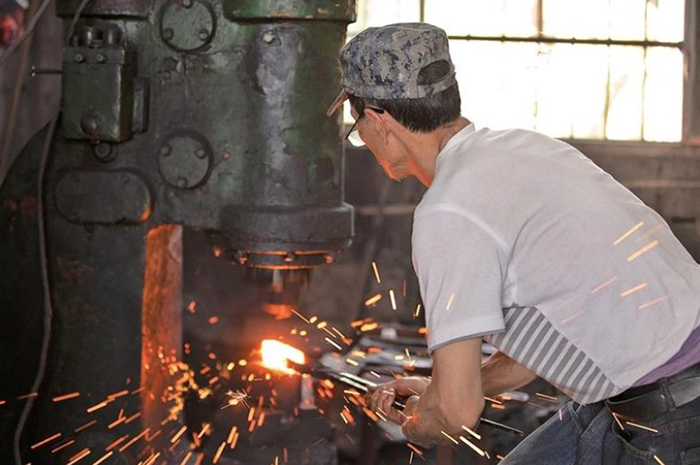

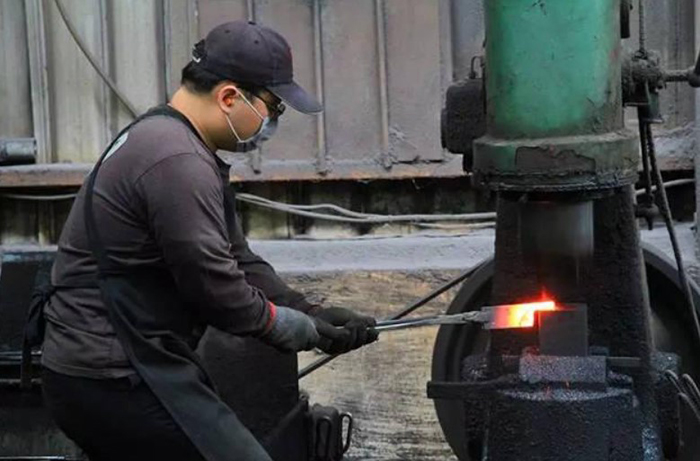

This air pneumatic hammer machine is a very useful general purpose forging tool, it has many functions such as: upsetting,

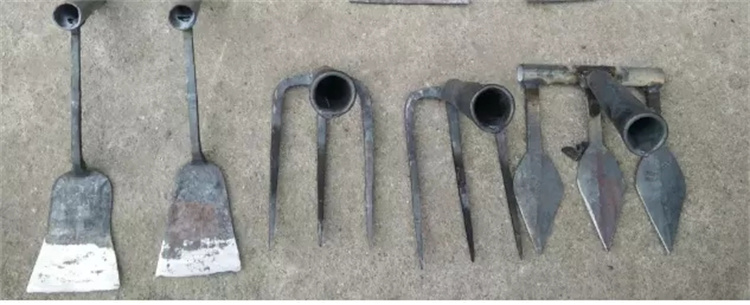

Extending, continuous upsetting, stamping, hot cutting, welding forging, twisting and bending. This machine adopts open pad dies and can undertake various die forgings. It is widely used in hardware tools, medical equipment, gold and silver processing, manufacturing, agricultural machinery and copper pipe factories, etc.
Custom Anvils

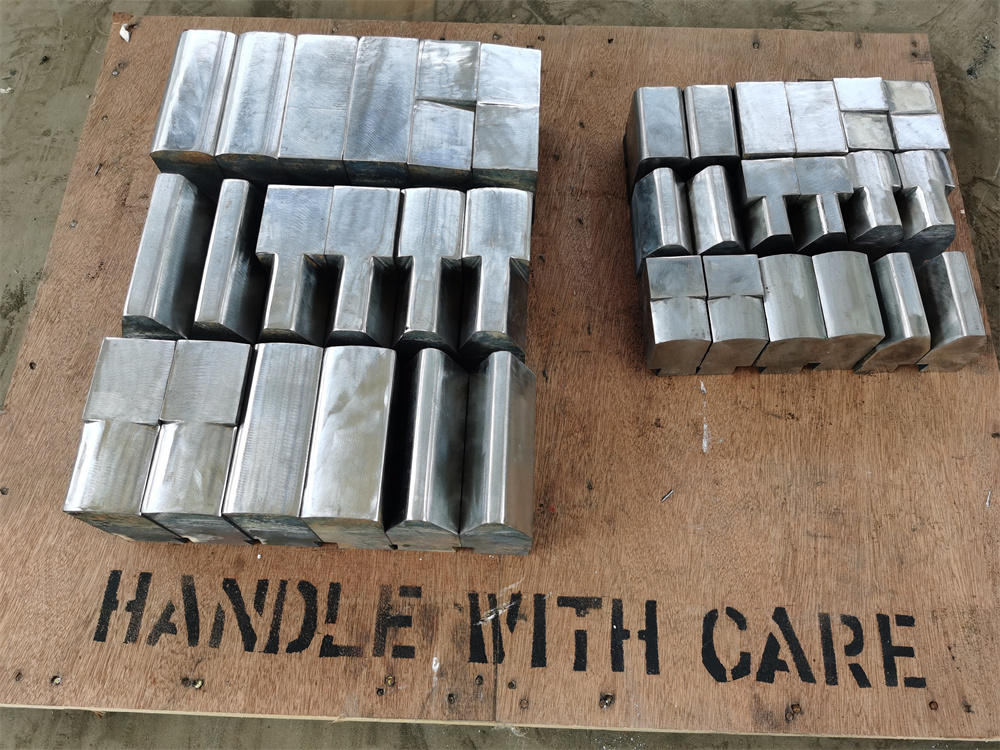

physical anvil
