Cutting type: | Hydraulic Cutting; | Packaging Detail: | Standard import and export wooden box packaging for color steel sheet roll forming machine Delivery lead time: 25 days Weight: 2 tons; |
Single package size: | 100X100X50 cm; | Voltage: | 380V; |
Condition: | New; | Showroom Location: | none; |
Tile Type: | Glazed; | Roll forming machine: | 20GP Size; |
Warranty of core components: | 1 Year; | Cutting width: | 100-1200 Mm; |
Key Selling Points: | Easy to Operate; | Rolling thinckness: | 0.3-0.8mm; |
Operate style: | Auto; | Package Preview: | ; |
Feeding width: | 1250mm; | Video outgoing-inspection: | Provided; |
Production Capacity: | 30 m/min; | Thickness: | 0.3--0.8mm; |
Machinery Test Report: | Not Available; | Raw material: | color steel sheet roll forming machine; |
Marketing Type: | New Product 2019; | Single gross weight: | 100.0 KG; |
After Warranty Service: | Video technical support,Online support; | Place of Origin: | Henan China; |
Dimension(L*W*H): | 5600*1500*1500mm; | Type: | Tile Forming Machine; |
Roller stations: | 18 Stations; | Local Service Location: | none; |
Warranty: | 1 Year; | Dia. Of Cutting Blade: | 180-200)*20mm; |
Weight: | 2100KGS; | Certification: | ISO; |
Selling Units: | Single item; | Name: | color steel sheet roll forming machine; |
Brand Name: | Wadley; | Control system: | PLC(imported Brand); |
Use: | WALL; | Applicable Industries: | Building Material Shops,Construction works ; |
After-sales Service Provided: | Online support,Video technical support; | Core Components: | Motor; |

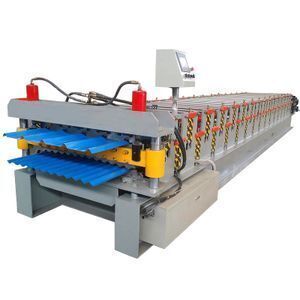

Corrugated iron sheet roofing tile making machine color steel sheet roll forming machine
color steel sheet roll forming machine Usage& Drawing
♠color steel sheet roll forming machine can produce two designs,this machine process galvanized steel and color steel sheet,thickness is 0.3-0.7mm.
♠This color steel sheet roll forming machine the best advantage is save space.But three layers can not working in the same time.PLC can choose working by up layer,or down layer.
♠We can make color steel sheet roll forming machine as your request, our engineer will make drawings before you order.If you have drawing,please offer it to us,our engineer will confirm it and will give advise.
♠We are professional in color steel sheet roll forming machine,we have more than 20 years in this area.
color steel sheet roll forming machine Configuration
color steel sheet roll forming machine Producing process:
Material supporting frame→Molding core→Hydraulic system→Automatic control system→Automatic shearing maechanism→Roll forming receiving tables
Part 1: Metal sheet feeding
On this part have design of 2 handles: used to adjust width of metal sheet to avoid run left or right, can fix position well.
Part 2: Color steel tile roll forming/molding machine
Forming machine is main body of tile machine part, including shaft, wheels. Each type, rows of shaft and wheels not same. Usually Dia.70mm of shaft.
Part 3: Metal sheet cutting
Cutting part through heat-treating processing, durable and have long service lift. Could cut different thickness of metal sheet from 0.3mm-1mm. Also can be customized as per customer request.
Item |
Parameters |
Processing Material |
PPGI,GI |
Processing Thickness(mm) |
0.6-1.6mm |
Main Frame/Middle plate |
H400 Steel Beam/ 20mm Steel plate |
Material of Rollers |
45# steel, with hard chrome coated |
Diameter of Shaft |
100mm |
Number of Rollers |
26 stand rollers |
Production Speed |
0-14m/min |
Roller Driven |
Decelerating Motor+20A Chain Transmission |
Cutting Model |
Hydraulic Profile Cutting |
Length Measurement |
Encoder |
Control Style |
PLC |
Operation Model |
Button + Touch Screen |
Total Power |
27.5kw |
Voltage |
380V 50HZ or at buyer's request |
Testing Material |
Q195 |
Optional equipment:
General decoiling support with different tonnage
Hydraulic/manual automatic decoiler
Frequency changed | Used to adjust speed | |
PLC system | PLC have different processing can be customized, like Simens, Schneider, Omron etc. | |
Counter | Mainly to counting piece of tiles. If customer want produce 1 shape tile 5 pieces, counter will have memory to give signal to PLC, after 5 pieces reached, stop automatically, very automated. | |
Limit switch | Limit switch used to control length of metal sheet. If 1 meter be setted up in PLC processing, then limit switch give signal when have 1 meter of tile, prepare next step of cutting. |
