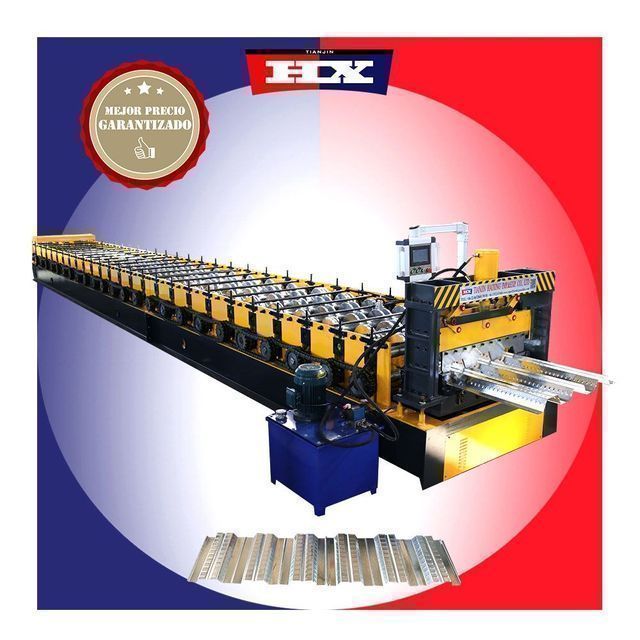

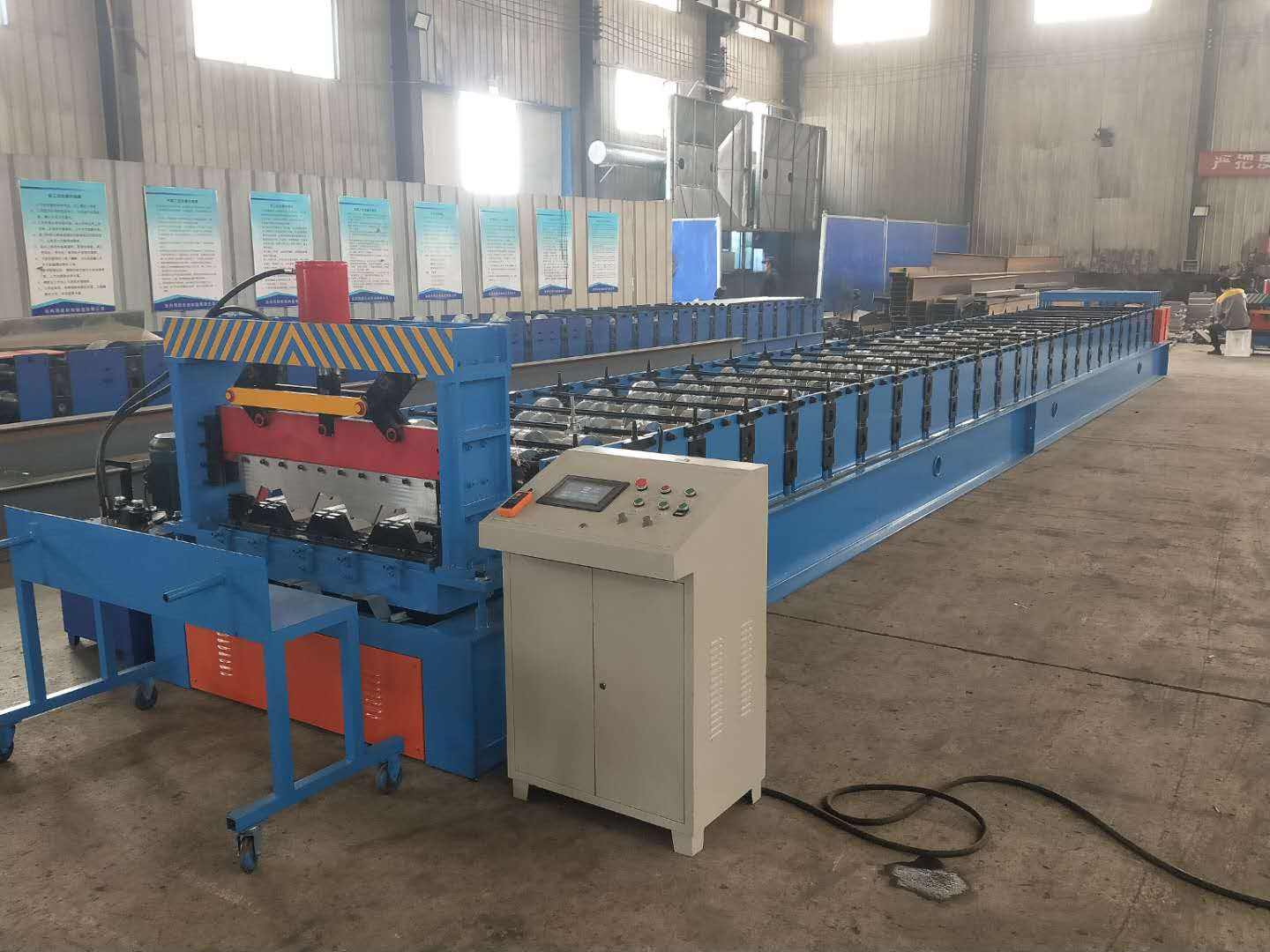

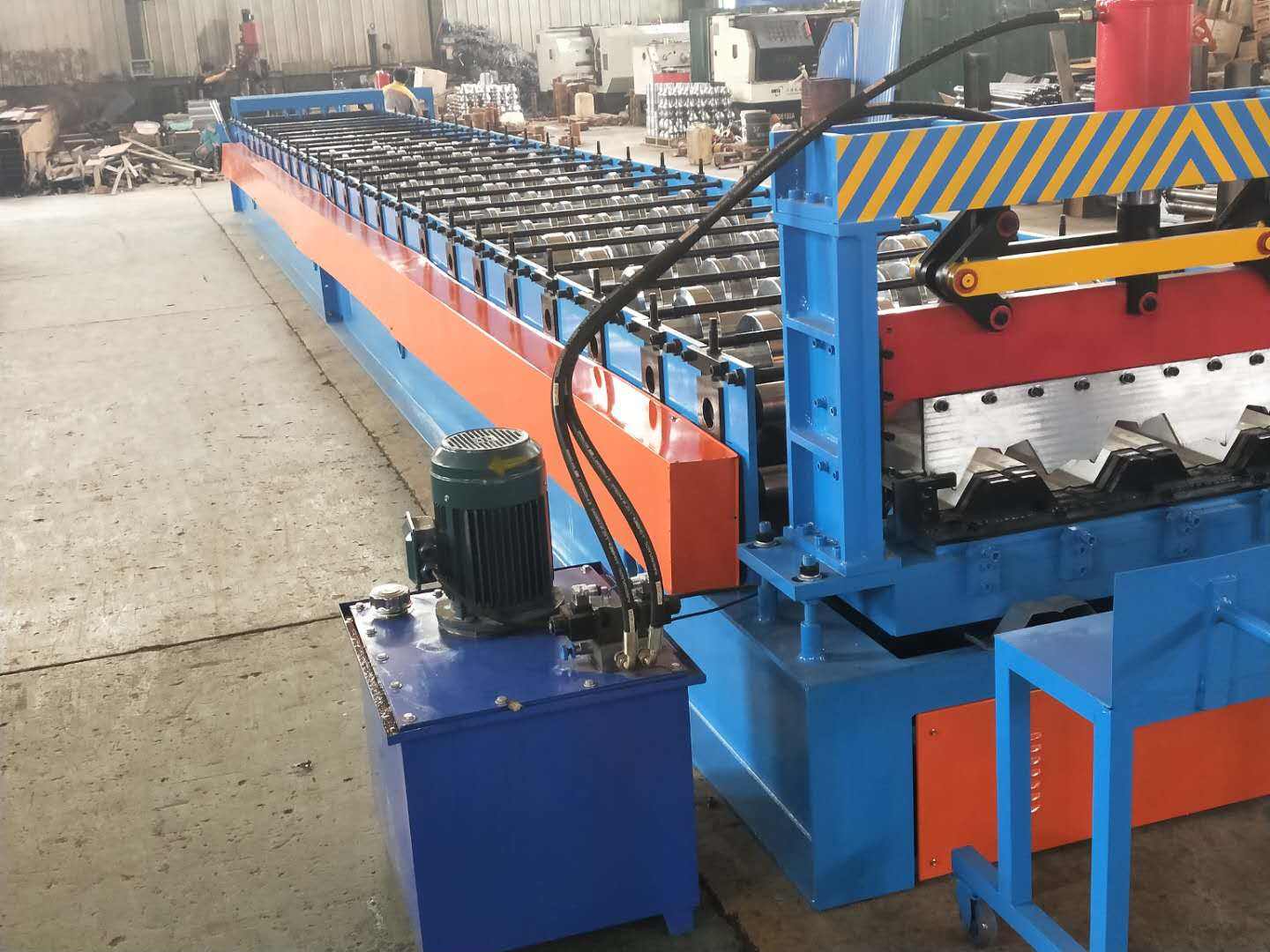

Galvanized floor deck forming machine

Supplier: Haixing (tianjin) Imp. & Exp. Co., Ltd.
Region: Tianjin, China
Contact: Ms Alin Zhao
Price: $29000.00 / 1 - 4 sets
$27500.00 / 5 - 9 sets
$25500.00 / 10 - 19 sets
$15000.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	Canada, Turkey, United States, Germany, Philippines, Brazil, Peru, Indonesia, Mexico, Spain, Morocco, Kenya, Chile, Colombia, Algeria, Sri Lanka, South Africa, Nigeria, Australia	Packaging Details:	1. A 40-foot container is required; 2. Suitable for sea transportation; 3. The main body of the roll forming machine will be packed into the container naked and covered with plastic film. 4. Fix the machine inside the container with steel wires to prevent damage when shaking at sea. 5. Spare parts will be packed into cartons. 6. The receipt form is put into the carton. 7. Manual uncoiler bare bag
Core component warranty:	2 years	Supply capacity:	300 sets per month
Origin:	Hebei china	Feed width:	1250mm
Cutting type:	Hydraulic guide post cutting	Video shipment inspection:	if
Shaft material:	Premium 45 Forged	Package preview:
port:	Tianjin	payment terms:	L/C, Western Union, D/A, T/T, MoneyGram, Paypal
Main selling points:	Famous brand PLC and motor	Voltage:	380V/220V/240V/415V
brand:	China	weight:	12500 kg
Marketing Type:	New Products 2023	Production capacity:	10-15m/min
use:	ground	Service life:	10 years
Control System:	Taiwan Delta	Coil:	45# high-grade steel chrome
Warranty:	2 years	product name:	Floor Deck Forming Machine
usage:	Floor Deck	Rolling Thickness:	0.8-1.5mm
Main frame:	450H steel	Dimensions (LWH):	12.5m1.5mm1.6mm
Tiles Type:	steel	Mechanical test report:	if
Core components:	Pressure vessels, motors, bearings, gears, pumps, gearboxes, engines, PLCs	Applicable industries:	Hotels, building supplies stores, manufacturing plants, machinery repair shops, construction, energy and mining
Cutting blade material:	Chrome 12 Mobile	type:	tile forming machine
thickness:	0.5--1.2mm	Health status:	new

Company Profile

Our machines (roofing machine china company manufacturers deck roll forming machine for sale) have a long service life, are easy to operate and easy to use, and we provide lifetime network after-sales service. A strong behind-the-scenes team makes your purchase worry-free.

product	Galvanized floor deck forming machine
Model	Different ones for you to choose (Our team of engineers and designers are at your service!!) Free of charge! ! !
Substrate	GI/GL, PPGI/PPGL, aluminum coil
thickness	0.5mm-1.2mm
effective width	750mm
Roller material	45 # steel
color	All colors (standard international colors) or colors from customer samples
brand	China
frame	450H steel
strength	11*2+4KW
productivity	10-15m/min
Machine side panel	20 mm
Cutting & Hydraulic	Type: Double guide post hydraulic cutting. Hydraulic pump station: 4kw Brand: LI CHAO) Blade: Cr12mov Hrc: 58-62
wheel	45# steel, surface heat treatment chrome plating, hardness HRC 58-60
Shaft diameter	85mm
Shaft material	Solid shaft, high quality 45# forged steel, with non-return pad
chain	2 inches
Voltage	220V/50HZ/1Phase; 380V/50HZ/3phase/, 415V/50HZ/3phase, 440V/50HZ/3phase, or as required
Model	Different ones for you to choose (Our team of engineers and designers are at your service!!) Free of charge! ! !
Hydraulic power station	gear pump
reducer	8# gear reducer
hydraulic	10-12MPa according to oil pump and pump motor
cutting method	Hydraulic linkage cut off
color	All colors (standard international colors) or colors from customer samples
Length Tolerance	±2mm
Cutting tolerance	±1mm

Roofing Machine China Company Manufacturer For Sale Deck Roll Forming Machine

Product Description

Name: Manual Uncoiler

1. Used to support rotatable and unrollable steel coils. 2. Bearing capacity: 5T 3. Inner diameter: 500-508mm

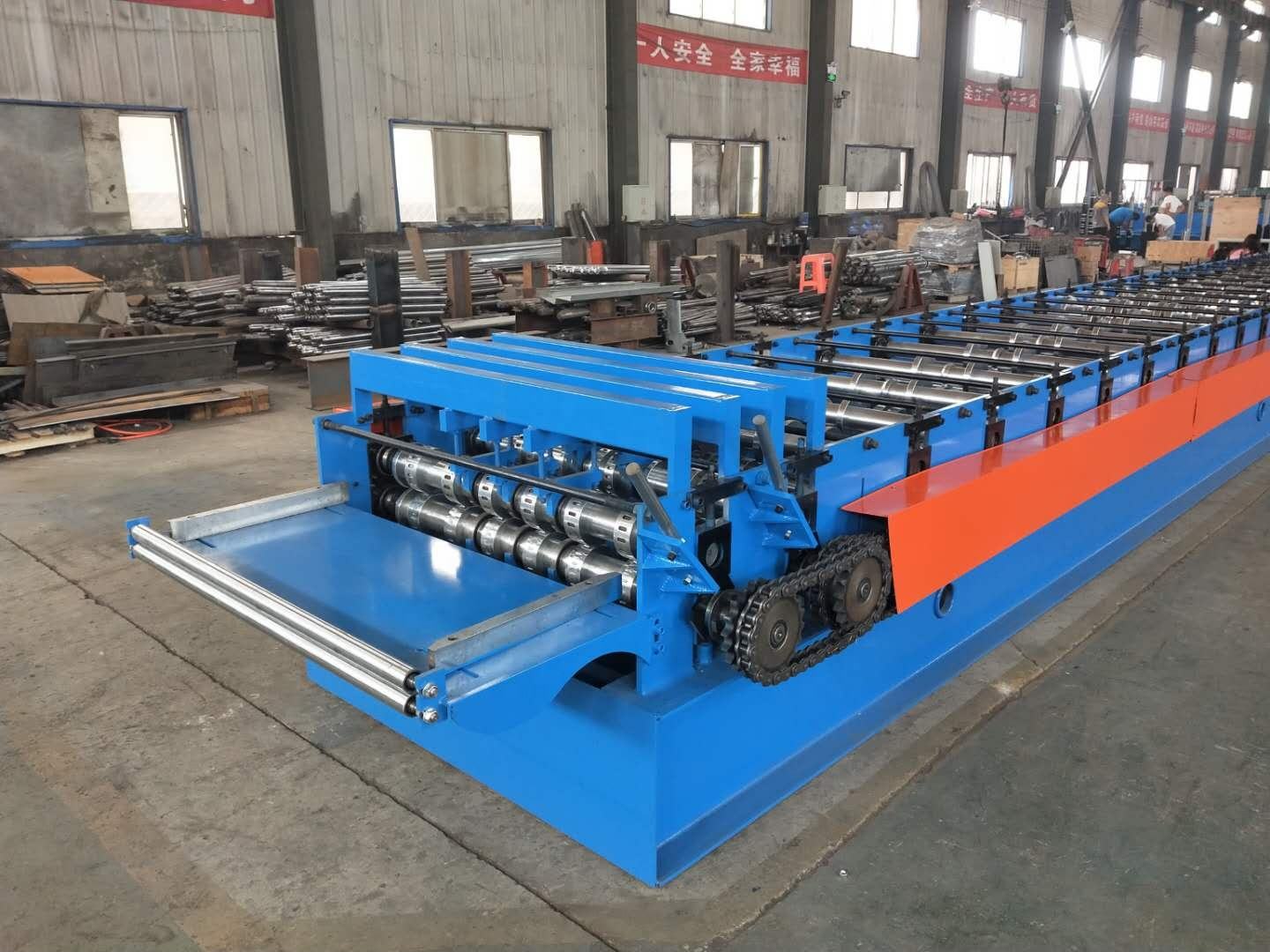

Name: feeding table

1. Function: put the board into the machine 2. Benefits: can ensure the flatness of the board 3. Hand knife: can save materials

Name: Main roller

1. Material: 45# high carbon steel 2. Forging, polishing, heat treatment, chrome plating. The wheels are smooth and hard, and will not scratch the board.

Name: Computer control cabinet

1. Brand: LICHAO, DELTA, SIEMENS. (according to customer inquiry) 2. Operating language: Chinese/English/Russian/Spanish

Name: Power supply of hydraulic station

Power of hydraulic station: 4Kw, the brand is Shanghai Lichao

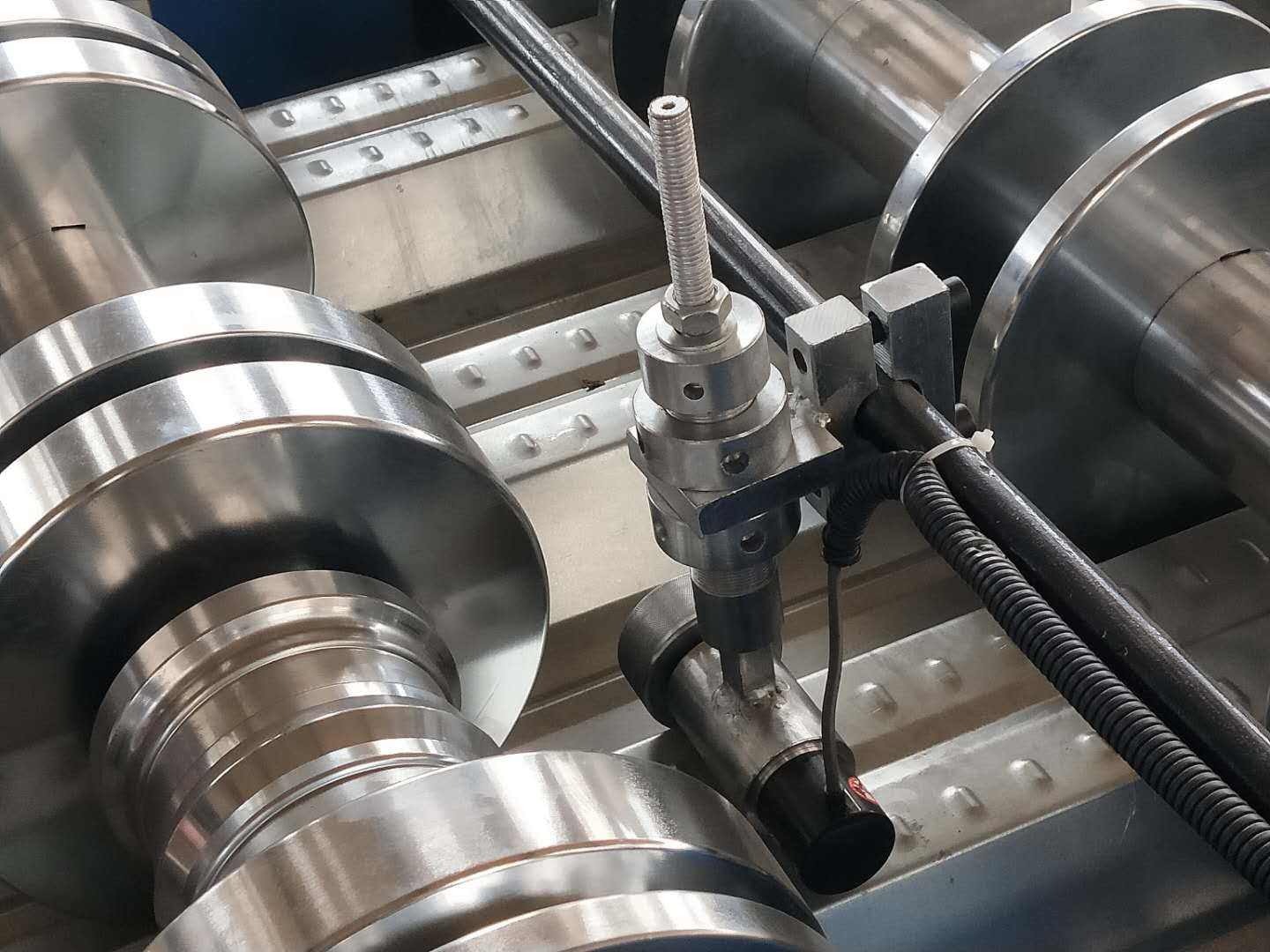

Name: cutting head

The blade is cut by laser 1. The material is Cr12 mov.16mm double guide post + hydraulic drive 2. Guide post: 45# steel is quenched before heat treatment, which can ensure the surface finish and hardness.

Our factory

our certificate

our service

Project case

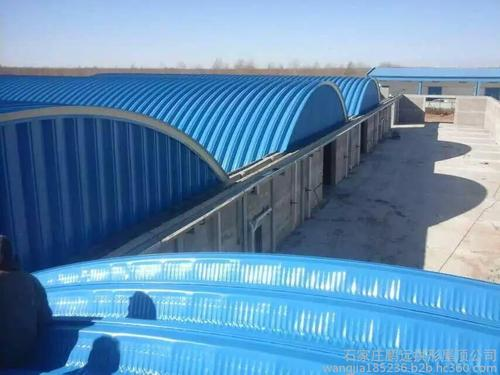

Color steel forming machines are widely used in various buildings.

Industrial plants, villages, warehouses, supermarkets, hotels, exhibitions, home buildings, shopping malls, etc. It has the advantages of beautiful, classic and elegant taste.
