Wadley Manufacturer Y3150 CNC YK3150 Gear Cutting Hobbing Machine

Product details
Max diameter cutting straight Spur gear:350mm;The changeable Diameter of hob spindle:22 27 32mm;
Certification:CE;Port:Qingdao.,Shanghai;
Diameter of workingtable hole:60mm;Showroom Location:None;
CNC or Not:CNC;Applicable Industries:Manufacturing Plant;
Dimension(L*W*H):2000*1100*1900;Core Components:PLC,Gear;
Power (kW):5.5kw;After Warranty Service:Video technical support,Online support,Spare parts;
Key Selling Points:High Rigidity;Warranty:1 Year;
Supply Ability:30 Set/Sets per Month;Voltage:220/380V;
Brand Name:Wadley;Main motor speed:1430 r/min;
Package Preview:;Max length of cutting:240mm;
Weight (KG):2200;Video outgoing-inspection:Provided;
Machinery Test Report:Provided;After-sales Service Provided:Online support,Video technical support,Free spare parts;
Marketing Type:Ordinary Product;Payment Terms:L/C,Western Union,T/T,MoneyGram;
Warranty of core components:1 Year;Diameter of worktable mandrel:30mm;
Place of Origin:Henan China;Max diameter of hob:120mm;
Local Service Location:None;Type:Gear Hobbing Machine;
Max working module:5mm/6mm;Condition:New;
Packaging Detail:Standard import and export wooden box packaging;

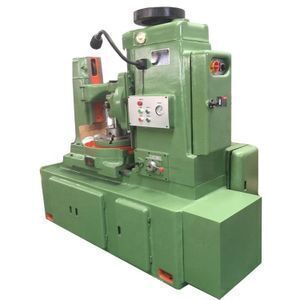

Wadley Manufacturer Y3150  CNC YK3150 Gear Cutting Hobbing Machine

Product Description



Product Introduction:

Y3180/Y3150 series gear hobbing machine is fixed by vertical column and adopts the traditional layout of horizontally moving working table, suitable for processing cylindrical gears, worm wheel and short spline shaft in bulk, in package, or in single workpiece. The machine has the following characteristics:

Raised height for vertical column and increased stroke: The vertical column is made higher (180/130mm increased axial stroke in head slide than Y3180/Y3150 of the same kind) to enable processing of larger tooth width.
Service life of cutting tools is increased by electric tool leap. The longest stroke reaching 180mm, such electric tool leap takes longer hob and greatly increases life the hob.
High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.
Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.
Backlash balancing cylinder is involved as the tool post moves in the axial direction, effectively reducing the space between lead screws and eliminating vibration.
Convenient hydraulic powered structure reduces the non-cutting time as well as the times to use the cutting tools.
External support of the small column tailstock adopts the hinge structure and can be easily opened outward, convenient to hang components of larger diameters(Y3180).

Product Features:
1, The machine is suitable for large and single production of cylindrical spur and helical gears, worm gears and sprocket.

2, The machine is characterized by good rigidity, high working accuracy, easy in operation and maintain.
3, The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.
4, According to the special needs of users, can be raised or extended tool to expand the scope of the processing machine accuracy.
5, Easy in operation and maintain.



 Machine Parameter



Model

Y3150

Y3180

Max workpiece diameter(with rear column/without rear column)

350mm/500mm

550mm/800mm

Max hobbing modulus

8mm

10mm

Max Processing Width

250mm

300mm

Min processing gear

Z/K=6

Z/K=8

Max vertical travel of tool post

300mm

350mm

Max swiver angel of tool post

±240°

±240°

Distance between cutter axis and worktable

235-535mm

235-585mm

Spindle taper

Morse 5

Morse 5

Hob diameter

160mm

180mm

Max axial movement of cutter

 --------

50mm

Hob abor diameters

Φ22,Φ27,Φ32MM

Φ22,Φ27,Φ32,Φ40MM

Distance between hob axis center and worktable

30-330mm

50-550mm

Worktable aperture

80mm

80mm

Taper bore of workpiece mandrel

Morse 5

Morse 5

Worktable diameter

520mm

650mm

Spindle rotate speed and range

9Level 40-250R/Min

8Level 40-200R/Min

Rapid travel speed of tool post slide

≤540MM/Min

≤540MM/Min

Worktable rapid moving speed

≤500MM/Min

≤500MM/Min

Distance between worktable

400-600mm

400-600mm

Axial feed rate and degree

12Level 0.4-4MM/R

12Level 0.4-4MM/R

main motor power and synchro-speed

N=4Kw 1500R/Min

N=5.5Kw 1500R/Min

Machine weight

4500kg

5500kg

Overall dimension

2440*1370*1800MM

2752*1490*1870MM
