Automatic gear hobbing machine 3180 gear hobbing machine phfauter gear hobbing machine

Product details
CNC or not:CNCproduct name:Y3180
Marketing Type:normal productPackage preview:
Packaging Details:standard wood packagingMachine Dimensions:2752*1490*1870mm
Supply capacity:3000 sets per monthFunction:Hobbing
Main selling points:competitive priceShowroom location:UK, US, Italy, France, Germany, Philippines, Brazil, India, Russia, Thailand, Malaysia, Australia
Video shipment inspection:ifstrength:5.5KW
Origin:Henan, ChinaPower (kW):11000
type:Hobbing machineVoltage:220v/380v or customized
Core component warranty:1 yearHealth status:new
Weight (kg):15000weight:5500 kg
Mechanical test report:ifcolor:customer request
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gearNumber of teeth processed per minute:8
maximum. Processing width:300mmport:Tianjin, Qingdao, Shanghai, Ningbo, Shenzhen
Applicable industries:Manufacturing plants, machinery repair shopsmaximum. Processing module:10mm
payment terms:Western Union, D/P, D/A, T/T, MoneyGramWarranty:1 year
Product Description

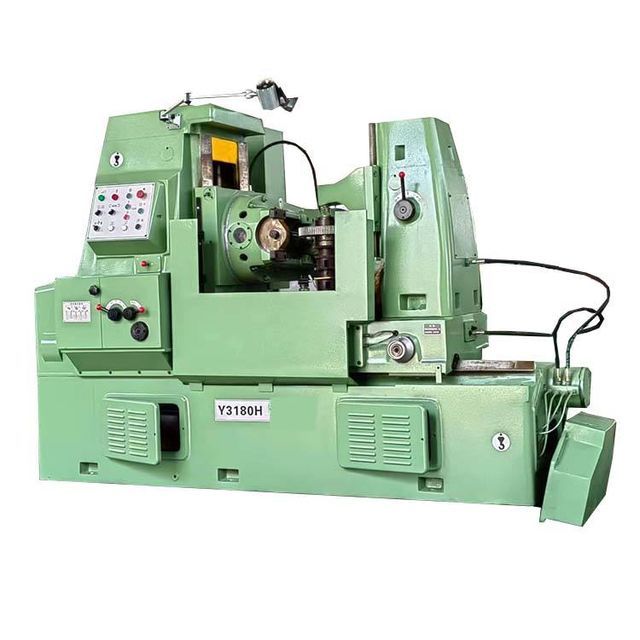

Y3180H Hobbing Machine
Ordinary gear hobbing machines can process straight and helical spur gears, worm gear sprockets and short spline shafts, and are suitable for single-piece, small-batch or mass-production factories. The machine tool has excellent structure, strong rigidity, good working precision, convenient operation and simple adjustment; it can work in down milling or up milling. Gear hobbing machines are widely used in various machinery manufacturing industries such as automobiles, tractors, machine tools, engineering machinery, mining machinery, metallurgical machinery, petroleum, instrumentation, aircraft, and spacecraft. Gear processing machine tools are used to process various cylindrical gears, bevel gears and other toothed parts. There are many types and specifications of gear processing machine tools. There are small machine tools for processing gears with a diameter of several millimeters, large machine tools for processing gears with a diameter of more than ten meters, and high-efficiency machine tools suitable for mass production. Precision gears are machined with high precision. The machine tool is equipped with automatic shutdown structure, safety device and automatic lubrication system. According to the special order of the user, it can be equipped with imported hydraulic components; it can also provide a tangential tool holder to process the worm gear with tangential feed.
feature
1. The machine tool is equipped with a hydraulic balance device to balance the cutting resistance of the tool post. 2. It is easy to adjust, with an automatic parking mechanism and an automatic lubrication system. 3. The tailstock adopts hydraulic lifting, which is convenient, fast and flexible. 4. The machine tool has sufficient rigidity. When hobbing, it can be processed to the required tooth depth at one time, or it can be cut in multiple times (layered cutting). When cutting in layers, each gear must be shifted according to a certain rule. According to the cutting amount, select the appropriate cutting speed, feed rate and reasonable cutting depth, and install the workpiece accurately. This machine tool can cut gears with seven grades of precision.
Specification
Name
Y3180H
maximum. Workpiece diameter
Smaller column 550mm
Without small column 800mm
maximum. processing module
10mm
maximum. Processing width
300mm
Number of teeth processed in minutes
8
maximum. Tool seat vertical travel
350mm
maximum. Back Angle of Tool Holder
240°
Distance from hob axis to operating platform
235-585mm
Spindle taper
MT5
Allows hob installation
Maximum diameter 180mm
Minute length 180mm
maximum. Hob axis movement
50mm
Diameter Hob Arbor
φ22, φ27, φ32, φ40mm
Hob axis to operating platform axis distance
50-550mm
Operating platform hydraulic unit rapid movement distance
50mm
Operating Platform Aperture
80mm
Workpiece Spindle Seat Hole Taper
MT5
Diameter operating platform
650mm
Spindle speed and speed range
8 gears 40-200r/min
Rapid movement speed of tool holder
≤540mm/min
Operating platform fast moving speed
≤500mm/min
The distance from the operating platform surface to the end surface of the knife holder
400-600mm
Axis feeding amount step size and feeding amount range
12 steps 0.4-4mm/r
Main motor power and synchronous speed
5.5kw 1500r/min
Shaft speed motor power and synchronous speed
1.1kw 1500r/min
Operating console fast motor power and synchronous speed
0.55kw 1500r/min
Hydraulic pump power and synchronous speed
1.1kw 910r/min
approximate mass of the machine
5500 kg
Machine Dimensions (L×W×H)
2752×1490×1870mm

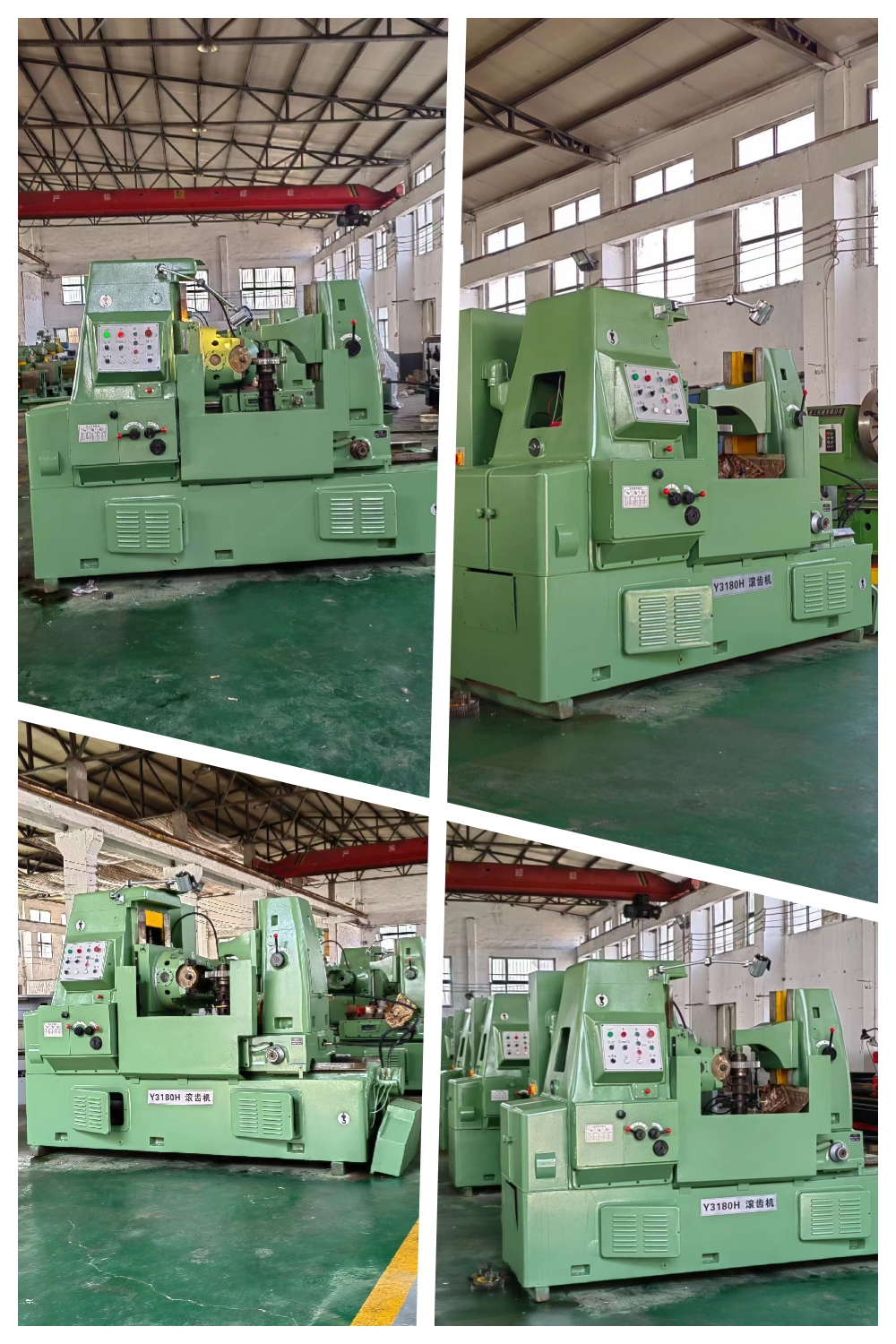

Workshop overview

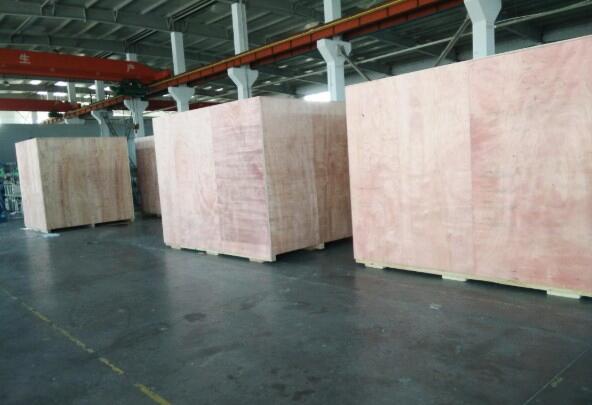

Packaging and Shipping
