Number of gear teeth (max): | 5-1000 | harbor: | Shanghai |
Max module: | 8mm | Core Components Warranty: | 5 years |
port: | Shanghai | Power (kW): | 15Kw |
Supply capacity: | 10 sets per month | Weight (kg): | 8000 |
payment terms: | L/C,D/P,D/A,T/T | place of origin; place of origin: | Shaanxi, China |
Showroom location: | Philippines, Russia, South Africa, Ukraine | Warranty: | 1 year |
Card: | Aurang | Main selling point: | competitive price |
Mechanical test report: | if | Package: | Wooden case or customized |
CNC or not: | CNC | brand: | Aurang |
Applicable industries: | Manufacturing plants, mechanical repair shops, construction engineering, energy and mining, automobile industry, motorcycles, construction machinery, | Video external inspection: | if |
The maximum diameter: | 320mm | Origin: | China |
Minimum order quantity: | 1 set | Voltage: | 380V |
Marketing Type: | normal product | Dimensions (L*W*H): | 2000x1060x2200mm |
Health status: | new | product name: | Hobbing machine |
Core components: | PLC, bearing, gearbox, CNC control system | Packaging Preview: | |
Numbering. : | YK3132 | type: | Hobbing machine |
Packaging Details: | Wooden case or customized | | |
Product Description

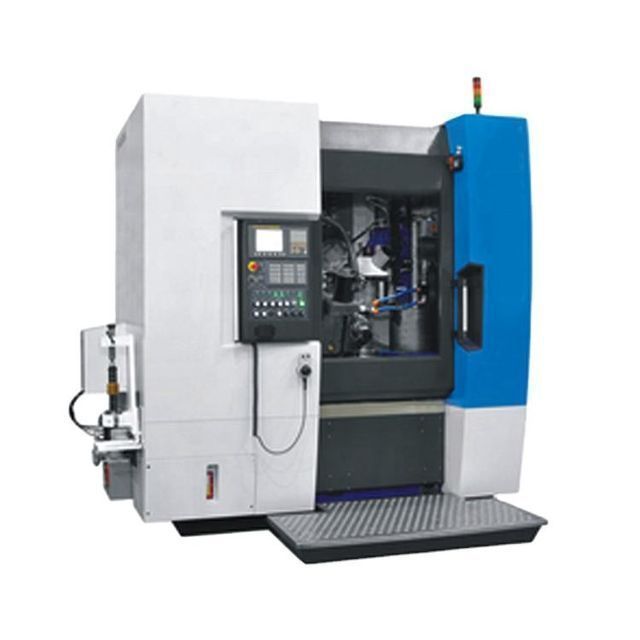

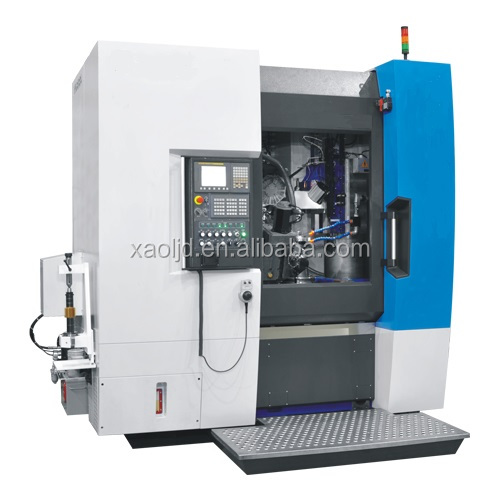

YK3132 gear hobbing machine CNC for sale
Product Description:
YK3132CNC gear hobbing machine is a high-efficiency, high-precision and high-performance machine tool. It is designed for medium gears. State-of-the-art technology for high productivity and machining accuracy. In addition to its excellent operability and maintainability, the machine can be expanded with design options to easily build automated production lines. These advantages can help you produce quality products. The controller of the machine is a FANUC Series 31i. The machine tool includes five CNC axes: horizontal feed axis X, vertical feed axis Z, turret rotation axis A, turret movement axis Y, and table C. Therefore it is a highly CNC machine tool. The main shaft is a high-power AC servo motor, and the motor is equipped with an encoder, which can detect the speed and phase of the main shaft. So the table and the spindle can rotate at the same time.
Hobbing machines can be channeled/locked automatically. It can also be rotated and angled within ±45 degrees and locked.
The front and rear of the hob frame are equipped with water tanks, which greatly facilitates the installation of the hob. The worktable contains a high-precision double-lead worm gear and a hydraulic damping and anti-backlash device. Everything can guarantee the quality of the product.
The CNX system has a friendly interface, clear layers, convenient parameter input and simple operation. The gear hobbing process is controlled by the numerical control system, and the single-cut or double-cut gear hobbing cycle can be completed in one programming, with various cutting methods and position compensation. Various gear cuttings are also possible, such as: spur, helical, drum taper and double gear cutting.
The cover is fully closed, firm and beautiful. The cooling system is a high-flow cooling pump. This machine is equipped with electrostatic mist suction device. Clean and healthy at work.
Specification
maximum. diameter | Ø320mm |
maximum. module | 8mm |
maximum. gear teeth | 5-1000 |
maximum. Helix angle | ±45 degrees |
maximum. Tool diameter | Ø150mm |
Shank diameter | Ø22,27,32,40 |
Spindle speed range | 75-750n/min |
maximum. table speed | 60n/min |
Spindle motor power | 15Kw |
axis | positioning accuracy | Repeatability | reverse error |
X-axis (300mm) | 0.01 | 0.0056 | 0.008 |
Y-axis (180mm) | 0.012 | 0.002 | 0.003 |
Z axis (300mm) | 0.012 | 0.0066 | 0.007 |
According to GB/T17421.1-2000 | | | |
According to the special requirements of users, we can design and manufacture helical gears, rack accessories processing accessories, gear processing accessories, deburring devices and automatic feeding devices. This machine tool is especially suitable for mass production of automobiles, motorcycles, construction machinery, production of professional gears and various production batches in the machine tool industry.
