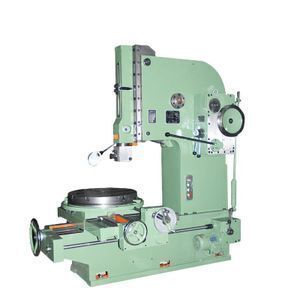

High Precision Pipe Slotting Machine for Metal Slotting Machine B5032

Supplier: Henan Wadley CNC Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Wadley Li
Price: $7200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	Customer Requireme;	Supply Ability:	5 Set/Sets per Month;
Dimension(LWH):	3640x1550/1850mm;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Key Selling Points:	Automatic;	Weight:	4100;
Warranty of core components:	1 Year;	Packaging Detail:	Standard import and export wooden box packaging;
After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;	Max. stroke of RAM:	340;
Warranty:	1 Year;	Ram motion frequency:	20.32.50.80;
Slotting legth:	320;	Power (kW):	1.5;
Applicable Industries:	Building Material Shops,Construction works ,Energy & Mining;	Showroom Location:	none;
Condition:	New;	Place of Origin:	Henan China;
Machinery Test Report:	Provided;	Brand Name:	Wadley;
Core Components:	Bearing,Gear;	Marketing Type:	Ordinary Product;
Video outgoing-inspection:	Provided;	Port:	Qingdao.,Shanghai;
After-sales Service Provided:	Online support,Free spare parts;	Local Service Location:	none;

High Precision Pipe Slotting Machine for Metal Slotting Machine B5032

Product Description

Product main technical Specifications:

Specification	Unit	B5032	B5020
Max. stroke of RAM	mm	340	220
Ram maximum slotting length	mm	320	200
Ram motion frequency	times/min	20.32.50.80	32.50.80.125
Ram tilt angle	°	0-8	0-8
Ram vertical adjustment distance	mm	315	230
Cutter head bearing surface to the distance between the forearm bed	mm	600	485
Table Diameter	mm	630	500
The distance between the lower end of the sliding frame to work table	mm	490	320
Max. longitudinal moving distance of working table	mm	630	500
Max. transverse moving distance of working table	mm	560	500
Table maximum rotation angle	°	360	360
Vertical and horizontal table power feed range	mm	0.08-1.21	0.08-1.21
Table rotary feed range	mm	0.052-0.783	0.052-0.783
Motor power	kw	4	3
Motor speed	r/min	960	1430
Machine weight	kg	3000	2200
Outline dimension	mm	226114952245	191613051995

Company Information

Henan Wadley Import & Export Trading Co., Ltd. Located in Zhengzhou.the central place of China. With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.

Packaging & Shipping

Our Services

Q1.How to send my enquiry?

You can contact us by email, phone call, message (Whats APP, We Chat, Skype).

Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.

Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.

Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.

Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.

Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.

Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
