input: | 100-240vac; | power: | 45w; |
ac cable: | 1.2m; | output current: | 2.37A; |
Payment Terms: | T/T,Western Union,Paypal; | output voltage: | 19V; |
frequency: | 50/60hz; | Output Type: | DC; |
Usage: | Game Player; | Connection: | Desktop; |
Brand Name: | YHY; | Model Number: | YHY-DS19023700; |
Delivery Detail: | Shipped in 0 days after payment; | usage: | switching; |
Place of Origin: | Guangdong China; | Supply Ability: | 100000 Piece/Pieces per Quarter; |
Product Name: | 19v2.37a adapter for laptop ac adapter power charger; | output: | single; |
type: | desktop; | Port: | shenzhen; |
Packaging Detail: | packing:White box; |
Dear Customers, Welcome to Shenzhen Yinghui Yuan Electronic Co.,Ltd

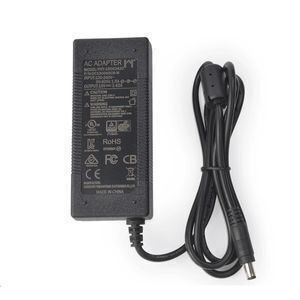

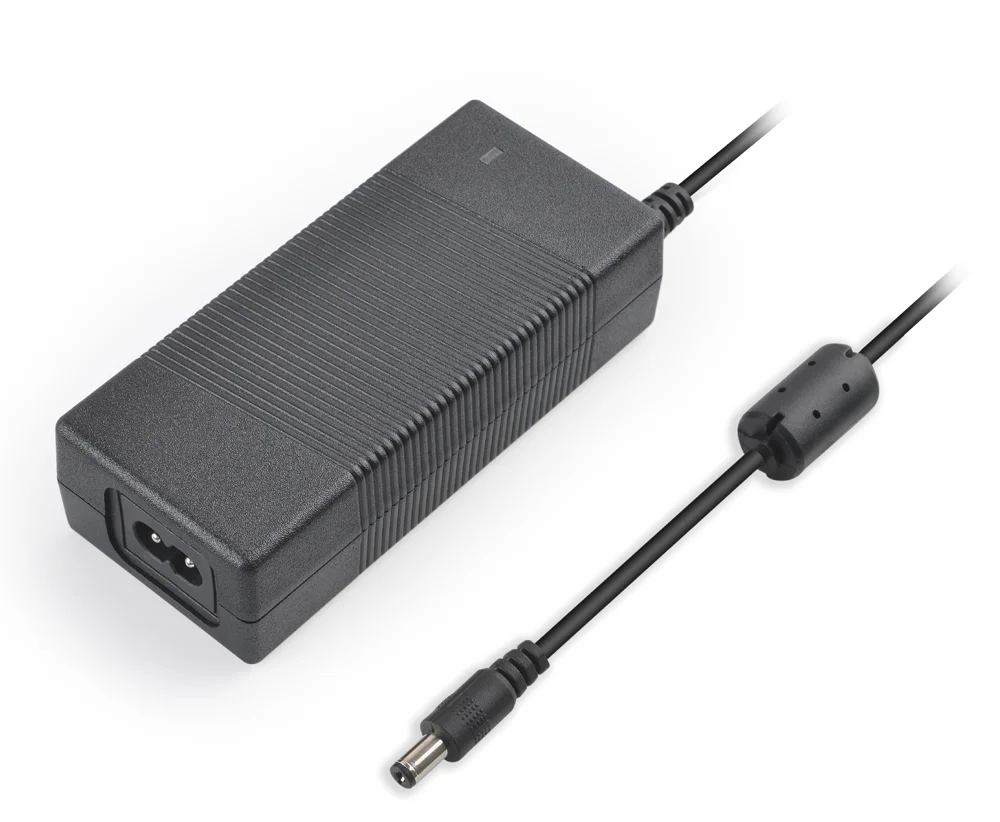

Desktop AC Power Adapter -100-240VAC Universal Input Range -Meets Doe Efficiency Level VI -Desktop Styles -19V Single Output 2.37A -Regulated Output with Low Ripple -Impact-Resistant Polycarbonate Enclosure -No load Power Consumption <0.25W -Limited Power Source -Certified to UL/EN/IEC60950-1 |
Specifications | ||
Input Voltage Range | VAC | 100-240Vac 50/60Hz |
Inrush Current at 110VAC, 25℃ | A |
|
Input Current(Max) | A | 2.0A(100VAC Input) |
Power Factor | - | Meets EN61000-3-2 |
Leakage Current(220VAC 60Hz) | mA |
|
Hold Up Time at 110VAC input, full load | ms |
|
Temperature Coefficient | ℃ | ±0.05%/℃ |
Voltage Accuracy | % | ±2% |
Adjustment Range | - | None |
Min. Load | A | None |
Total Regulation | - | ±5% |
Ripple & Noise | mV | 120mV |
Short Circuit Protection | % | Continuous - hiccup mode |
Over Voltage Protection | ℃ | 110-150% of nominal (Cycle input power to reset) |
Efficiency at Average Load | - | 88% min |
Operation Temperature | - | 0 to +60℃, derating linearly to 50% load above 40℃ |
Storage Temperature | - | -10 to +85℃ |
Humidity (non condensing) | - | 10-90% RH |
Cooling | - | Convection |
Withstand Voltage | - | Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground) |
Vibration (non condensing) | - | 23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour) |
Shock | - | < 196.1 m/s2 (20G) |
Safety Agency Certifications | - | UL60950-1, EN609501-1, IEC60950-1, CE Mark |
DOE Regulation | - | VI |
Off-Load Power Consumption | mW | <210mV |
Conducted & Radiated EMI | - | EN55023-B, FCC Class B |
Immunity | - | EN55024 |
Weight | G | 280g |
Size(WxLxH) | mm | 115x50x30mm |
Cable Length and Thickness | mm | 1200mm |
AC Input Connector | - | IEC 320-C6 / IEC 320-C8/ IEC 320-C14 |
Output Connector | mm | 5.5x2.1mm (Accept more request) |
MTBF 100%, 25℃ | Hours | 50,000 hours |
Warranty | Years | 3 years |

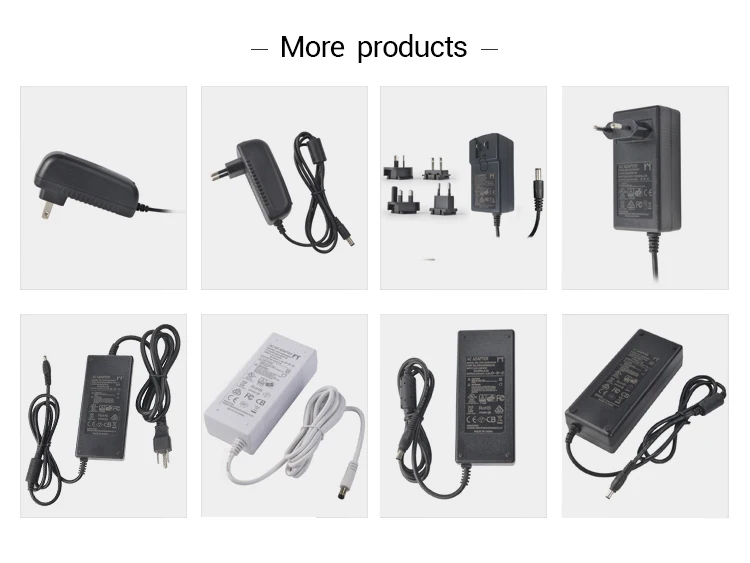

CLICK AND VIEW MORE
POWER | MODEL NO. | INPUT | OUTPUT | AC | ||
VOLTAGE | CURRENT | Plug-in | Desktop |
12W Series | YHY-05002500 | 100-240VAC | 5V | 2.5A | AU EU UK US KR JP Interchangeable | C6 C8 Two Cord |
YHY-06002000 | 6V | 2.0A | ||||
YHY-09001300 | 9V | 1.3A | ||||
YHY-12001000 | 12V | 1.0A | ||||
YHY-24000500 | 24V | 0.5A | ||||
YHY-30000400 | 30V | 0.4A | ||||
24W Series | YHY-05003500 | 100-240VAC | 5V | 3.5A | AU EU UK US KR JP Interchangeable | C6 C8 Two Cord |
YHY-06003000 | 6V | 3.0A | ||||
YHY-09002600 | 9V | 2.6A | ||||
YHY-12002000 | 12V | 2.0A | ||||
YHY-15001600 | 15V | 1.6A | ||||
YHY-18001300 | 18V | 1.3A | ||||
YHY-24001000 | 24V | 1.0A | ||||
YHY-30000800 | 30V | 0.8A | ||||
36W Series | YHY-05004000 | 100-240VAC | 5V | 4.0A | AU EU UK US KR JP Interchangeable | C6 C8 C14 Two Cord |
YHY-06004000 | 6V | 4.0A | ||||
YHY-09004000 | 9V | 4.0A | ||||
YHY-12003000 | 12V | 3.0A | ||||
YHY-15002400 | 15V | 2.4A | ||||
YHY-18002000 | 18V | 2.0A | ||||
YHY-24001500 | 24V | 1.5A | ||||
YHY-30001200 | 30V | 1.2A | ||||
48W Series | YHY-05005000 | 100-240VAC | 5V | 5.0A | AU EU UK US KR JP Interchangeable | C6 C8 C14 Two Cord |
YHY-06005000 | 6V | 5.0A | ||||
YHY-09004000 | 9V | 4.0A | ||||
YHY-12004000 | 12V | 4.0A | ||||
YHY-15003200 | 15V | 3.2A | ||||
YHY-18002600 | 18V | 2.6A | ||||
YHY-24002000 | 24V | 2.0A | ||||
YHY-30001600 | 30V | 1.6A | ||||
60W Series | YHY-05006000 | 100-240VAC | 5V | 6.0A | AU EU UK US KR JP Interchangeable | C6 C8 C14 Two Cord |
YHY-06006000 | 6V | 6.0A | ||||
YHY-09005000 | 9V | 5.0A | ||||
YHY-12005000 | 12V | 5.0A | ||||
YHY-15004000 | 15V | 4.0A | ||||
YHY-18003300 | 18V | 3.3A | ||||
YHY-24002500 | 24V | 2.5A | ||||
YHY-30002000 | 30V | 2.0A | ||||
72W Series | YHY-05007000 | 100-240VAC | 5V | 7.0A | --- | C6 C8 C14 Two Cord |
YHY-06007000 | 6V | 7.0A | ||||
YHY-09006000 | 9V | 6.0A | ||||
YHY-12006000 | 12V | 6.0A | ||||
YHY-15004800 | 15V | 4.8A | ||||
YHY-18004000 | 18V | 4.0A | ||||
YHY-24003000 | 24V | 3.0A | ||||
YHY-30002400 | 30V | 2.4A | ||||
100W Series | YHY-05008000 | 100-240VAC | 5V | 8.0A | --- | C6 C8 C14 Two Cord |
YHY-06008000 | 6V | 8.0A | ||||
YHY-09008000 | 9V | 8.0A | ||||
YHY-12008000 | 12V | 8.0A | ||||
YHY-15006500 | 15V | 6.5A | ||||
YHY-18005500 | 18V | 5.5A | ||||
YHY-24004000 | 24V | 4.0A | ||||
YHY-30003300 | 30V | 3.3A | ||||
120W Series | YHY-05010000 | 100-240VAC | 5V | 10A | --- | C6 C8 C14 Two Cord |
YHY-06010000 | 6V | 10A | ||||
YHY-09010000 | 9V | 10A | ||||
YHY-12010000 | 12V | 10A | ||||
YHY-15008000 | 15V | 8.0A | ||||
YHY-18006600 | 18V | 6.6A | ||||
YHY-24005000 | 24V | 5.0A | ||||
YHY-30004000 | 30V | 4.0A | ||||
150W Series | YHY-12012500 | 100-240VAC | 12V | 12.5A | --- | C6 C8 C14 Two Cord |
YHY-15010000 | 15V | 10A | ||||
YHY-18008300 | 18V | 8.3A | ||||
YHY-24006000 | 24V | 6.0A | ||||
YHY-30005000 | 30V | 5.0A |
1.Q: Do you offer samples for testing?
A: Yes,we offer samples for testing with cost paid by buyer.Besides we welcome our customers to take sample as we believe seeing is believing.
2.Q: What's your MOQ?
A:we have no moq if stocked and 2000pcs if OEM order.
3.Q:Do you have warranty?
A :Yes,we have warranty of 3 year period.
4.Q:Do you have certificates for your products?
A:Yes,we have UL/CUL,FCC,RoHS,CE,KC,SAA,TUV GS,PSE,KCC,NOM Certifications.
5. Can you design the new housing based on our design?
A: We can design. one week make up sample. 30days sample test 45days start to MP?
6. What's the main product of you factory?
A: We are the supplier for 0-500W global power adapter, including wall plug adapter,usb adapter/charger,desktop adapter, metal case switching power supply,led power supply, waterproof power supply,led driver,open frame power supply and ect.
7. Do you have some new product coming?
A: We will design more and more new product with differenct high quality.
8.Q: What's your payment item?
A: Our standard payment is T/T in advance, Credit Card , E-Checking, Paypal and Western Union.
