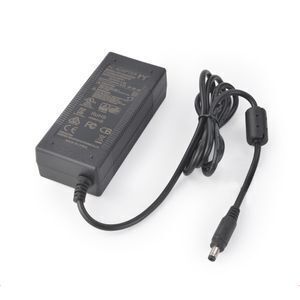

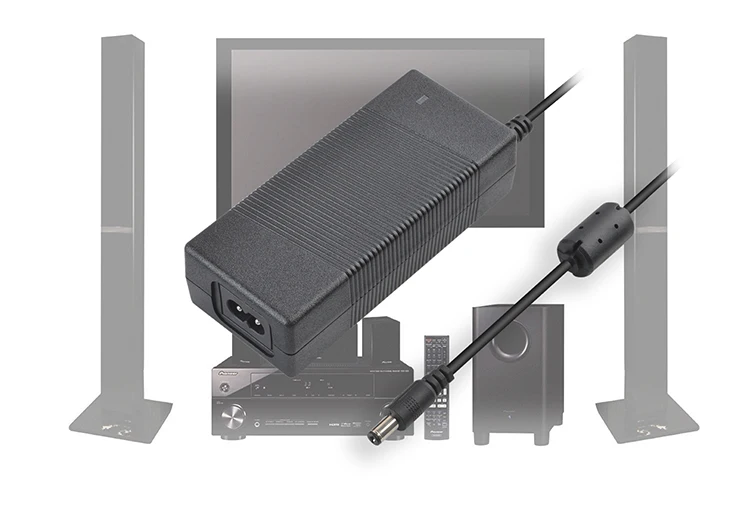

YHY-24002500 power transformer 230v 24v 2.5a 2500ma 60w UL/cUL GS SAA PSE 24 volt 2.5 amp adapter transformer Power supply

Supplier: Shenzhen Yinghui Yuan Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Eva H
Price: $6.00 / >=20 pieces
Min. Order: 20 pieces

Click here to contact

Product details

Place of Origin:	Guangdong China (Mainland);	Coil Structure:	Toroidal;
dc line:	1.2/1.5m;	Phase:	Single;
dc jack:	5.52.1/5.52.5 etc;	Supply Ability:	8000000 Piece/Pieces per Week;
certification:	UL CE cUL SAA ROHS FCC GS NOM;	Model Number:	YHY-24002500;
Payment Terms:	T/T,Western Union,Paypal;	Coil Number:	Autotransformer;
Case:	Plastic Case;	Input:	100-240V;
Application:	LED LCD etc;	AC plug type:	US/ EU AUS UK;
Port:	SZ;	Power:	60w;
Brand Name:	YHY;	Usage:	Lighting;
Packaging Detail:	PACKING OPTIONS: 1) Standard Unit Box (40 Units/Carton, 43 x 43 x 33 cm/CTN) 2) Retailed Gift Box (40 Units/Carton, 43 x 43 x 33 cm/CTN) 3) Retailed Blister / Clamshell/WHITE BOX 4) OEM Package Design;	Output Voltage:	24v 2.5a;
Type:	AC to DC;

YHY-24002500 power transformer 230v 24v 2.5a 2500ma 60w UL/cUL GS SAA PSE 24 volt 2.5 amp adapter transformer Power supply

Details

Specifications
Input Voltage Range	VAC	100-240Vac 50/60Hz
Inrush Current at 110VAC, 25℃	A
Input Current(Max)	A	2.5A(100VAC Input)
Power Factor	-	Meets EN61000-3-2
Leakage Current(220VAC 60Hz)	mA
Hold Up Time at 110VAC input, full load	ms
Temperature Coefficient	℃	±0.05%/℃
Voltage Accuracy	%	±2%
Adjustment Range	-	None
Min. Load	A	None
Total Regulation	-	±5%
Ripple & Noise	mV	120mV
Short Circuit Protection	%	Continuous - hiccup mode
Over Voltage Protection	℃	110-150% of nominal (Cycle input power to reset)
Efficiency at Average Load	-	88% min
Operation Temperature	-	0 to +60℃, derating linearly to 50% load above 40℃
Storage Temperature	-	-10 to +85℃
Humidity (non condensing)	-	10-90% RH
Cooling	-	Convection
Withstand Voltage	-	Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground)
Vibration (non condensing)	-	23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
Shock	-	< 196.1 m/s2 (20G)
Safety Agency Certifications	-	UL60950-1, EN609501-1, IEC60950-1, CE Mark
DOE Regulation	-	VI
Off-Load Power Consumption	mW	<210mV
Conducted & Radiated EMI	-	EN55023-B, FCC Class B
Immunity	-	EN55024
Weight	G	280g
Size(WxLxH)	mm	115x50x30mm
Cable Length and Thickness	mm	1200mm
AC Input Connector	-	IEC 320-C8
Output Connector	mm	5.5x2.1mm (Accept more request)
MTBF 100%, 25℃	Hours	50,000 hours
Warranty	Years	2 years

Output Ratings
Model	Output	Output Max.	Power Max.	DOE VI
	(V)	(A)	(W)
YHY-05005000	5	5	25	√
YHY-06005000	6	5	30	√
YHY-09005000	9	5	45	√
YHY-10005000	10	5	50	√
YHY-12005000	12	5	60	√
YHY-15004000	15	4	60	√
YHY-18003300	18	3.3	60	√
YHY-19003200	19	3.2	60	√
YHY-20003000	20	3	60	√
YHY-24002500	24	2.5	60	√
YHY-30002000	30	2	60	√

Packaging & Shipping

Shipment:

The delivery time is strarting from we confirm the payment.
In case of delay the delivery,so hope you charge it as soon as possible .
Exact lead time is based on your amounts and fact. so you'd better show me your exact qty,not uncertain
Some delivery time as follow:

Qty (pcs)	Delivery Time (working days)
less than 100	5-7
100-800	7-10
800-3K	10-12
3K-10K	15-18
10K-20k	20-22
*Data is a reference for buyer, Specification situation will be given to you after asking us.
Remark
1.Samples (less than 10pcs) can be provied, lead time with 3days.
2.Please carefully check all the details before you take a order.

Company Information

Our Services

Your inquiry related to our products or prices will be replied in 24hrs.
Well-trained and experienced staffs to answer all your enquires in fluent English
OEM&ODM, any your custo mized lightings we can help you to design and put into product.
Distributoership are offered for your unique design and some our current models
Protection of your sales area, ideas of design and all your private information

Click Here Go Back to the Home Page

FAQ

1.Q: Do you offer samples for testing?

A: Yes,we offer samples for testing with cost paid by buyer.Besides we welcome our customers to take sample as we believe seeing is believing.

2.Q: What's your MOQ?
A:we have no moq if stocked and 2000pcs if OEM order.

3.Q:Do you have warranty?
A :Yes,we have warranty of 3 year period.

4.Q:Do you have certificates for your products?
A:Yes,we have UL/CUL,FCC,RoHS,CE,KC,SAA,TUV GS,PSE,KCC,NOM Certifications.

5. Can you design the new housing based on our design?
A: We can design. one week make up sample. 30days sample test 45days start to MP?

6. What's the main product of you factory?
A: We are the supplier for 0-500W global power adapter, including wall plug adapter,usb adapter/charger,desktop adapter, metal case switching power supply,led power supply, waterproof power supply,led driver,open frame power supply and ect.

7. Do you have some new product coming?
A: We will design more and more new product with differenct high quality.

8.Q: What's your payment item?

A: Our standard payment is T/T in advance, Credit Card , E-Checking, Paypal and Western Union.
