Hot sale and New Type Automatic Croissant production line for four rows

Supplier: Shanghai Target Industry Co., Ltd.
Region: Shanghai, China
Contact: Mr gang liu
Price: $350000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	200kg/each;	Voltage:	380v;
Material:	304 Stainless Steel;	Local Service Location:	United States;
Power(W):	about 100kw;	Extruder:	three rollers;
Capacity:	6-8tons/24h;	Application fields:	Bakery;
oven:	Hot air rotary oven;	After-sales Service Provided:	Video technical support;
Showroom Location:	United States;	Certification:	CE;
Port:	SHANGHAI China;	Product name:	croissant;
Raw material:	Water,Milk;	Supply Ability:	5 Set/Sets per Year;
Mixer:	50L;	Output product name:	croissant;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory;	After Warranty Service:	Video technical support,Online support;
Type:	4 rows;	Dimension(LWH):	200010001300;
Brand Name:	Shinwei/TGmachine;	Payment Terms:	L/C,T/T,Western Union;
Main machine:	Flour flatting machine and Flour pressing machine;	Key Selling Points:	High Productivity;
Place of Origin:	China;	After-sales Service Provided:	Engineers available to service machinery overseas;
Warranty:	2 years;	Application:	baking;
Machinery Function:	make bread;	Packaging Detail:	Wooden Package;

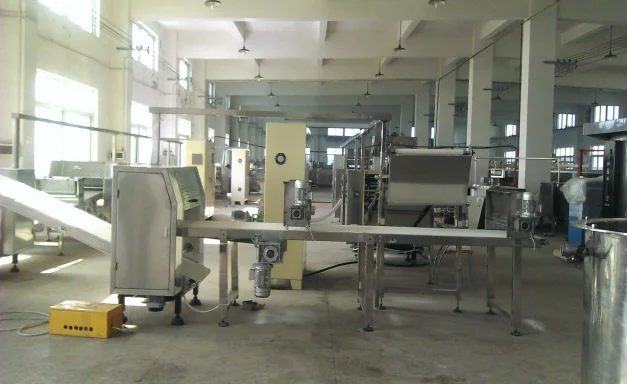

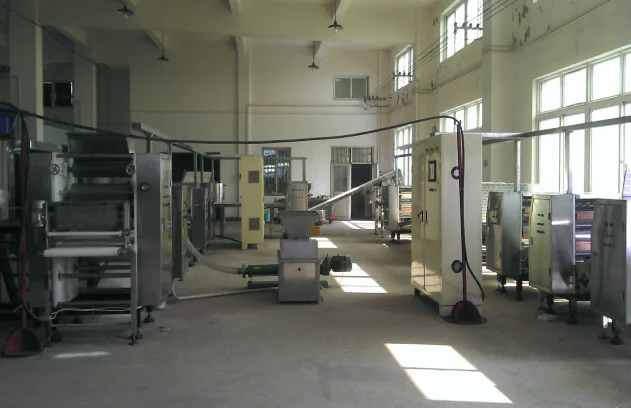

Automatic Croissant production line

TECHNICAL PARAMETERS:

No.	Seller Content	Shanghai Target industry co.,LTD
1	Name of machine	Automatic Croissant production line
2	Capacity	6-8tons/24h
3	Original place	Shanghai, China
4	Type	4 rows

Processing flow:

No.	Machine	Configuration
1	HLY-50 Flour mixer 5 sets	1.including: a. Stainless steel tank 1 set b. Motor 2 sets c. Stainless steel stirrer 1 set d. Electrical equipment 1 set e. safety net cover 1 set f. belt pulley 6pcs g. B-shape belt 9pcs h. tank 1pc 2. Configuration and parameter a. Agitator is made of 304-2B Stainless steel b. Tank is made of 8-10mm A3 c. Belt pulley is made of cast iron d. Voltage: 380V 50Hz e. Power: 5.5kw f. outside is high temperature baking finish 3. Wearing parts: a. B type belt
2	Three rollers extruder 1set	1. including: a. rack and wallboard 1set b. flour feeding roller 3 sets c. adjust screw rod 1pc d. turbine speed changing box 2pcs e. cover 2pcs f. motor 2pcs g. conveyer belt 1pc h. convey platen 1pc 2. Configuration and parameter a. Rack is made of 20mm A3 Board b. Flour feeding roller is made of accurate grinding 45# seamless steel tube with chroming c. Cover is made of 401 stainless steel d. PU conveyer e. Voltage:380v, 50hz f. Power: 5kw 3. Wearing parts: PU conveyer
3	Flour pressing machine 1set	1. including: a. rack and wallboard 1set b. flour roller 12pcs c. big roller 1pc d. turbine speed changing box 2pcs e. adjust screw rod 1set f. conveyer belt 1pc g. cover 2pcs h. motor 2pcs 2. Configuration and parameter a. Rack is made of 20mm A3 Board b. Flour feeding roller is made of accurate grinding 45# seamless steel tube with chroming c. Cover is made of 401 stainless steel d. PU conveyer e. Voltage:380v, 50hz Power: 3kw

Packaging & Shipping

Wooden Packing:

1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing:

a. Inside the machine put desiccant

b. Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap

c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: according to different products for reinforcement.

Our Services

After-Sale Service For Abroad Customers:

1. Free training of machine installation, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installation and adjustment.
