High Quality Seam Welding Machine equipment

Product details
Power(W):50KVA-200KVA;Weight:≥368kg;
product name:FN SERIES AC ROLLING SEAM WELDING MACHINE;Condition:New;
Dimensions:ajustable;Packaging Detail:wooden box;
Welding Mode:seam welding;Usage:seam welding;
Brand Name:TRINTFAR;Reled capacity:50KVA-200KVA;
Welding speed:0.6-2M/min;Supply Ability:50 Set/Sets per Month;
Application:seam welding;After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Certification:ISO CE CCC;Port:Shanghai;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Welding Diameter:80mm-100mm;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use,Construction works ;Certification:ISO CE;
Voltage:380V;Voltage:380V;
Place of Origin:Shanghai China;Warranty:1 year;

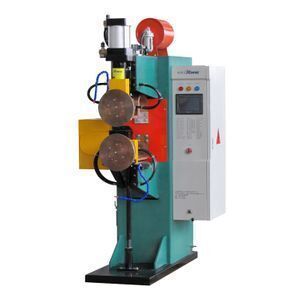

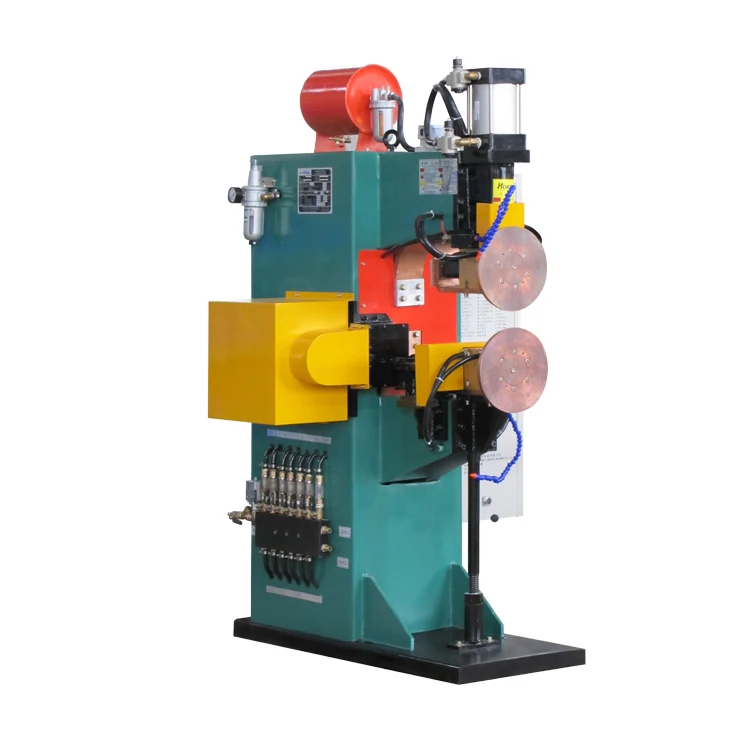

FN SERIES AC ROLLING SEAM WELDING MACHINE

 Feature

  • 3phase regulator controls the welding speed uniformly and without jerks.
  • Longitudinal and horizontal welding make it possible for various jobs and working conditions.
  • Robust structure capable to withstand heat and maintain welding performance.

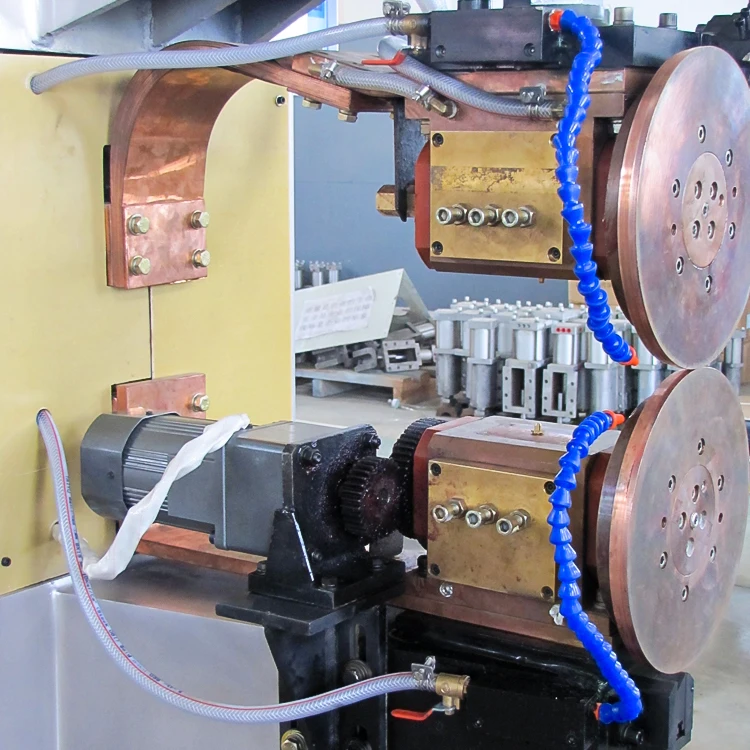

  • The rotation conductance or silver axis tile provides excellent contact and reduces electrical energy loss.
  • Widely used in Household appliances,auto,and other metal working industries.

Item


Model

Reled capacity

Rated Primary voltage

Rated frequency

Maximum short current

Electrode stroke

Welding speed

Electrode pressure

Motor power resource

Cooling water flow

Weight





KVA

V

Hz

A

mm

M/min

N

V

M/min

Kg



FN-50

50

380

50/60

13000

80

0.6-2

4700

3-380V

30

368



FN-75

75

380

50/60

16000

80

0.6-2

6280

3-380V

30

520



FN-100

100

380

50/60

18000

80

0.6-2

6280

3-380V

30

880



FN-150

150

380

50/60

23000

100

0.6-2

12000

3-380V

30

-



FN-200

200

380

50/60

26000

100

0.6-2

12000

3-380V

30

-





Appication



    Widely used in Household appliances,auto,and other metal working industries.
