B R S Type platinum rhodium pt-rh thermocouple bare wire

Product details
Conductor Material:Platinum Rhodium;Standard:ASTM,DIN,IEC;
Brand Name:DLX;Conductor Type:Solid;

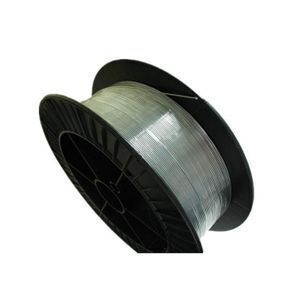

Supply Ability:150 Ton/Tons per Month;Packaging Detail:Thermocouple wire can be packed on 5kgs/spool, 10kgs/spool, 20kgs/spool, carton/wooden case, Special packaging requirements can also be accommodated. OEM is also acceptable.;
Place of Origin:China;Insulation Material:none;
Condition:Soft Annealed;Surface:Bright;
Delivery time:7-20 Days;Port:Shanghai,Qingdao,Lianyungang,Shenzhen,Ningbo,Tianjin;
Model Number:Type B R S;Type:Bare;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Certificate:ISO9001, SGS;
MOQ:100 grams;Application:Temperature test, thermocouple;



Product Description



B R S platinum rhodium pt-rh type thermocouple bare wire



We offer Platinum Rhodium Thermocouple Wires that can be availed in different sizes as per the requirements of the clients. We offer Bare Thermocouple Wires that can be availed in different diameter and length as per the requirements of the clients. They are always supplied in pair and calibrated. The Platinum Rhodium Thermocouple Wires that we deal in are used in varied applications related to the measurement of high temperature.

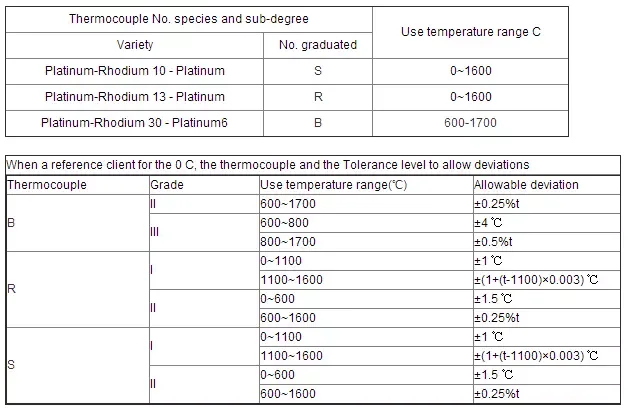

1)Type B (Platinum / Rhodium)

Suited for high temperature measurements up to 1800 °C. Unusually type B thermocouples (due to the shape of their temperature / voltage curve) give the same output at 0 °C and 42 °C. This makes them useless below 50 °C.



2)Type R (Platinum / Rhodium)

Suited for high temperature measurements up to 1600 °C. Low sensitivity (10 µV/ °C ) and high cost makes them unsuitable for general  purpose use.



3)Type S (Platinum / Rhodium)

Suited for high temperature measurements up to 1600 °C. Low sensitivity (10 µV/ °C ) and cost makes them unsuitable for general purpose use. Due to its high stability type S is used as the standard of calibration for the melting point of gold (1064.43°C).









More Products





Other product series :

FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.Go to Review

NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.Go to Review

CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/.Go to Review

Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.Go to Review

Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.Go to Review

Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.Go to Review

Incoloy alloy: Incoloy 800,800H,800HT,825,925.Go to Review

Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.Go to Review

Monel Alloy: Monel 400,K500.Go to Review

High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.Go to Review

Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.Go to Review

Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.Go to Review
