enamel copper magnet wire philippines with low price
-
Supplier: Changzhou DLX Alloy Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Diana Dai -
Price: $25.00 / >=5 kilograms -
Min. Order: 5 kilograms
| Delivery Time: | 7 to 10 Days; | Application: | Heating System; |
| Type: | Insulated; | Certification: | ISO; |
| Place of Origin: | Jiangsu China (Mainland); | Size: | 0.1-10mm; |
| Packaging Detail: | Products of coils wire and strip are packed with waterproof paper or weave bag, into pallets or wooden case.; | Model Number: | 6J12; |
| Resistivity: | 0.47±3%; | Port: | Shanghai,Ningbo,Shenzhen,Qingdao,Lianyungang; |
| Insulation Material: | Enameled; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; |
| Application: | Heating; | Conductor Material: | cu,mn,ni; |
| M.O.Q.: | 5kgs; | Condition: | Soft; |
| Material: | Cu,Mn,Ni; | Supply Ability: | 100 Ton/Tons per Month Copper Manganese Wire Enameled Manganin wire; |
| Item: | Copper Manganese Wire Enameled Manganin wire; | Conductor Type: | Solid; |
| Insulation: | Enamel; | Brand Name: | XL; |
Copper Manganese Wire Enameled Manganin wire
Manganin alloy is one kind of electric resistance alloy which is mainly made of copper, manganese and nickel.
It has character of small resistance temperature coefficient,low thermal EMF vs copper E,outstanding long-term stability,good weldability and workability,which makes it to be superior precision surveying instrument.such as resistor measure voltage/current/resistance and more.
It is also high-quality electric heating wire for low-temperature heating element,such as heater of air-conditioning system,household heating appliances.
Manganin alloy series:
6J8,6J12,6J13,6J40
Size dimension range:
Wire: 0.018-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Chemical Composition:

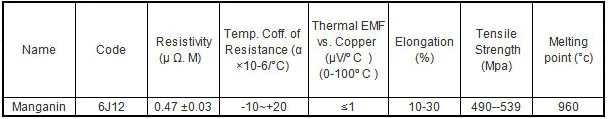

Physical Properties:
Mechanical Properties:
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Type Of Bare Alloy Wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
Size:
Round wire:0.018mm~3.0mm
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
M.O.Q: 5kg each size
Type of Insulation
| Enamelled Type | Thermal Level℃ (working time 2000h) | Code Name | GB Code | ANSI. TYPE |
| Polyurethane | 130 | UEW | QA | MW75C |
| Polyester | 155 | PEW | QZ | MW5C |
| Polyester-imide | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated | 200 | EIWH (DFWF) | QZY/XY | MW35C |
| Polyamide-imide | 220 | AIW | QXY | MW81C |
Other product series :
FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.Go to Review
NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.Go to Review
CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/.Go to Review
Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.Go to Review
Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.Go to Review
Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.Go to Review
Incoloy alloy: Incoloy 800,800H,800HT,825,925.Go to Review
Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.Go to Review
Monel Alloy: Monel 400,K500.Go to Review
High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.Go to Review
Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.Go to Review
Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.Go to Review
How can I contact with your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile
telephone.
Tel: +86-511-86476827 Fax: +86-511-86475088
What is your working time?
Monday-Saturday : 7:30AM-17:00PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . Pls email us during our holiday if u have any question
Do you provide free samples?
Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.
What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
-
