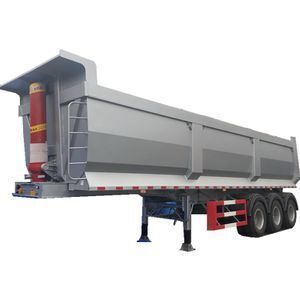

CIMC U shape 3 Axle 35m3 Tipper Trailer/ Dump Trailer/ Trailer Tipper with HYVA Hoist System

Supplier: HOKA VEHICLE CO., LTD
Region: Shanghai, China
Contact: Mr Lock Wu
Price: $22000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Max Payload:	40T;	Payment Terms:	L/C,D/A,D/P,T/T;
Nos of Axles:	Three;	Place of Origin:	CHINA;
Brand Name:	CIMC;	Port:	Any China Port;
Size:	1061525003678mm;	Supply Ability:	100 Unit/Units per Month;
Packaging Detail:	Nude;

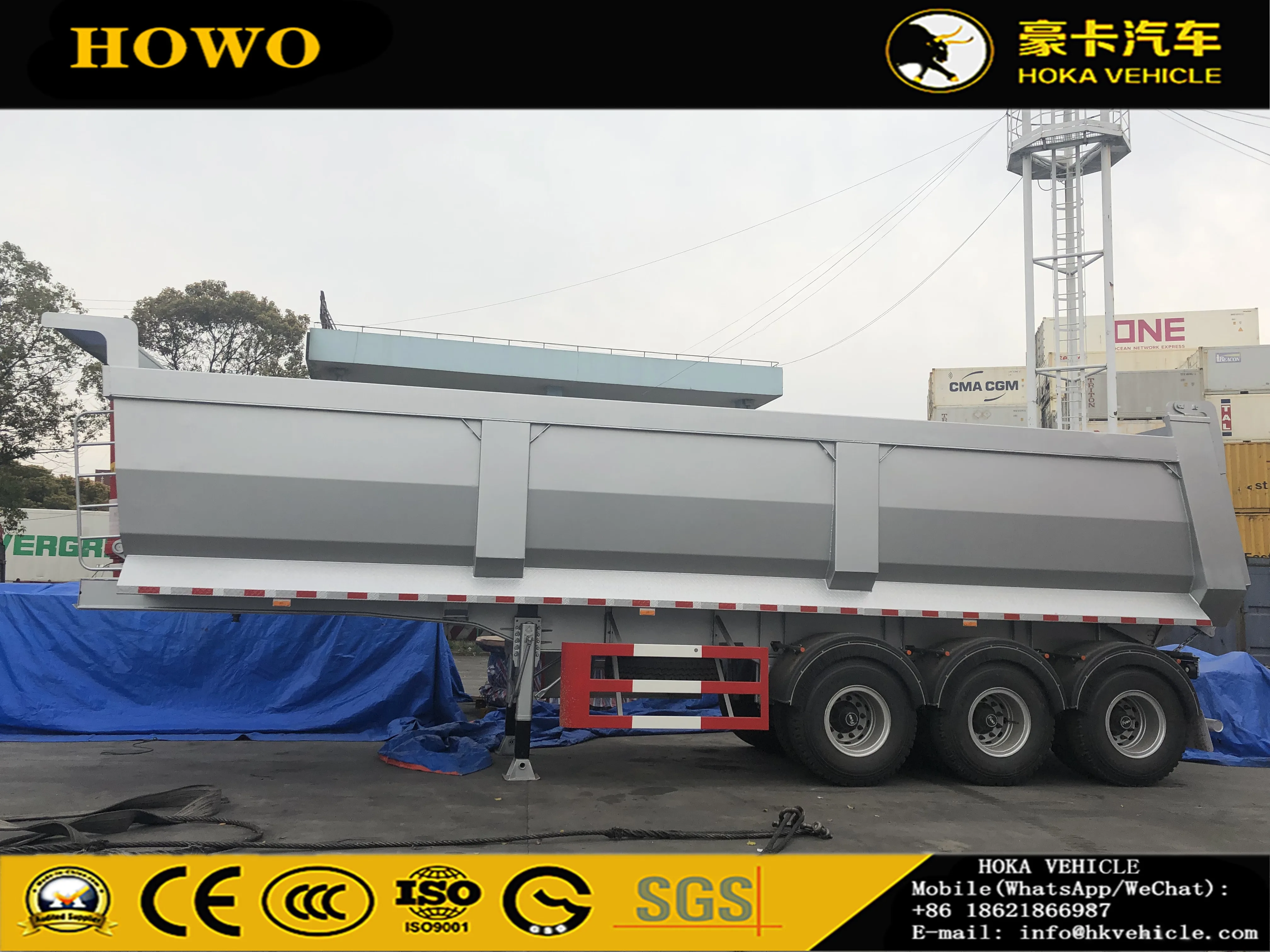

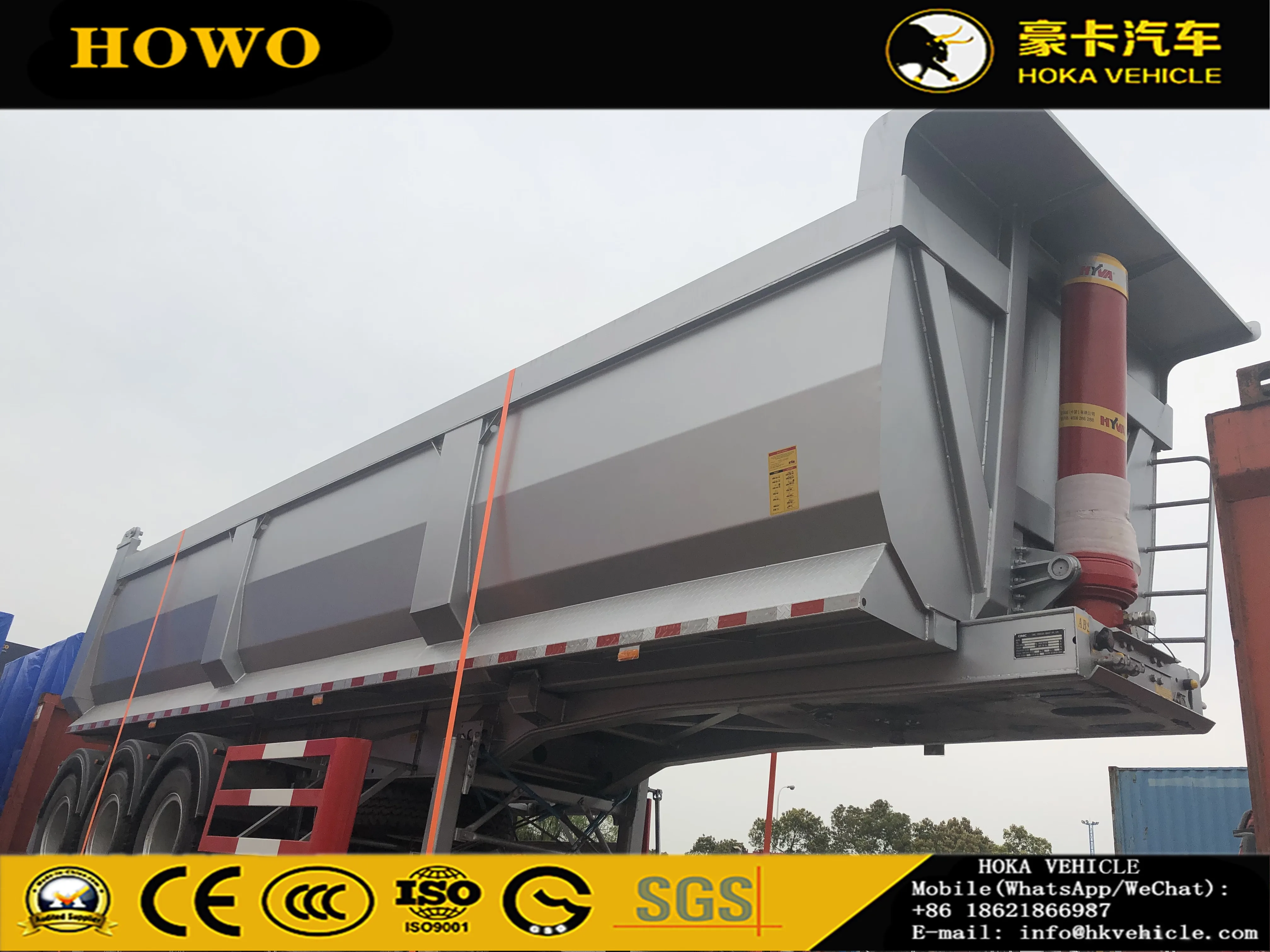

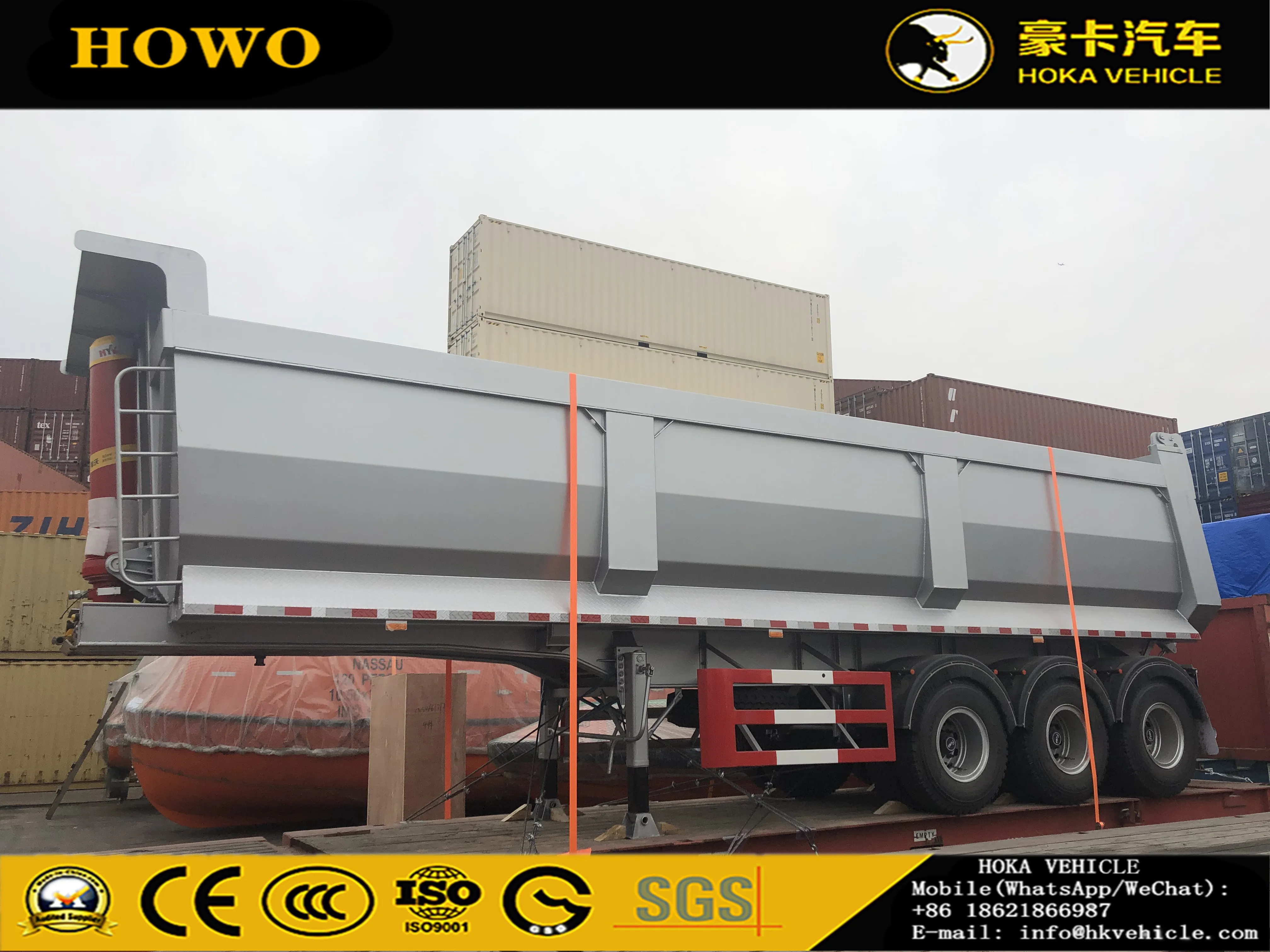

CIMC U shape 3 Axle 35m3 Tipper Trailer/ Dump Trailer/ Trailer Tipper with HYVA Hoist System

Type	CIMC U shape 3 Axle Dump Trailer
Trailer Body	Trailer Size	1061525003678mm
	Capacity	60000kg
	Tare Weight	12200kg
	Volume	35m3
	Rear Door	Included
	Longitudinal Beam	Q345 High tensile steel
	Bottom Plate	8mm
	Side Plate	6mm
Hydraulic System	HYVA FC202-5-07295
Runing Gear	Axle	FUWA 13ton;3pcs
	The Suspension System	CIMC Standard;Mechnical Suspension with Leaf Spring
	Tire	12R20;13pcs
	Rim	9.0-20;13pcs
	Landing Gear	JOST E100
	Kingpin	JOST 2inch
	Brake system	2 lines air brake with air tank
	Relay valve	WABCO
	Chamber	T30/30 on rear two axle;T30 on first one axle
	Tool Box	CIMC Standard
	Rear Bumper	Q345;1set
	Fender	CIMC Standard
	Spare Tire Rack	1pc
	Lights	24V, LED Lights, Phillips Cables;

Why Choose Us

Worldwide Sales, Marketing and Service Network

During the past 15 years, we have exported over 5,000 units of different kinds of heavy duty trucks to over 50 countries in Africa, Middle East, Southeast Asia, and South America. Our overseas authorized truck dealers and service dealers are all around the world.

Wide Ranges of Various Modified Trucks with Different Applications

Our main products range from Dump Truck, Tractor Truck, Concrete Mixer Truck, Van Truck, Lorry Truck, Off-road Dump Truck, Tanker Truck, Truck Mounted Cranes, trailer, tanker trailers and all other kinds of modified trucks. We can design, produce and supply our customers with any special vehicle.

Flexible Payment Terms for Different Trucks and Business

Besides traditional payment terms such as TT, LC, we still offer our stable and long-term partners with various financial support and credit payment terms at different periods.

Excellent and Outstanding After Sales Service

Our professional technicians and mechanics and parts staff always concentrate all our products and our customers. Top Starting Point, High Quality and Worry-free Service is our promise to all our customers.

High Efficiency is One of Our Goal and Promise to Our Customers

We will be always with our customers whenever and wherever we are. All problems and questions shall be solved by our end at the first time. Customer priority outstands without any doubt.

Latest Truck Development and Trends Shall Be Delivered Regularly

We have abundant technical team, familiar with local and major exporter product standards. Our customers will be regularly updated with the latest truck development and trends in China and other countries.

Who we are?

The most professional truck and spare parts distributor in China;

The leading truck and spare parts exporter in China;

The most comprehensive truck and spare parts solution provider in China;

The most worry-free and most satisfactory and reputable supplier for you in China.

We will never let you down if you choose us.

Contact us:

Sales Manager: Lock Wu

Tel/Fax: +86 21 58053971

Mobile(WeChat/WhatsApp/Viber): +86 15801934694

Mobile(Standby): +86 18621866987
