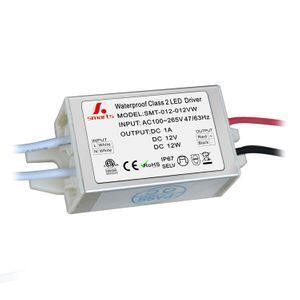

SMARTS POWER CE ETL ROHS listed constant voltage led bulb driver 5w 6w 12w 12v

Click here to contact

Product details

Protection:	Short Circuit/over load/over voltage;	Supply Ability:	30000 Piece/Pieces per Month for constant voltage led bulb driver 5w 6w 12v;
certificate:	CE, ETL, ROHS approval;	Output Power:	6W~300W;
working mode:	constant voltage type;	Place of Origin:	Fujian China;
Input Voltage:	100-265/90-135/170-265VAC;	Model Number:	SMT-012-006VW;
Packaging Detail:	white box + seaworthy carton packing for SMARTS POWER CE ETL ROHS listed constant voltage led bulb driver 5w 6w 12w 12v;	Port:	xiamen;
warranty:	2,3,5 years warranty;	outer case:	Aluminum cover;
efficiency:	>82%;	Output Type:	Single;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Output Current:	0.5A~25A;
Output Frequency:	47-63Hz;	Brand Name:	SMARTS;
energy transfer:	AC-DC;	waterproof rate:	IP67;
Installed with EMI filter:	light weight;	100% full-load burn-in test:	compact size;

click for more information!!!

Accessories

Product Description

Model		SMT-012-06VW	SMT-024-06VW
output	DC voltage	12V	24V
	Voltage tolerance	±1%	±1%
	Rated current	0.5A	0.25A
	Rated power	6W	6W
	Ripple&noise	150mvp-p	150mvp-p
	DCvoltage ADJ.range	±10%	±10%
input	Voltage range	100~265Vdc
	frequency	47~63HZ
	AC current	3.2A/115VAC,1.6A/230VAC
	efficiency	82%	82%
	Inrush current	Cold start current 18A/115VAC,36A/230VAC
	Leakage current	< 1mA/240VAC
protection	overload	Rated output power115%~150% start over load protection
		protection type:cutoff output,recovery after restart power
	Over voltage	26.8-28.6V	30.6~33.2V
		protection type:hiccup mode,auto-recovery after fault condition is removed
	short cricuit	-----
		-----
environment	Working temp,humidity	-10°C~+50°C,20%~90%RH
	Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard
	EMC standard	Comply with EN55022,CLASSA
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation
