Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Supply Ability: | 50000 Unit/Units per Month; |
Use: | Car Trailer; | Max Payload: | 3000KG/4500KG/5000KG; |
Size: | 12500*2500*1560mm; | Certificate: | ISO; |
Place of Origin: | China; | Packaging Detail: | nude; |
OEM No.: | Requirement; | Port: | shanghai port or any port in china; |
Brand Name: | liangshan; |
2 axle low bed semi trailer for utility and truck trailer price
Vehicle | ||

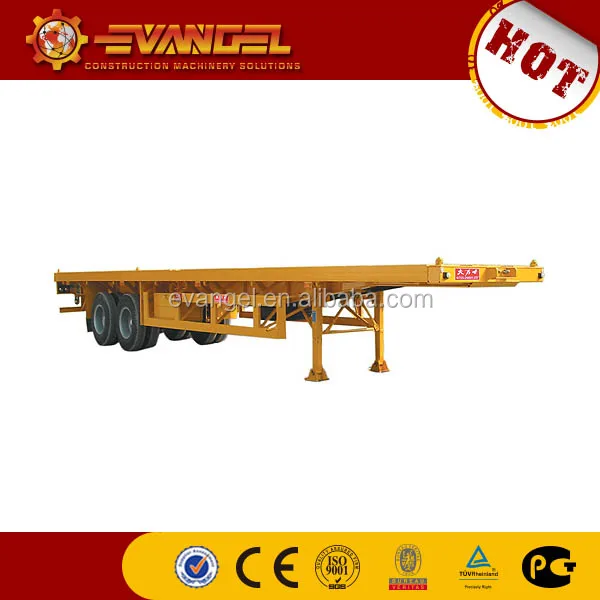

Vehicle Name | 3 axle flatbed semi-trailer | |
Vehicle model | 9402TP | |
Loading capacity | 40T | |
Function | 2*20ft or 1*40ft container | |
Dimension Parameter | ||
Overall length (mm) | 12500 | |
Overall width (mm) | 2500 | |
Overall height (mm) | 1560 | |
Wheelbase (mm) | 6400+1310+1310 | |
Front / rear suspension (mm) | -/2050 | |
Front / rear tread (mm) | -/1840/1840/1840 | |
Weight Parameter | ||
GVW (kg) | 40000 | |
Payload weight (kg) | 34000 | |
Kerb weight (kg) | 6000 | |
Others | ||
Spring leaf No. | -/10/10/10 | |
Tyre type | 11.00R20 | |
Tyre No. | 12 | |
Suspension | 3 axle mechanism suspension | |
Axle | 3* 13T FUWA | |
Landing gear | 28T, two-speed, manual operation | |
Material of main beam | 16Mn | |
Main beam | Height: 480mm, top flange: 12mm, bottom flange:14mm, middle flange: 6mm | |
Platform plate | 3mm | |
Kingpin size | 2” or 3.5” | |
Electrical | 24V, 7 pin socket | |
Equipment | Double tyre carrier, one tool box | |
Painting | High quality painting | |
Others | 8pcs twist lock | |
