Supply Ability: | 1000 Set/Sets per Month; | Overall dimensions(mm): | 13700*2800*3800; |
Feature: | TRUCK CRANE; | Video outgoing-inspection: | Not Available; |
Rear axle load: | 26000kg; | Brand Name: | ZOOMLION; |
Core Components: | Bearing,Gear,Pump; | UNIQUE SELLING POINT: | Fully hydraulic system; |
Hydraulic Cylinder Brand: | Top Brand; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Payment Terms: | L/C,Western Union,D/P,T/T; | Warranty of core components: | 1 Year; |
Packaging Detail: | Nude package; | Span: | 3m; |
Engine Brand: | Top Brand; | Application: | Construction; |
Applicable Industries: | Hotels,Building Material Shops,Machinery Repair Shops,Farms,Restaurant,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Port: | Shanghai/Qingdao; |
Showroom Location: | Egypt,Italy,Germany,Viet Nam,Philippines,Brazil,Peru,Indonesia,Mexico,Tajikistan,Malaysia,Australia; | Place of Origin: | Hunan China; |
Main boom length: | 11.4 - 43.0m; | Certification: | ISO9001 CIQ; |
Rated Loading Capacity: | 55T; | Machinery Test Report: | Provided; |
Hydraulic Pump Brand: | Top Brand; | Local Service Location: | Viet Nam,Philippines,Brazil,Peru,Indonesia,Mexico,Thailand,Japan,Malaysia,Kenya,Chile,UAE,Algeria,Romania,South Africa,Kazakhstan,Kyrgyzstan,Tajikistan; |
After-sales Service Provided: | Engineers available to service machinery overseas,Field installation, commissioning and training,Field maintenance and repair service,Online support,Free spare parts; | Condition: | New; |
Hydraulic Valve Brand: | Top Brand; | Max. gradeability: | 40%; |
Warranty: | 1 Year; | Max. Lifting Height: | 58 m; |
Marketing Type: | New Product 2020; | Front axle load: | 16000kg; |
Rated Lifting Moment: | 2009KN.M; |

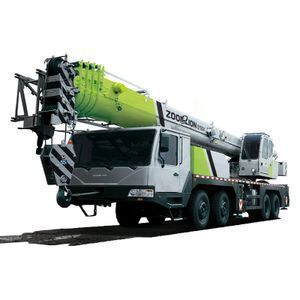

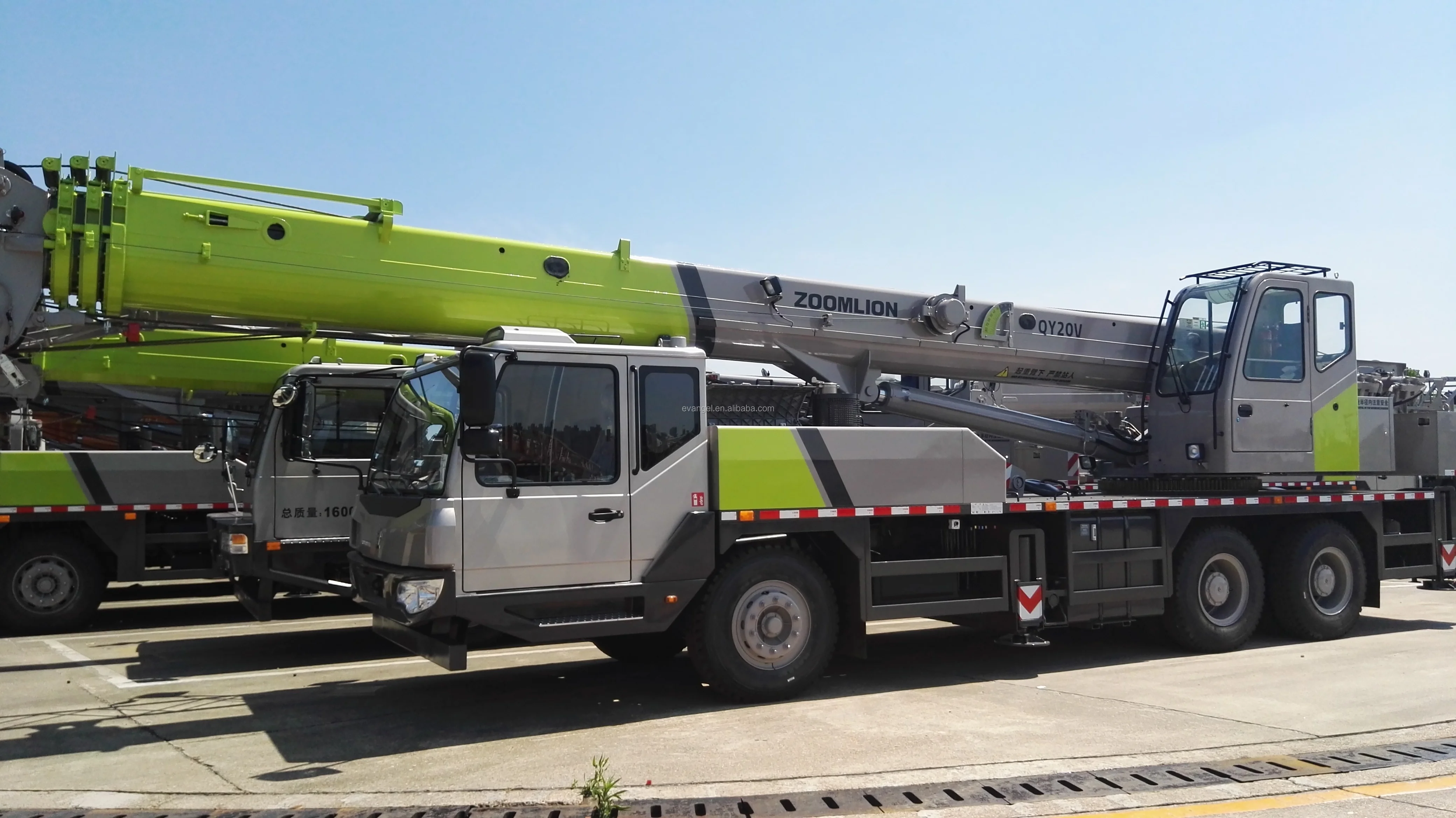

Zoomlion truck crane QY55V ZLJ5425JQZ55V truck crane 50T truck with crane
Feasure of Zoomlion truck crane QY55V ZLJ5425JQZ55V truck crane 50T truck with crane
• Continuously overall promotion makes our lifting capacity of crane be improved once and once again.
• 43 m main boom , two section jibs (9.5m ,16m).
• Optimized central slewing position increases the lifting capacity of the crane over rear.
• Large outrigger span improves the working stability of the crane greatly,
• Adopt internationally advanced structure analysis and calculation methods to develop the lifting capacity of crane deeply.
• Leading boom manufacturing process in trade.
Parament of Zoomlion truck crane QY55V ZLJ5425JQZ55V truck crane 50T truck with crane
Item | Unit | Value | Remarks | |
---|---|---|---|---|
Working performance | Max. rated lifting capacity | kg | 55000 | |
Max. load moment of basic boom | kN.m | 2009 | ||
Max. load moment of main boom(fully extended) | kN.m | 1050 | ||
Max. load moment of basic boom | m | 12.6 | ||
Max. lifting height of main boom | m | 43.6 | These parameters do not include deflection of main boom and jib | |
Max. lifting height of jib | m | 59.5 | ||
Working speeds | Max. hoist rope speed(Main winch) | m/min | 120 | |
Max. hoist rope speed(Auxiliary winch) | m/min | 120 | ||
Boom demrricking up time | s | 50 | ||
Boom demrricking up time | s | 95 | ||
Slewing speed | r/min | 0-2.2 | ||
Driving | Max. driving speed | km/h | 76 | |
Max. gradeability | % | 40 | ||
Turning diameter | m | ≤24 | ||
Min. ground clearance | mm | 260 | ||
Oil consumption per hundred kilometers | L | 43 | ||
Mass | Deadweight in driving condition | kg | 42000 | |
Complete vehicle kerb mass | kg | 41870 | ||
Front axle load | kg | 16000 | ||
Rear axle load | kg | 26000 | ||
Dimension | Overall dimensions(L×W×H) | mm | 13700×2800×3650 | |
Longitudinal distance between outriggers | m | 5.92 | ||
Transversal distance between outriggers | m | Fully extended:7.1, Intermediately extended:4.8 |
||
Tail slewing radius | mm | 3900 | ||
Main boom length | m | 11.4 - 43.0 | ||
Main boom angle | ° | -2 - 80 | ||
jib length | m | 9.5,16.0 | ||
Offset | ° | 0,30 |
