[CHOVYTING]supper high speed flex printing machine/flexo printing machine/flex printing machine price

Product details
Place of Origin:Zhejiang China;Certification:CE,SGS,ISO9001:2000;
Usage:Cloths Printer,Label Printer,Paper Printer,Tube Printer;Plate Type:flexography;
Brand Name:CHOVYTING;Delivery Detail:50 days after flexography printing order confirm;
Port:Ningbo;Type:Flexographic Printer;
Packaging Detail:stretch film & bubble film wrapping onto wooden pallet shippment will be along with spare parts, instruction manual & components' manual;Dimensions(L*W*H):7500*3300*4600mm;
Condition:New;Gross Power:92KW;
After-sales Service Provided:Engineers available to service machinery overseas;Supply Ability:50 Set/Sets per Year;
Inverter:Yaskawa from japan;Payment Terms:L/C,T/T;
Servo motor:Yaskawa from japan;Color & Page:Multicolor;
Automatic Grade:Automatic;Weight:6400kg;
Voltage:380V 50HZ;Operation Language:English Russia Arabic Spanish Chinese;
Model Number:CW-1206FP;



Skype:chovyting07

Product Description

Brief  Introduction:

This machine is condensed technical team of CHOVYTING has 10 years experience in manufacturing of printing industry,the design of this machine is the faster printing speed to improve production efficiency,with heavy-duty frame as design base.When at the high speed running,which will minimize coefficient of noise and vibration,to the core of steady tension control system and registering Accuracy to show to show the highest performance and best quality of printing.



Technical Parameter:

1.New design heavy-duty frame,to avoid vibration when it running high speed

2.Super precise belt transmission system,to provide a quite operation environment

3.New design tension control system,6 sets servo motor Synchronous Drive(JAPAN SYSTEM)

4.New design drying system,suit for supper high speed printing

5.Adopt supper precise ceramic anilox roller,to province precise printing effect

6.Adopt closed type scraping blade and printing ink cycle special of CHOVYTING

7.Special design of fast exchange the running direction when infront and back printing

8.Special design of the wheel fast adjust structure

9.Large color LCD touch screen operating system



Optional:

1.Printing cylinder air sleeve

2.Unwinding and rewinding automatic changeover device

3.Ink viscosity controller



Remark:

1.Printing cylinder used photosensitive resin plate.Thickness(include double-sides adhesive)3.09mm

2.Extra only one set free for printing cylinder(size range7.5″-15″)

3.The machine have 4,6,8 colors for choose,the width size of printing can be ordered range25″- 57



Technical Parameter:

Model

CW-804FP

CW-806FP

CW-104FP

Max.printing width

750mm

750mm

950mm

Max.width size of raw material

850mm

850mm

1050mm

Repeat printing length

300-900mm

300-900mm

300-900mm

Printing speed

60-200M/min

60-200M/min

60-200M/min

Printing type

4+0 1+3 2+2

6+0 1+5 2+4 3+3

4+0 1+3 2+2

Total power

88kw

88kw

88kw

Weight of machine

4000kg

4600kg

4700kg

Dimension of machine

7500*2900*4300mm

7500*2900*4600mm

7500*3100*4300mm



+

Model

CW-106FP

CW-1204FP

CW-1206FP

Max.printing width

950mm

1150mm

1150mm

Max.width size of raw material

1050mm

1250mm

1250mm

Repeat printing length

300-900mm

300-900mm

300-900mm

Printing speed

60-200M/min

60-200M/min

60-200M/min

Printing type

6+0 1+5 2+4 3+3

4+0 1+3 2+2

6+0 1+5 2+4 3+3

Total power

88kw

92kw

92kw

Weight of machine

5400kg

5800kg

6400kg

Dimension of machine

7500*3100*4600mm

7500*3300*4300mm

7500*3300*4600mm



+

Model

CW-1404FP

CW-1406FP

Max.printing width

1350mm

1350mm

Max.width size of raw material

1450mm

1450mm

Repeat printing length

300-900mm

300-900mm

Printing speed

60-200M/min

60-200M/min

Printing type

4+0 1+3 2+2

6+0 1+5 2+4 3+3

Total power

92kw

92kw

Weight of machine

7300kg

7900kg

Dimension of machine

7500*3500*4300mm

7500*3500*4600mm

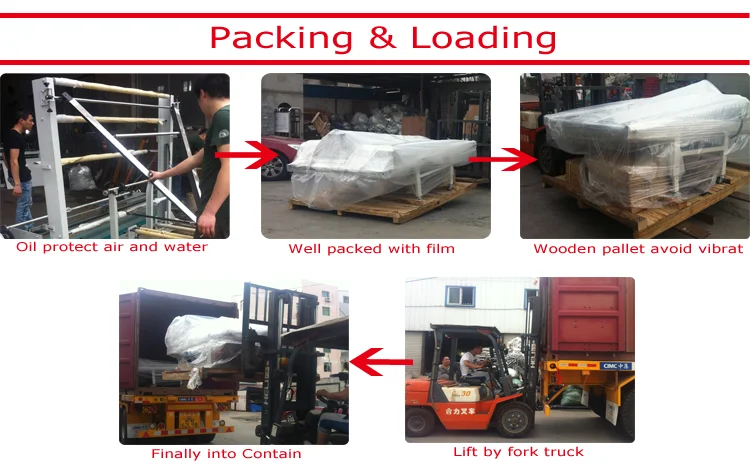

Packaging & Shipping





Our Services

 Our Advantages:



1. ISO 9001:2000, GSG, SGS, CE, Production Assessment, Gold Supplier certificated



2. With 16 patents for different machines, for eg, Model CW-400v2 can produce 500 pcs/min  Plastic T-shirt bags



3. All machines will be examined and tested before delivery by 5 professional engineers (with more than 15 years machine experience)



4. Perfect after-sale system, setted up more than 5 Agents in Chile, Egypt, South Africa,



    Argentina, Yugoslavia etc ; more than 5 experienced technicians work abroad.



5. Yearly Production Capacity -- 200-300 sets



6. Prompt Reply Within 12 Hours
