New design evaporative cooling tower

Supplier: Xinxiang Jiahui FRP Environmental Equipment Co., Ltd.
Region: Henan, China
Contact: Mr. peter zhang
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE ISO9001;	Supply Ability:	100 Set/Sets per Month New design evaporative cooling tower;
Warranty:	1 Year;	Port:	Qingdao/ as you request;
Cooling Type:	SPRAY;	OEM:	Acceptable;
Model:	DBNL3-50T;	Weight:	8T-5000T;
Lead time:	15-25 working days;	Package:	Wooden case/bulk;
Place of Origin:	Henan China (Mainland);	Name:	Cooling Tower;
Power(W):	3KW-180KW;	Packaging Detail:	HS: 8418699090 Name: FRP cooling tower Wooden case or as your require CE and ISO Delivery Detail: 15-25 working days;
Colour:	Green;	Dimension(LWH):	Depends;
Material:	FRP;	Payment:	T/T/ or others;
Brand:	Jiahui;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Keyword:	Cooling Tower;	Brand Name:	DBNL3-50T;
After-sales Service Provided:	Engineers available to service machinery overseas;	Material:	FRP;
Voltage:	220V/240V/380V/480V;	Condition:	New;

Product Description

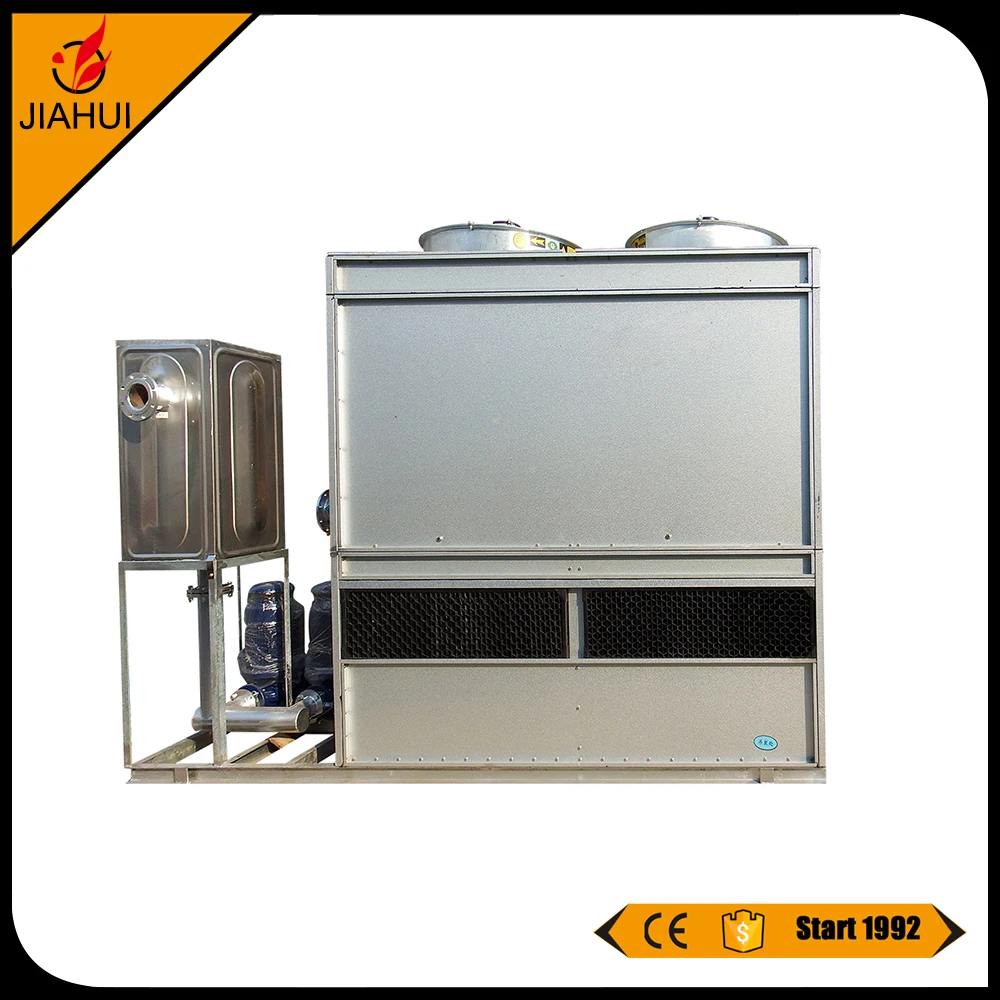

New design evaporative cooling tower

Closed cooling tower also named Evaporative air cooler. It is the type of cooling tower placed the heat exchange tube inner the tower to the then ensure the cooling effect by circulation of air, spray water and circulating water. Spray water wraped around the heat exchange tube, the heat of the water inner tube is transfered to the spary water throught the wall of Heat exchange tube and Forming steam, the steam is discharged by fans. Almost Steam is recycling by drift eliminator , Re-condense into water and flow into the water channel. The filling cooling the spary water twice time , impoved the cooling effect and reduce the Scaling in outer wall of heat exchange tube.It can ensure the water can't be pulluted because of the close circulation and protect well the main equipment 's efficient operation and improve the service life. If the low temperature outside, can stop spray water system to save water, Closed cooling tower in the iron and steel metallurgy, power electronics, mechanical processing, air conditioning systems and other industries have been widely used.

If the cooling raw material not water, not oil , is the Refrigerant and The refrigerant enters the cooler in the form of a high temperature gaseous state for heat exchange, the closed cooling tower named the Evaporative air cooler.

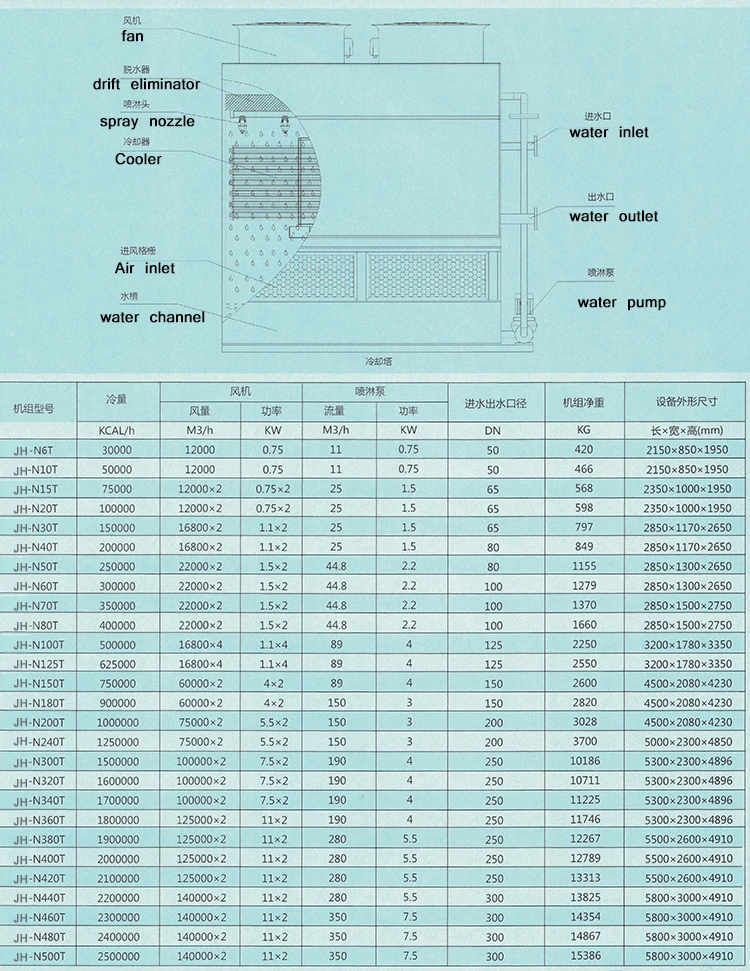

1.Air inlet of closed cooling tower

2. water tank for closed cooling tower

3. water discharge of closed cooling tower

4. cooling fan of closed cooling tower

5. water pump for water tank

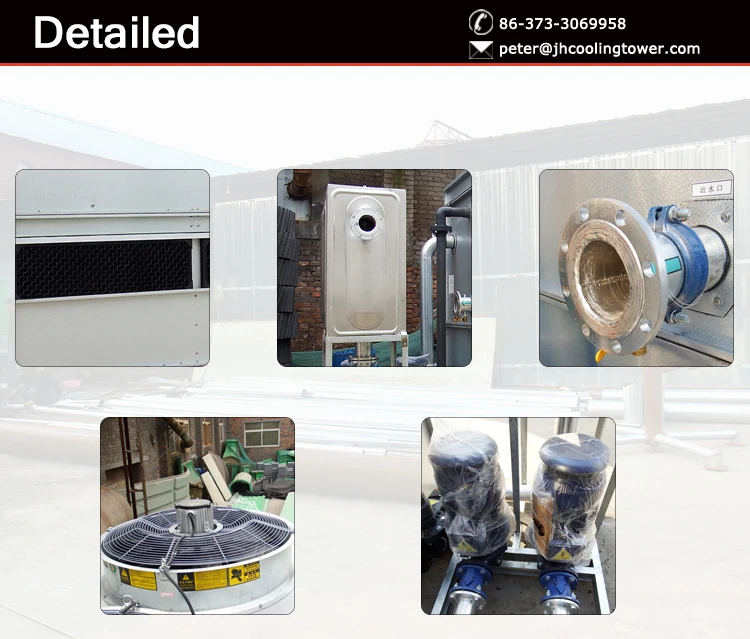

1. Three anti - special motor, Protection class is IP55, The Insulation class F, Axial fan with the Aluminum alloy blade. Start directly.

2. The heat Exchange tube material is T2 deoxidation,deacidification, high quality copper tube or the SUS 304, 316L tube. grading and pressure test three times to ensure the closeness.

3. Water pump, we use the specifical cooling tower water pump, the small volume, light weight, silent mode design.easy maintance and long life.

4. Drift eliminator, PVC material drift eliminator change the Airflow direction three times, recycling the steam utmost to save water. It is easy repalce.

5. Air inlet, PVC material, large air volume, small Wind resistance, can prevent the Floating debris enter the Closed cooling tower.

6. Spray system. The spray nozzle is most important, it can ensure the water sprayed on heat exchanged tube evenly.

7. Control system, we will provide the control system in each closed cooling tower.

8. Auxiliary Machine, SS water tank, the water pump,

The advantage

* Softened water as the Frozen liquid, no touch the air, no metamorphism, no scaling and keep the best cooling effect

* Low circulating water loss

* There is water drift eliminator above the spray system, recyling water, recyling steam, save water.

* It easy change the place, the low operating cost, low maintance cost

* Compact struction, small footprint, easy installation

* Rare wearing parts, low malfunction, easy maintance.

Packaging & Shipping

The small cooling tower is packed by wooden case, if the large cooling tower, we packed it in wooden tray.

If the cooling tower is too big and we need use the whole container, we shipping it in bulk.

The most important , we accept your special requirement.

Company Information

Our company has a history of 25 years. We has great achievement on internal trade. Our company has focused on cooling tower since 1992. Now we already build a mature system. In past 25 years , we serviced the countless customers, including the ending-user, trading company and broker, and wholesalers. You can get the suitable and good price cooling tower from us.

We will try our best to product your benifit.

FAQ

1.How to order?
A:Step 1,please tell us what model and quantity you need;
Step 2,we will make a PI for you to confirm the order details;
Step3,when we confirmed everything ,can arrange the payment;
Step4,we deliver the goods within the stipulated time.
2.When will make delivery?
A:Delivery Time:15-25 working days.
3.After-sales Service
12months warranty for all kinds of products;
IF you find defective accessories first time, we will give you the new parts for free to
replaced in the next order, as an experienced manufacturer, you can rest assued of the
quality and after-sales service.
4.Payment
T/T, Western Union,Moneygram
