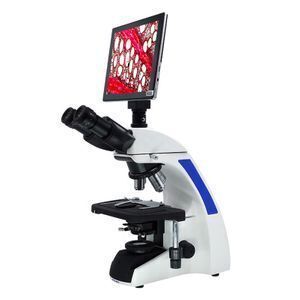

OPTO-EDU A33.1502 9.7" Professional Trinocular Video Lcd Display Digital Microscope

Product details
Package Type:Polyfoam Protection + Strong Master Carton;Single gross weight:11.5 KG;
Eyepiece:WF10x;Brand Name:OPTO-EDU;
Working Stage:Double Layer Mechnical;Focusing:Coaxial Coarse & Fine;
Light Source:LED;Nosepiece:4 Holes;
Condenser:Abbe N.A.1.25;Model Number:A33.1502;
Theory:Video Microscope;LCD Screen:9.7";
Single package size:53X32.5X53.5 cm;Drawtube:Trinocular;
Selling Units:Single item;Resolution:5.0M;
Objective:Achromatic 4x,10x,40x,100x;Power Supply:100~240V;
Place of Origin:Beijing China;

OPTO-EDU A33.1502 9.7" Professional Trinocular Video Lcd Display Digital Microscope

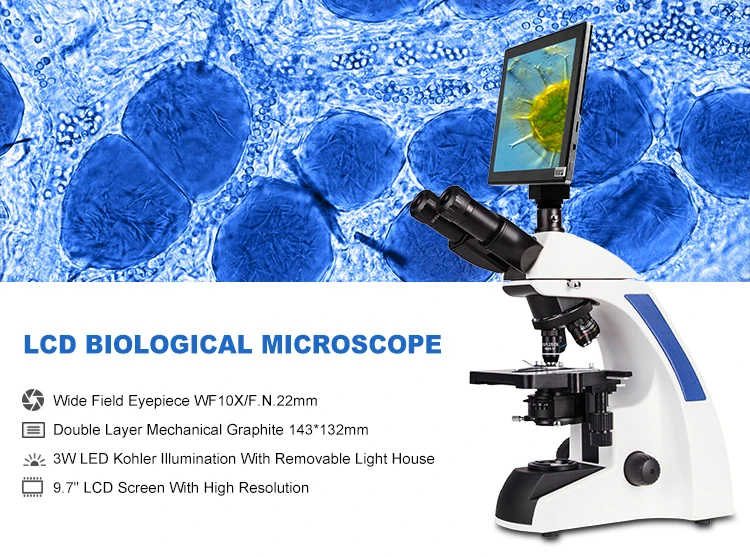

A33.1502 is a type of professional LCD biological microscope for laboratory or hospital, equipped with 9.7" LCD high resolution screen, provides excellent optical performance. Because of the streamline figure and pastel color, it has more beautiful appearance. With the large size double layer mechanical stage, it can provides the more comfortable operation and operational room.


--Infinity Optical System

--9.7" LCD Screen With High Resolution
--Binocular And Trinocular Head Available, Interpupillary Distance 48~75mm
--Eyepiece Diopter Adjustable
--Wide Field Eyepiece WF10X/F.N.22mm
--Infinite High Contrast Chromatic-free Full Plan Objectives
--Double Layer Mechanical Graphite 143*132mm, Graphite Surface, Moving Range75mmx55mm
--External Illumination, 3W/LED



Parameter





Specification

A33.1502 9.7" LCD Biological Microscope

Head

9.7" HD Diagonal IPS LCD, Backlight Screen, Resolution 1024x768

Five Point Touch Screen, With Hardware Power Switch

Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable

Eyepiece

WF10x/20mm

Objective

High Contrast Chromatic-free 4X, 10X, 40X, 100X

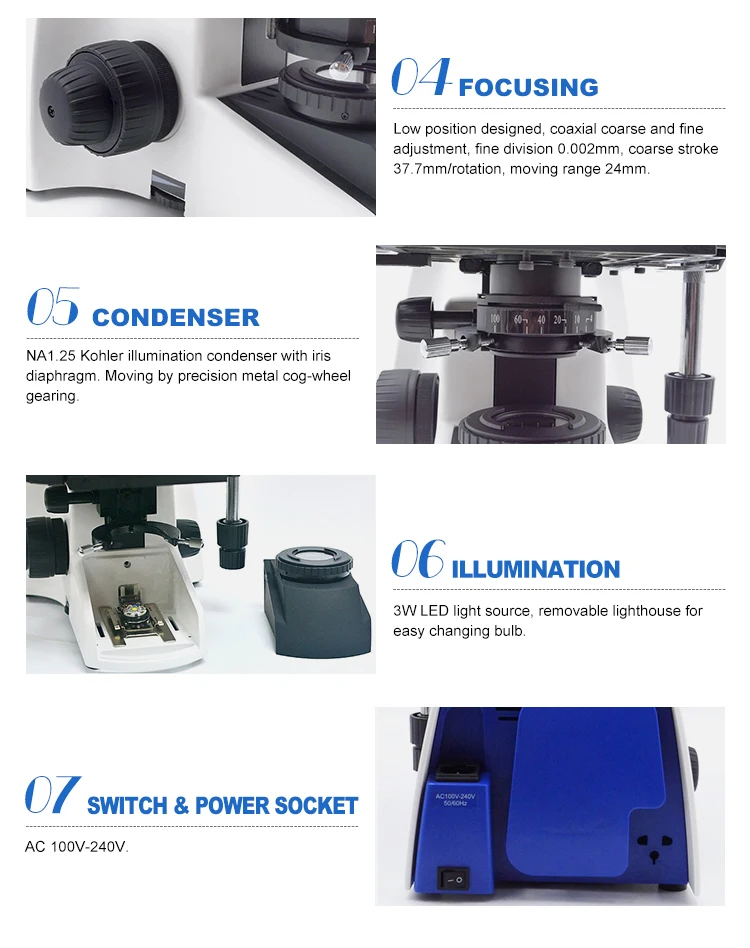

Focus System

Coaxial Coarse And Fine Adjustment, Fine Division0.002mm, Coarse Stroke 37.7mm/Rotation, Moving Range 24mm

Nosepiece

Quadruple, Reversed Type With Positive Click Stops

Stage

Large Size Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75mmx50mm

Condenser

Abbe Condenser NA1.25

Filter

Blue filter Φ 38 (Not Available For LED Illumination)

Light Source

External Illumination, 3W/LED

Adapter

C-Mount 1.0x




+

Specification of LCD Pad Camera

Digital Camera

5.0M, 2.2umx2.2um, Max 30 Fps

CPU

1.8GHz Four Core RK3288 CPU

Support Open GL ES 1.1/2.0 And Open VG 1.1

Support Full HD 1080p

Support Android 5.1 System

Memory

RAM 2GB, Support DDR3, DDR2, LPDDR2

ROM 8GB

Data Storage

SD Card Slot, Support Max 32GB C10 High Speed SD Card

Data Interface

HDMI, Mini USB2.0, USB 2.0

Operation System

Android 5.1 System, Multi Language

Software

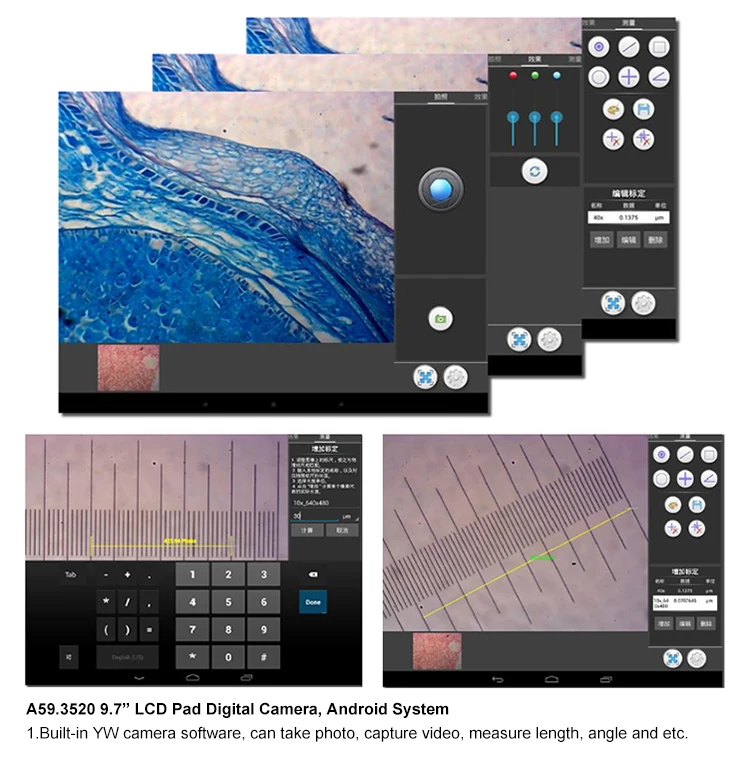

YX Camera Installed

--Can Adjust Real Time Image

--Can Measure Length, Area, Angle, Count

--Can Take Picture, Record Video

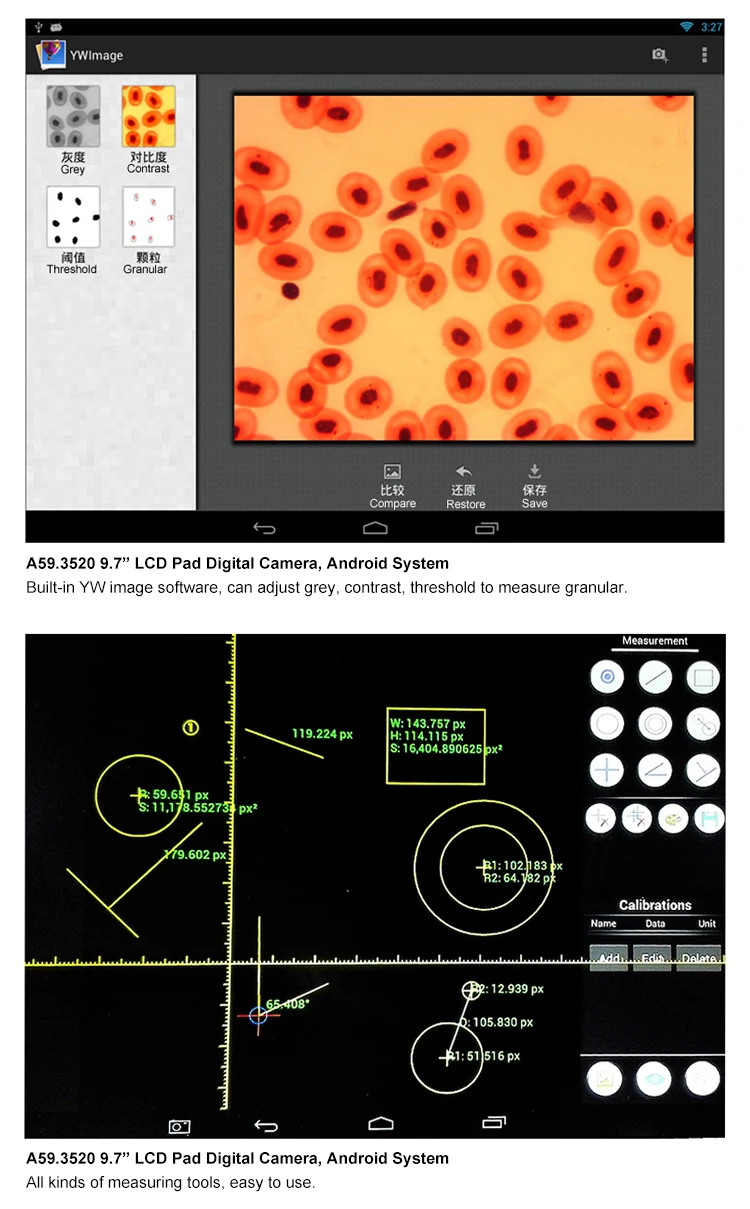

YX Image Installed

--Grey, Contrast, Brightness Adjust

--Binary Image For Granular Count

Both Software Chinese/English Version, With Instruction Manual Installed

Button

Power Switch

WIFI

Support WIFI, Support Bluetooth

Power

External Power Adaptor, Wide Voltage AC 100~240V, DC 5V/2A

Power Mode: Normal, Sleep, Power Off

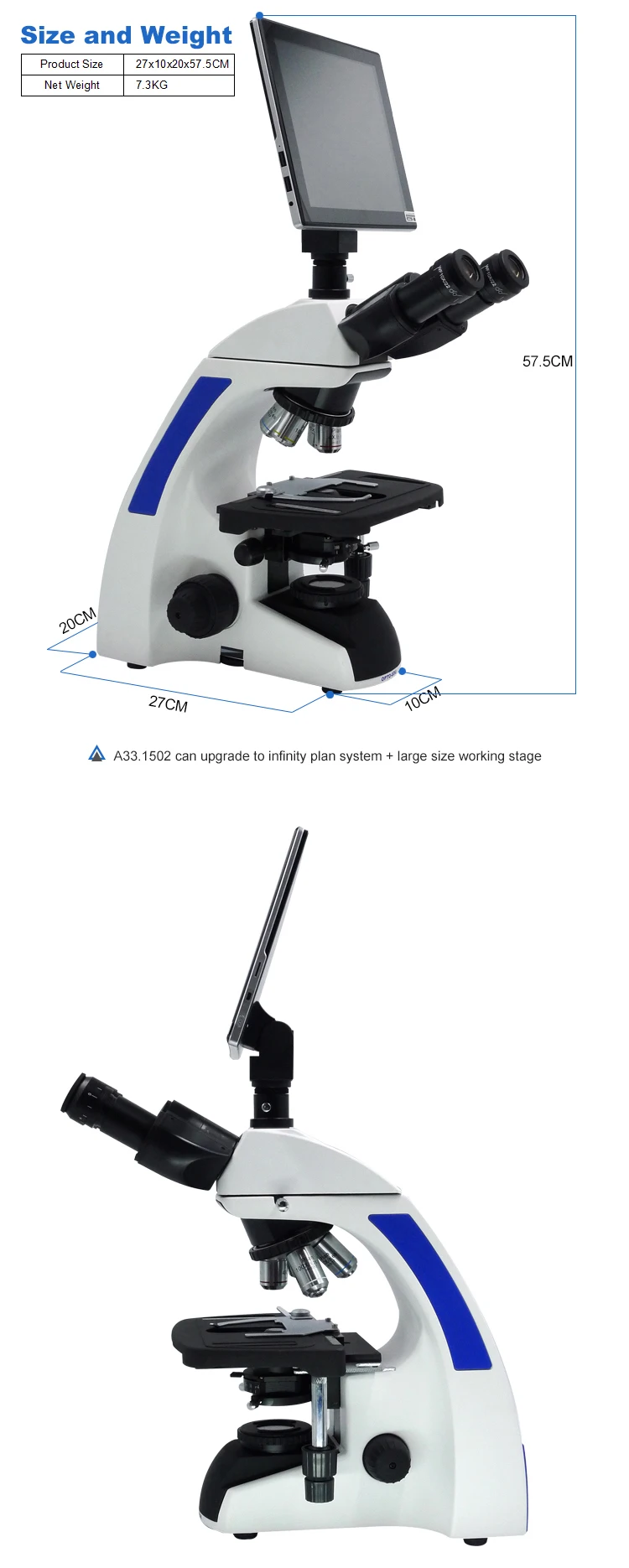

Product Size

Pad 17.5x22.5x2.0cm

Package Size

Packing Box 10x24x29cm, 1 pc/Box





Product Display

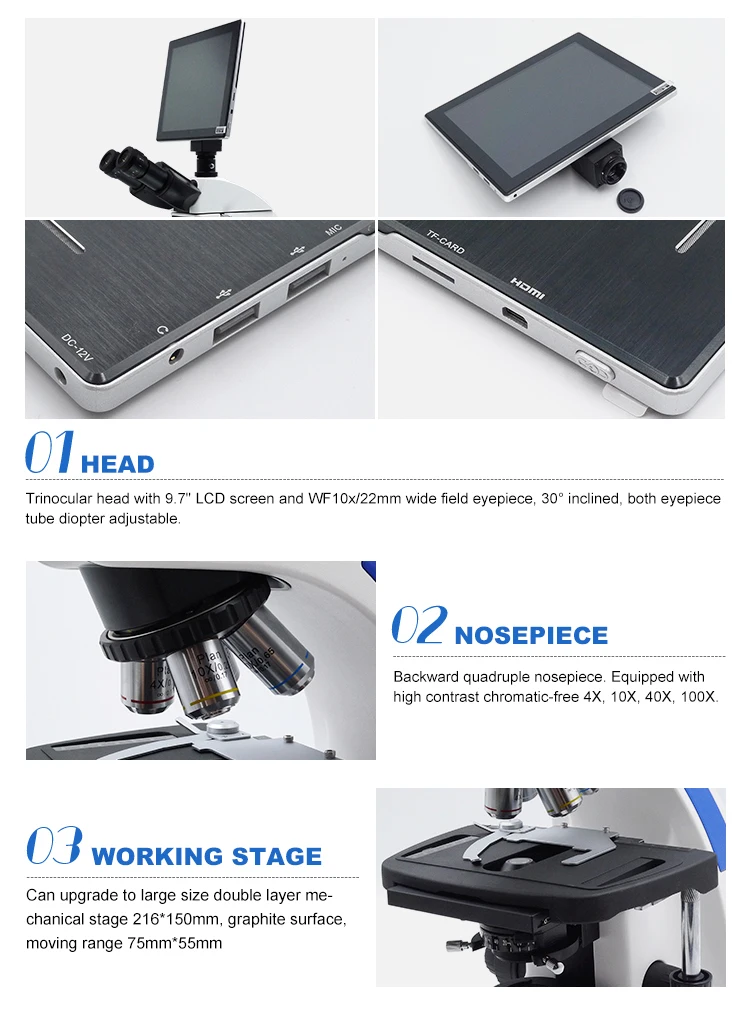

Product Details



Related Products



Product Application



LCD digital microscope is based on biological microscope, which widely used to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects. It is not only clear but also convenient to observe.

Packaging & Shipping



Company Information

OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.
