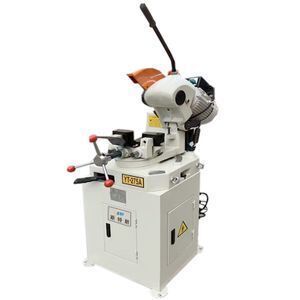

Manual Design 11inch Circular Cold Saw Machine CS-275A For Cutting Metal Pipe Popular in Motorcycle/Furniture Making

Supplier: Xiamen Strongtech Co., Ltd.
Region: Fujian, China
Contact: Ms Sophie Zhuang
Price: $698.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Voltage:	380V;
Delivery Detail:	0 days after payment;	Weight:	220;
Certification:	CE, ISO9001;	After-sales Service Provided:	Free spare parts,Online support,Video technical support;
Single package size:	80X70X135 cm;	Condition:	New;
Round bar max size:	20mm;	Adjustment angle:	45°;
Round pipe max size:	80mm;	Rated Power:	2.0/2.4KW;
Square pipe max size:	50mm;	Single gross weight:	200 KG;
Dimension(LWH):	560x800x1300;	Warranty:	ONE YEAR;
Type:	Pipe Cutting Machine;	Brand Name:	STR;
Square bar max size:	20mm;	Key Selling Points:	High-accuracy;
Selling Units:	Single item;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ;
Place of Origin:	Fujian China (Mainland);	Package Preview:	https://sc01.alicdn.com/kf/HTB1LMl.XdjvK1RjSspiq6AEqXXas.jpg_640x640.jpg;

Certifications

Desription

MODEL		ST-275A
Main Drive Motor		220V Single Ph. (opt.)
		H Type 3.0HP/1.5HP(2/4 Pole) 50/60 HZ (std.)
		L Type 1.5/1.0 HP(4/8 Pole) 50/60 HZ (opt.)
Blade Speeds		H Type:60HZ 120/60 RPM,50HZ 100/50 RPM (std.)
		L Type:60HZ 60/30 RPM,50HZ 50/25 RPM (opt.)
Head Swivel		90°/45°
Clamping Vise		Double
Coolant Pump Motor		40W
Saw Blade Size	Diameter (mm)	HSS Ø250 - Ø275(10"-11") Standard Ø250
	Bore (mm)	32
	Pin Holes (mm)	2xØ11xPCD 63
Air Pressure (Consumption)		--
Hydraulic Pump Motor		--
Operation Pressure		--
Machine Dimensions (LxWxH) (mm)		560x800x1300
Packing Dimensions (LxWxH) (mm)		650x880x1450
Packing Dimensions (inch)		30"x35"x58"
Net Weight		180 kgs
Gross Weight		200 KGS

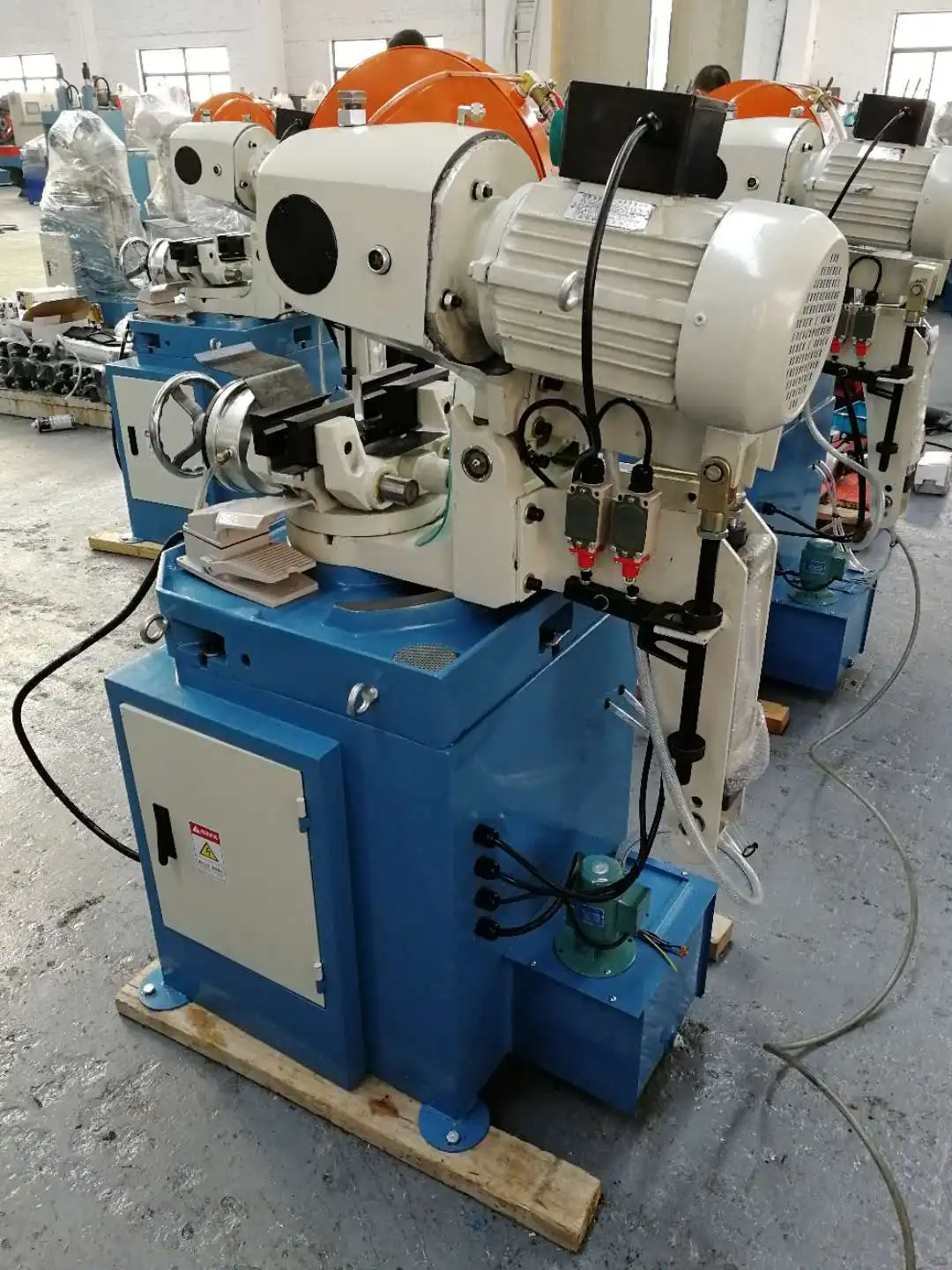

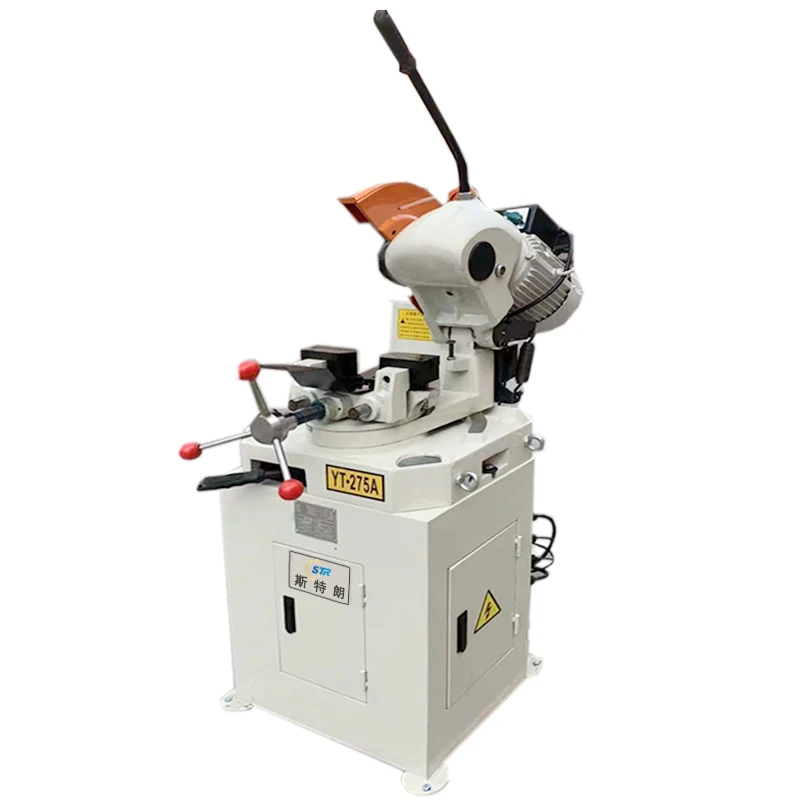

YT275 Pneumatic Cold Saw is a high quality saw that brings both price and quality to the end user. The STR has been synonymous with quality sawing machines for years.now offering a complete cold saw line. The YT275 robust sawing head rotates 45 degrees left and right for miter cuts. Slotting or lengthwise cuts can be accomplished since the saw head and vise move. Clean cuts are attained with the manual vise and anti-burr clamps on both sides of the cut. Repeatable saw lengths are carried out with the included material stop rod for multiple cuts of the same length. Flood coolant lubrication of the blade and material is handled by the submergible coolant pump.
