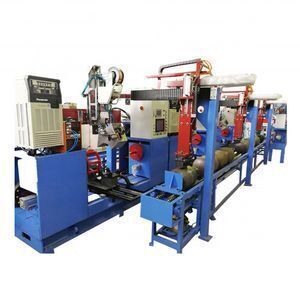

Automatic LPG gas cylinder welding machine

Supplier: Wuxi Longterm Machinery Technologies Co., Ltd.
Region: Jiangsu, China
Contact: Ms Kelly Huang
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimensions:	17508001500mm;	Product name:	Automatic LPG gas cylinder welding machine;
Payment Terms:	L/C,D/P,T/T,Western Union;	Condition:	New;
Thickness of workpiece:	2.5~8mm;	After-sales Service Provided:	Field installation, commissioning and training;
MOQ:	1 set;	Customised:	Available;
Place of Origin:	Jiangsu,China;	Certification:	CE;
Port:	Shanghai;	Brand Name:	Longterm;
Packaging Detail:	Standard export packing applied to Automatic LPG gas cylinder welding machine;	Supply Ability:	20 Set/Sets per Year;
Warranty:	1 year;	Machine Type:	Abrator;
Application:	LPG Cylinder, solar water heater tank;	Workpiece material:	stainless steel, carbon steel;
Length of workpiece:	<2000mm;	Brand Name:	HLT;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops;

Product Description

Advantages

A. Reducing labour cost - Our machines can run more than 15 years, only 1 person for taking care of 6 sets of circumferential welding machines.
B. Reducing electricity - welding speed is only 60 seconds for one circle
C. Reducing welding wires - (only one circle welding is necessary).
D. Longer operation life
E. Less spatter - We paid about 2 million for Patent of YD-500GS Panasonic welding machines

Detailed Images

Automatic circumferential seam welding machine

Payload capacity:200kg
Wall thickness:2.0-4.0mm
Rotation speed0.05-0.5rpm
Diameter coverage:OD300-OD500mm
Speed regulation:AC frequency conversion
Suitable for work-piece length:1500mm
Clamping:pneumatic cylinder

Support:manual operation support

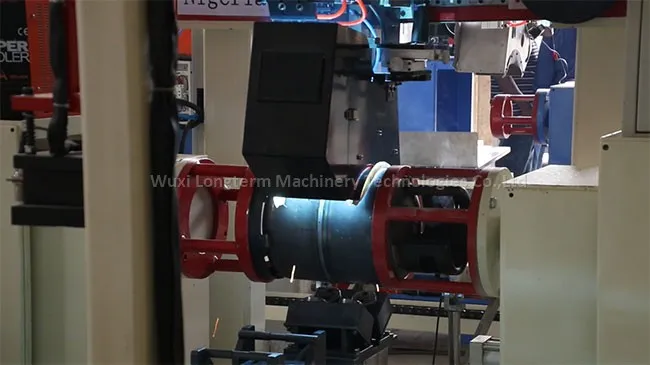

Auto double head circumferential welding machine

Cylinder thickness: 4mm
speed: 250pcs/8hrs

L≤2000mm
Dia.: 250~800mm
Welding method: MIG welding

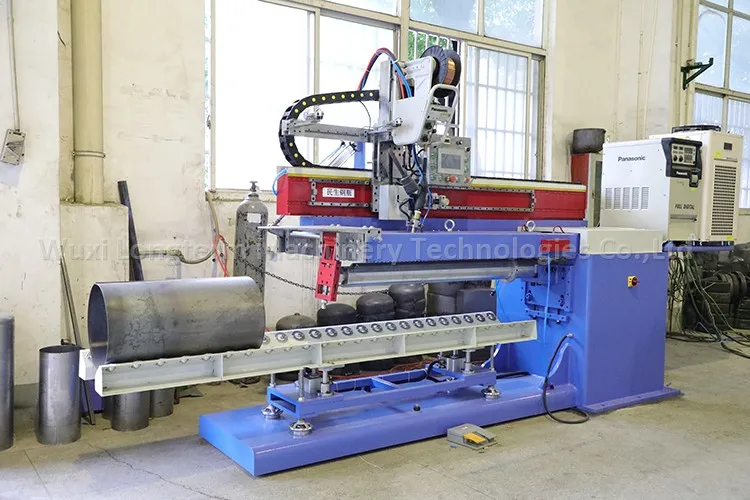

Auto longitudinal seam welding machine

Effective length:1500
Clamping:pneumatic with keyboard and clamping board
Clamping control:footswitch/remote control
Trolley motion speed:100-500mm/min
Wall thickness:2.0-4.0mm
Mandrel cooling:external water cooling
Cable assembly:drag chain

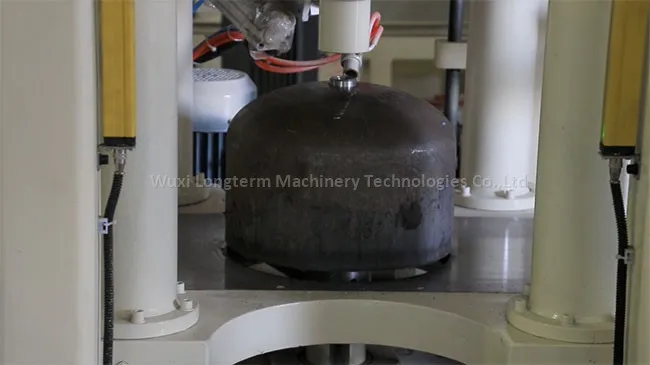

Auto socket welding machine

Cylinder thickness: 2.65mm

Speed: 28s/pcs

Auto handle welding machine

Cylinder thickness: 2.65mm
Speed: 28s/pcs

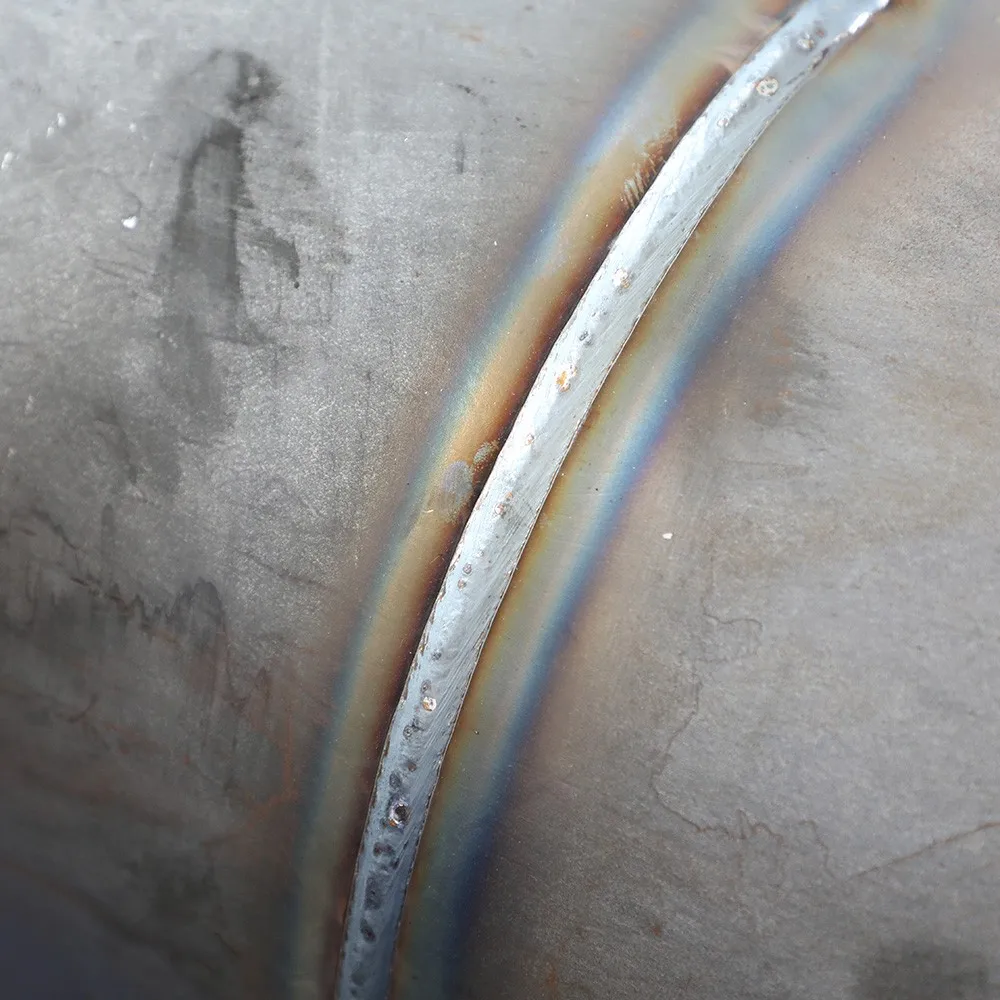

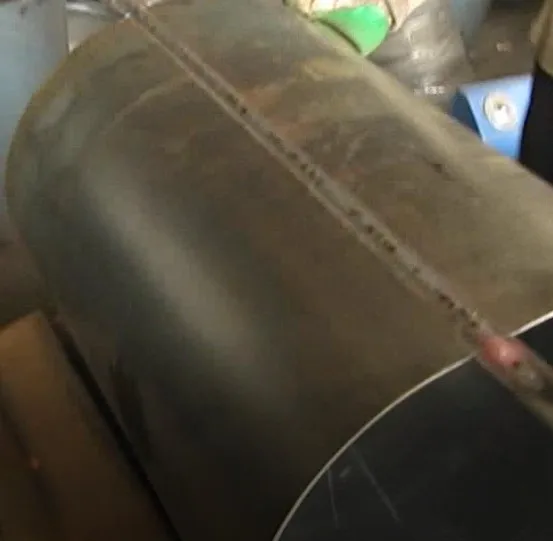

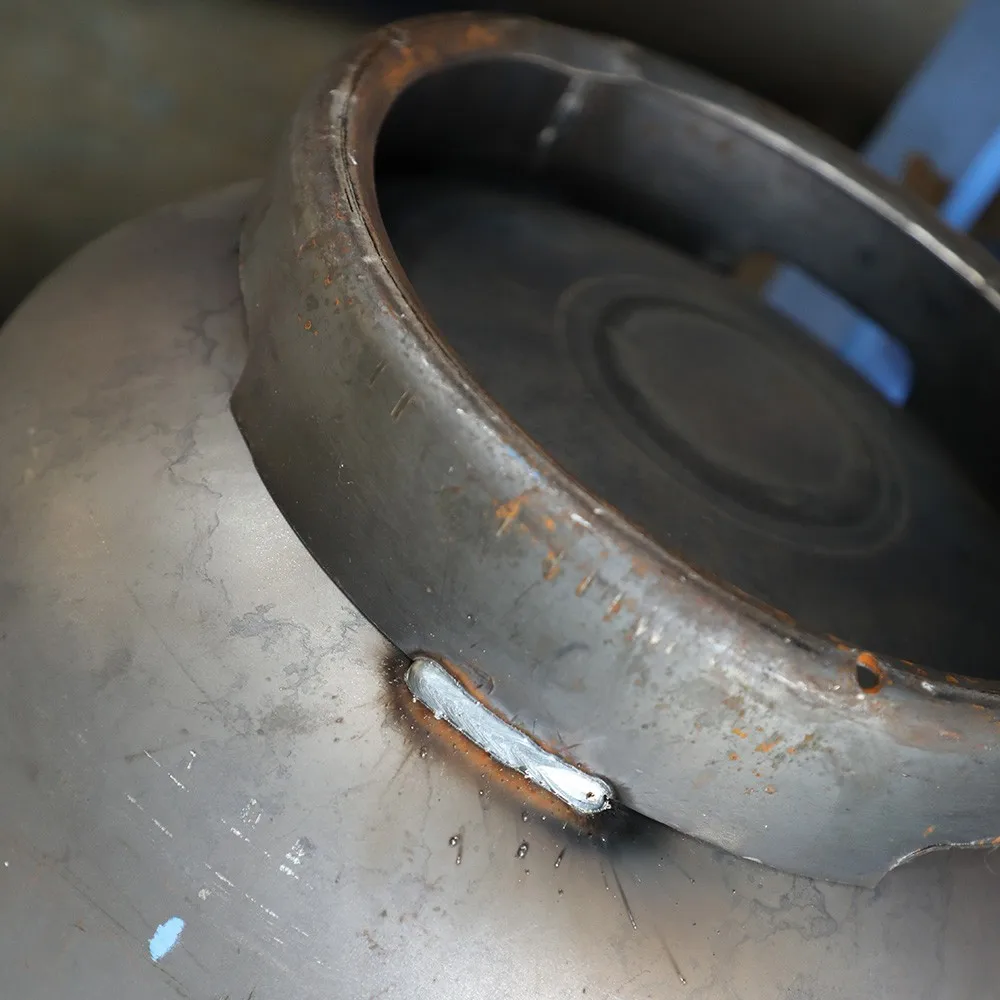

Welding Details

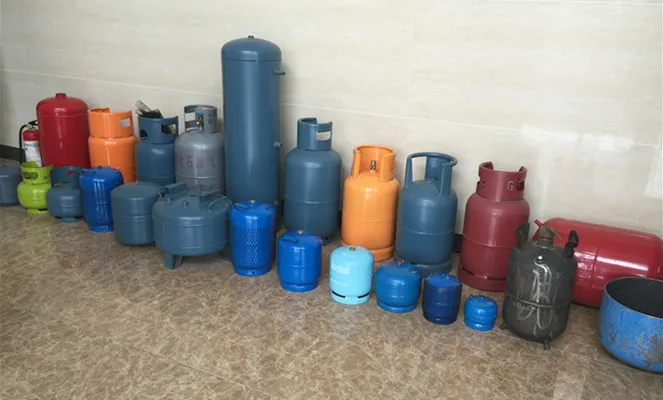

LPG gas cylinder

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.

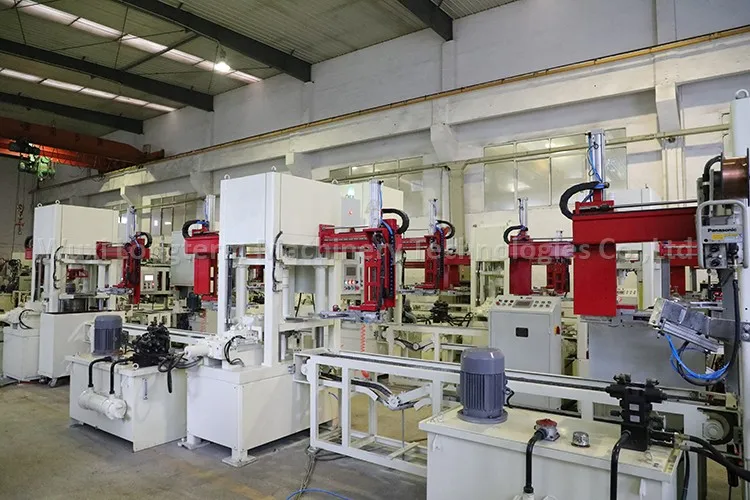

* View our Factory.

After-Sales Service

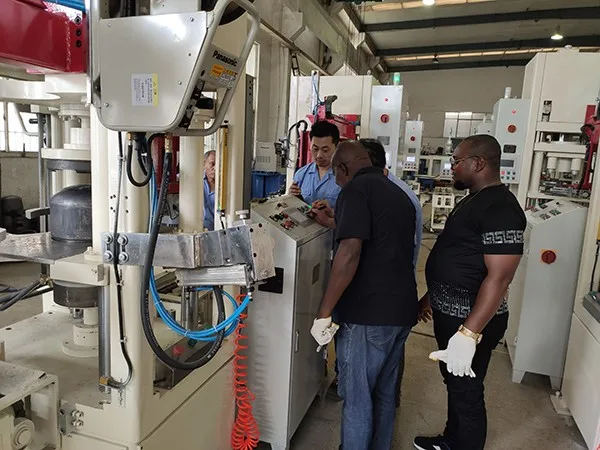

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Our customers

FAQ

Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?

A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

Enable us provide the most suitable proposal for you,please tell me following details:

1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
