Selling Units: | Single item; | Single gross weight: | 8.5 KG; |
Max Material Thickness: | 10mm; | Frequency: | 50 /60 Hz; |
Welding Current: | 200 Amps; | Brand Name: | Herocut; |
Package Type: | Packed use Carton; | Single package size: | 44X26X34 cm; |
Welding Process: | TIG,Stick; | No-load loss: | 40W; |
Color: | Red; | Place of Origin: | Guangdong China; |
Voltage: | AC220V±15%; | Dimension (L x W x H): | 450*270*350 mm; |
Weight: | 8.5kg; | Rated Output Current: | 200Amps; |
Model Number: | Tig200P; | For Material Type: | Stainless Steel; |
2T/4T: | Yes; | After-sales Service Provided: | Engineers; |
Function: | TIG/ARC; | Brand: | Herocut; |
Description

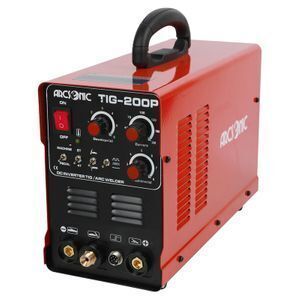

This machine is TIG200P with pulse, Can easy weld stainless steel, Function with 2T/4T, MMA/TIG, Pulse, Also can work with pedal, Current range from 10 to 200Amps can be adjust, Dlowslope from 0 to 6 second, Post time from 2 to 8 second, All of these function help user easy weld.
Specifications:
Model: | TIG200P |
Input voltage | AC220V±15% |
Frequency | 50/60 Hz |
Rated input current | 43.6/28A |
No-load voltage | 56V |
Ouput current range | 10-200A |
Rated output voltage | 28/18V |
Duty cycle | 60% |
No-load loss | 40W |
Arc starting | HF |
Efficient | 80% |
Power factor | 0.73 |
Insulation glass | F |
Protection class | IP21 |
Net weight | 8.5 kgs |
Packing dimension | 440X260X340mm |
Welding material | carbon stainless, low-alloy steel |
Plate thickness | 0.3 – 1 mm |
Welding process | DC TIG / ARC Pluse 3 in 1 |
Package Content:
1 X Earth clamp
1 X Electrode holder
1 X Gas hose
1 X Tig torch 4 meters length
1 X Pack of tips and nozzles
