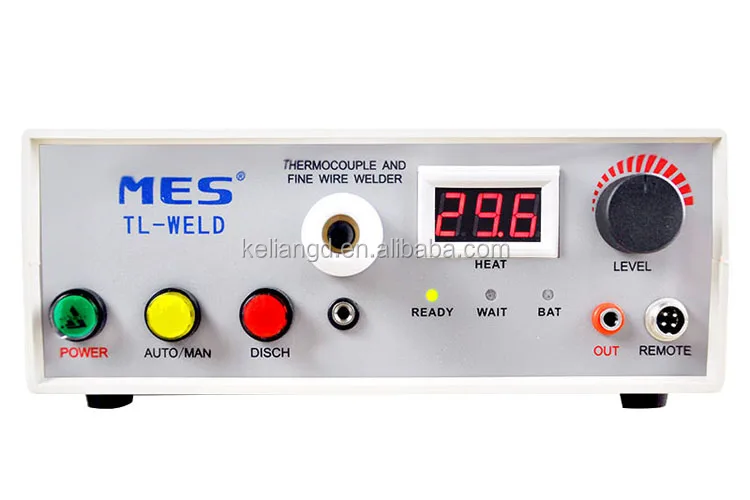

TL-WELD Thermocouple spot welder rechargeable thermocouple welding machine

Brief Introduction-Thermocouple spot welder

The TL-WELD thermocouple spot welder is specially produced according to the needs of thermocouple welding. It has high quality welding performance and convenience in use, and it also has high cost performance.

Steps for usage-Thermocouple spot welder

First, there is argon gas welding:

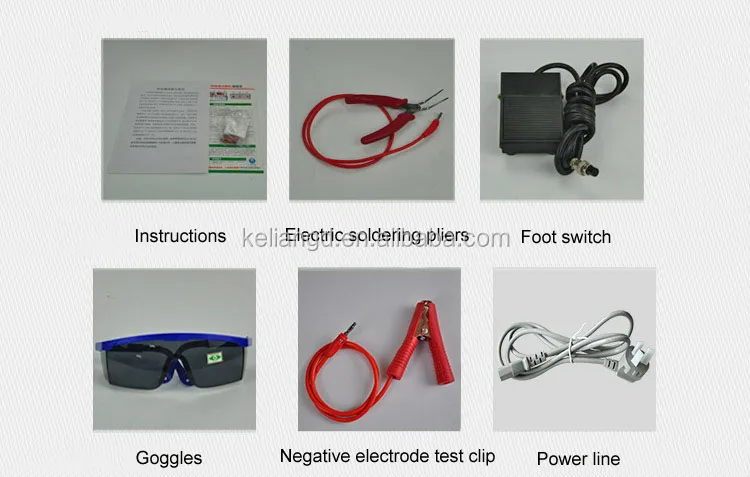

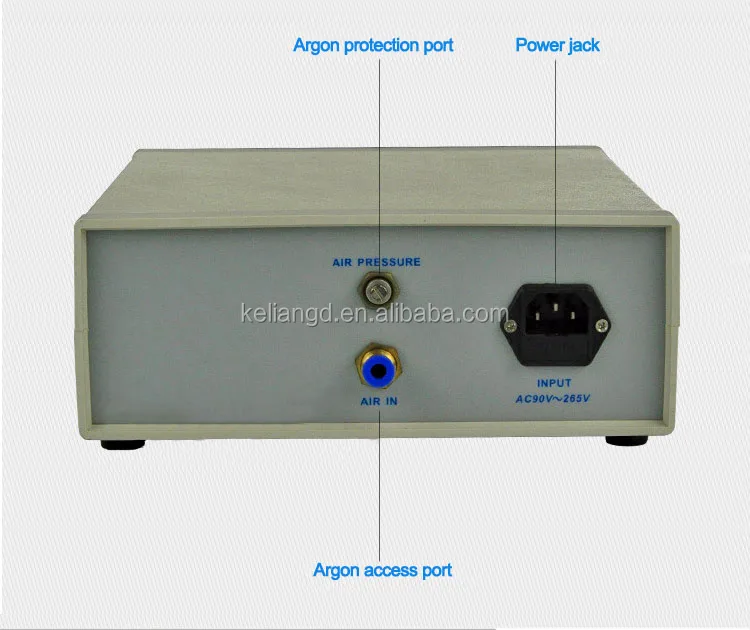

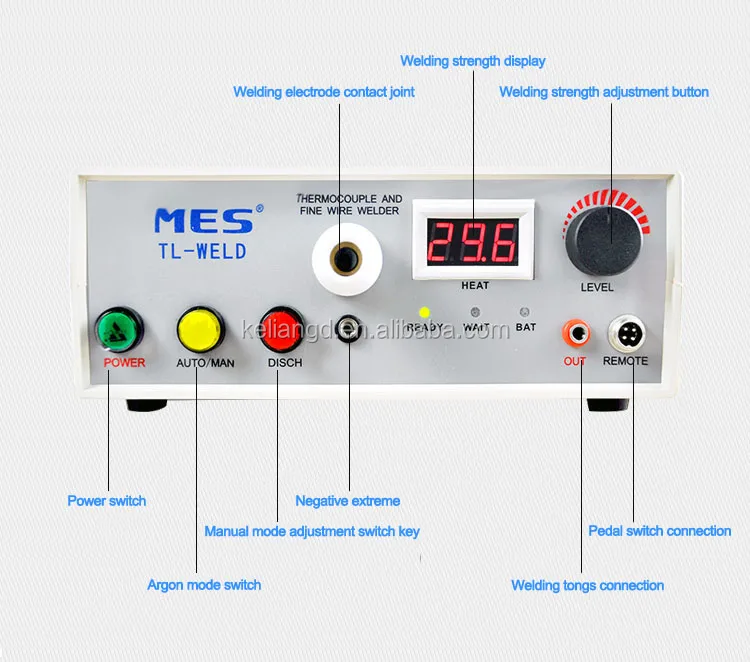

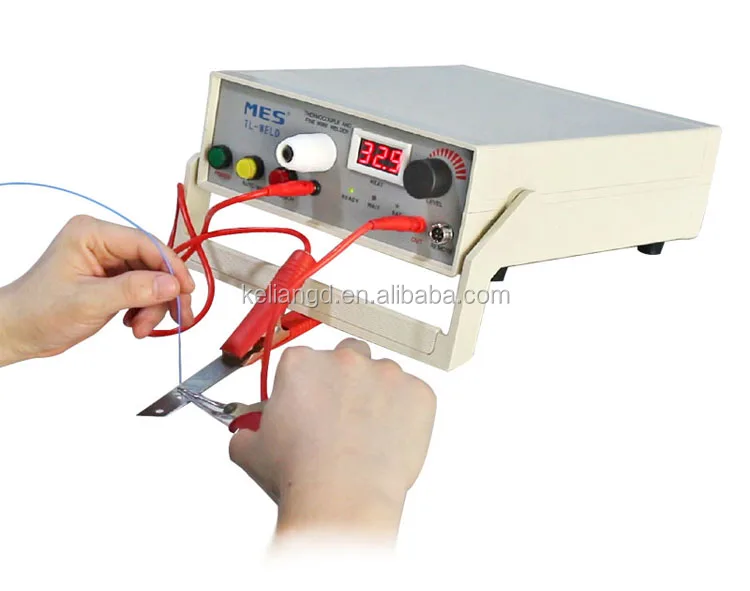

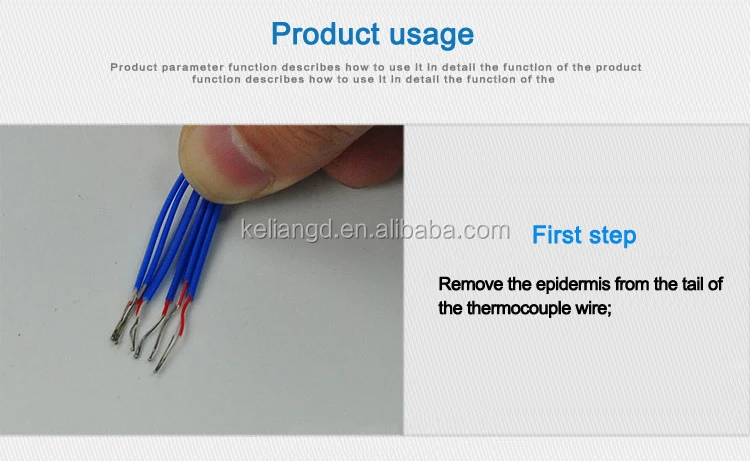

First connect the argon gas line, connect the power cord and plug in the power supply (this step is not used when using the built-in power supply), turn on the power switch POWER button, adjust according to the size of the thermocouple wire to be soldered. Required thermal energy (adjust the LEVEL knob positioning), select the AUTO/MAN button (usually use the MAN file), turn on the argon and adjust the AIR PRESSURE knob to the appropriate position, connect the foot switch (connected to the REMOTE port), and plug in the welding tongs. (Plug into the OUT output), wear protective glasses, and use the welding tongs to clamp the two bare thermocouple wires to be welded at the same time. (Note: the two bare thermocouple wires clamped at this time should be patched together, and the outer ends are flat. Qi, at the same time, the outer end of the wire is kept at a certain distance from the clamp nozzle. When the distance is short, the pliers will be stained when the wire body shrinks into a ball during welding. If the distance is long, the bare wire between the solder balls and the off-line body will be too long and destroyed. The appearance is too long and the bare wire is too long to be short-circuited to affect the measurement. Finally, the foot switch is activated and the clamped thermocouple wire is touched on the welding electrode for welding, and the perfect solder ball comes out.

Second, no argon gas welding:

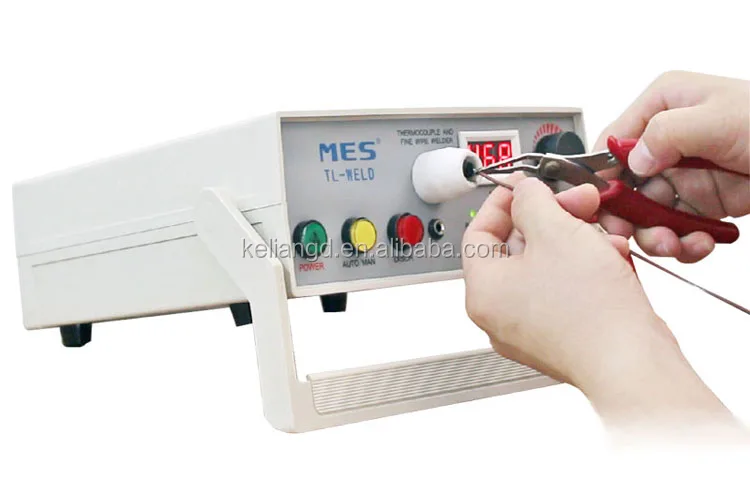

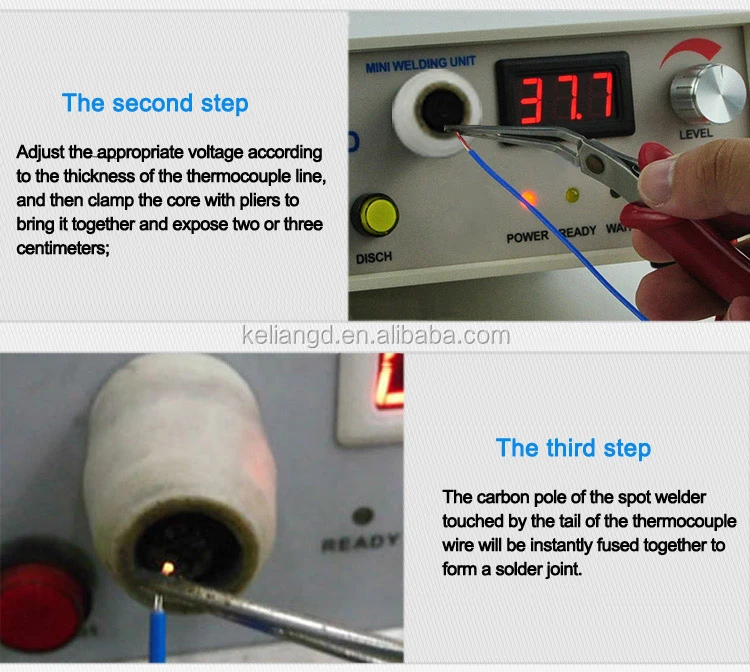

connect the power supply, turn on the power switch, adjust the LEVEL knob positioning, plug in the welding tongs, put on the safety glasses, clamp the two bare thermocouple wires to be welded, and finally put the clamped thermocouple wire The welding electrode is bumped and welded.
