Temperature range: | 50℃~120℃; | Packaging Detail: | 1pcs per inner box ,6pcs per outer carton box; |
Condition: | New; | USB Output: | 5V 1A; |
Brand Name: | YIHUA; | Temperature stability: | ±2℃(Static state); |
Display mode: | LED Display; | Power: | 370W; |
Showroom Location: | None; | Vacuum pressure: | 0.05MPa; |
Warranty: | 1 year; | After Warranty Service: | Video technical support; |
Place of Origin: | Guangdong China; | After-sales Service Provided: | No after-sales service; |
Payment Terms: | T/T,Western Union; | Vacuum pump power: | 12W; |
Port: | GUANGZHOU; | After-sales Service Provided: | Online support; |
Applicable Industries: | Machinery Repair Shops,Home Use,Retail,Construction works ; | Local Service Location: | None; |
Q'TY: | 6pcs/ctn; | outer box size: | 44.5*40.2*55.5cm; |

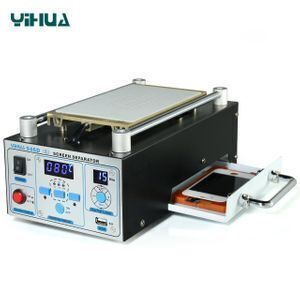

YIHUA 946D-III lcd touch screen glass separator machine to Repair Split Glass Touch Screen Digitizer
Product Features
1. With PID programmable temperature control technology and the highest precision PID input program, temperature is both adjustable and stable while deviations are minimized.
2. The heated aluminum is smooth and flat, ensuring a uniform surface temperature.
3. Built-in vacuum, strong suction, low noise, long life.
4.It has 5V 1A USB mobile phone charging interface, suitable for Apple, Samsung, Millet, Huawei and other mobile phone charging.
5. With a UV curing UV lamp, do not worry about the phone screen glue did not dry.
6.This device has the following user-friendly design features:
A. Celsius/Fahrenheit temperature display:
Designed to meet the market needs of different regions, the temperature display function can be set to display either Celsius or Fahrenheit, depending on local practices.
B. Temperature correction feature
The surface area of the aluminum being relatively large, its temperature may vary slightly in response to large changes in ambient temperature. The temperature correction feature compensates for this potential discrepancy by correcting the temperature.
7.The double-sided internal SMT manufacturing process boasts clean craftsmanship. The signal flow is clear, and the machine is both stable and safe, further improving its performance and adaptability to various harsh environments.
Technical data
Power 430W
Temperature range 50℃~120℃
Display mode LED Display
Temperature stability ±2℃(Static state)
Vacuum pump power 12W
Vacuum pressure 0.05MPa
Aluminum to ground resistance <2Ω
Aluminum size L200mm*W 110mm
Overall dimension L1300*W160*H90mm ±3mm
UV curing lamp power 12W
USB Output 5V 1A
Operating temperature 0~40℃/32 ℉~104 ℉
Storage humidity 35%~45%
Package details as below:
QTY:1PCS /INNER BOX
Inner box size:38*21*17cm
QTY:6PCS/outer carton
Outer carton size:44.5*40.2*55.5cm
Goods wegith:4KG/PCS
Outer carton G.W.:22.71KG/CTN
Company Information Display
Guangzhou YIHUA Electronic Equipment CO., Ltd was founded in the 1980s, which transferred from
a large scale army enterprise called 083 base. It has become the biggest and most powerful
manufacturer for making professional rework station and soldering station and DC power supply and
our sales all over the world.
Certification of our products
We have passed the ISO9001-2008 international quality management system and our products have
passed the European CE certification, the United States,ETL certification, SAA certification, SGS
certification, the depth of export certification and Korea KC certification and so on.
Chinese Soldering Industry Standard Maker
2016,our company was invited to attend Standard Committee for Household Electrical Appliances--Chinese Soldering Industry Standard Set.
Complete Quality Test System
All of our products are passed testing by professional person before shipping, let you don't need to worry about the quality.
Our warranty
*Credit Safeguard
GuangZhou YiHua Electronic Equipments Co,. Ltd was signed a contract with Alibaba and paid a large deposit, make buyers fee l comfortable buying
*Factory advantage
Factory D&R / production/ sales/ and sales service together.
Manufactory sell directly,the goods are in plenty supply,delivery date fast,good compete price You could arrange to ship the goods by your self , or ask we help you arrange to ship. If we help you arrange to ship. Before quote the shipping freight, we need to know which model and quantity you are asking. We will according your detail address, order model and quantity to advise you ship by sea or, by air ,or by Express. As usual, we are using HongKong DHL to ship the small order..
*Delivery date
Over 100~over500pcs are 20days will ship out. Over 1000pcs are 30days .
If the material not enough or we have some customer queue up our products before you,
we will discuss with you the shipping date. If you want the delivery date faster than that day, please inquiry us, we will try to do it as your request.
*Warranty policy
One Years warranty
As usual, the shipping fee are high. if return China to repair are not worth the money. So we could support technology and give you the spare parts along with the product .
Note: warranty does not cover wearing parts:, for example :iron heater, gun heater ,iron tips.
*Products discount
as usual we quote three price for each model :sample price, over 60pcs price, over 500pcs price.
Those price are calculate our produce cost, as you know big order are less margin to sell. we hope take win-win business with both.
*Warm-heart note
1.If products upgrade or quality improve to change the technique parameter, the factory will not further notice.
2.If the customer haven't special request, the product in accordance with factory's setting quality standards to produce.
