Input voltage: | 110~127V / 220~240V 50/60Hz optional; | After-sales Service Provided: | Video technical support,Online support; |
Key Selling Points: | Multifunctional; | Core Components: | mianboard; |
Outer carton size: | 43.8*32*66.5cm; | Outer carton quantity: | 6pcs/ctn; |
Type: | Soldering Station; | Machinery Test Report: | Provided; |
Warranty of core components: | 1 Year; | Place of Origin: | Guangdong China; |
After Warranty Service: | Video technical support,Online support; | Certification: | CE, RoHS, FCC, etc; |
Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,Retail,Printing Shops,Construction works ; | Condition: | New; |
Airflow: | 120L/min; | Weight (KG): | 3.6 KG; |
inner box size: | 31.5*22*22cm; | Dimensions: | 31.5*22*22cm; |
Showroom Location: | none; | Brand Name: | YIHUA; |
Payment Terms: | L/C,T/T,Western Union; | Usage: | phones repairing; |
Warranty: | 1 Year; | Port: | GUANGZHOU; |
Video outgoing-inspection: | Provided; | Outer carton weight: | 22kg/ctn; |
Marketing Type: | Hot Product 2019; | Local Service Location: | none; |
Weight: | 3.6kg/pc; |

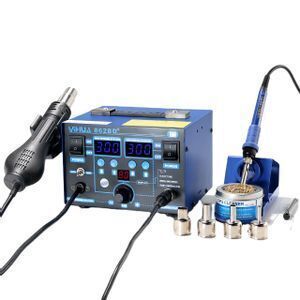

Product features:
1.Celsius/Fahrenheit Display Temperature Function: To satisfy market demand in different regions, the Company has designed a temperature display mode.
2.The air gun/soldering iron features -50℃ to +50℃ temperature compensation
3.The air gun features manual/automatic work mode conversion
4.The soldering iron features a sleep function that can be set from 0-99 minutes
5.Greater air volume adjustment convenience with an hot air gun adjustment range of 20-80.
6.Temperature controls utilize core technology, adopting microprocessor-PID programming for high-speed 100ms real-time
tracking of air gun outlet temperatures and soldering iron tip temperatures, with real-time calibration! Outlet temperatures are extremely stable.
7. Soldering iron handle wire employs a high-temperature silicone wire
(undamaged when 300o soldering tip contacts silicone wire for 30 seconds); the heating element employs an imported high-power heating element for fast temperature compensation, particularly suitable for desoldering
crude terminals, large joints, and difficult to reach spots, not to mention general solder joint
desoldering.
8.The air gun handle wire similarly employs a high-temperature silicone wire, a silent brushless motor fan, stainless steel tubing, and a cutting-edge ceramic framed heating core for extremely stable and reliable performance!
9..Machine components are equipped with self-detection functionality
for complete, intelligent overheating, short-circuit, open-circuit,
overload, and fault indication and protection
10.The back of the machine features a main power supply switch.
For added energy savings and greater safety, turn off the main
power supply switch when the machine will not be used for a long period of time.
11.The unique ABS fan anti-lock function allows for maximum safety.
When the fan unexpectedly ceases function and work stability can no
longer be controlled, the system will immediately cut off the air gun power
supply to ensure safety of the user and the environment.
Machine parameter
Machine parameter |
||
Total Power |
750W |
|
300℃ Constant Temperature Power (High-Speed PID Programmed to Energy Savings) |
250W±10% |
|
Operating Environment |
0~40℃ Relative humidity<80% |
|
Storage temperature |
-20~80℃ Relative humidity<80% |
|
Dimensions |
31.5*22*22cm |
|
weight |
3.5KG |
|
Performance Parameter |
Hot air gun |
Soldering iron |
Operating Voltage |
AC 220V±10% 50Hz |
AC 26V±10% 50Hz |
Output power |
650W |
75W |
temperature range |
100℃~480℃ |
200℃~480℃ |
Air Supply Mode |
Brushless-Motor Fan |
--- |
airflow |
120L/min(max) |
--- |
Temperature stability |
±2℃ (static) |
±2℃ (static) |
Display Mode |
Red LED Digital Display |
Red LED Digital Display |
Calibration Mode |
PID Digitally Programmed Calibration |
PID Digitally Programmed Calibration |
Temperature correction |
PID digital program proofreading |
PID digital program proofreading |
Application Scope
1) Electronic product assembly for industrial production
2) Product development for scientific research departments
3) Repair industry for electronic product inspection and maintenance
4) Soldering operations for electricians in various enterprises and institutions
5) Electronic assembly for electronic technology enthusiasts
6) Student skills training for a variety of electrical college
