crawler crane XGC55 used crawler crane cheap price

Product details
After-sales Service Provided:Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts;Main boom hoisting time:28.6t;
Moving Type:crawler;Packaging Detail:NUDE PACKING FOR SHIPPING;
Brand Name:CANMAX;Supply Ability:50 Unit/Units per Month;
Place of Origin:Jiangsu China;Hydraulic tank capacity:13m~52m;
Certification:CE/ISO;Rated Loading Capacity:55t;
Min. rated radius:12.04m*3.45m*3.36m;Application:construction;
Rated power of engine:155kw;Span:/;
Rated Lifting Moment:203.5t.m;Condition:New;
Payment Terms:L/C,T/T;Warranty:2000 WORKING HOURS;
Min. clearance from the ground:1.37km/h;Feature:Jib Crane;
Port:CHINA PORT;Width of track shoe:125m/min;
Max. gradeability:0.3;Travel speed with no load:2.45r/min;
Ground pressure:0.06MPa;Applicable Industries:Construction works ;
Max. Lifting Height:/;

Buying Guides

x cmg crawler crane XGC55 used crawler crane cheap price

Product Description

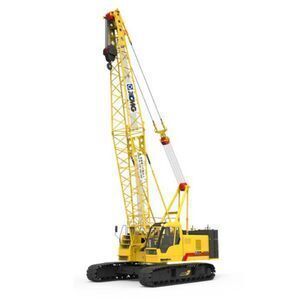

XCMG XGC55 crawler crane is a new generation of crawler crane product successfully developed by XCMG following QUY55 crawler crane. While inheriting the advantages of the old products, the new generation pays more attention to improving the performance, operating efficiency, convenience for disassembly and transportation, and comfort of operation. The system is mature and reliable, and the safety devices are complete.

Main Parameter



ItemsUnitParameter value
 Performance parameters *
Max. rated lifting load of main boom(t)55
Max. rated lifting load of fixed jib(t)11.4
Max. rated lifting load of luffing jib(t)
Max. lifting load moment(t.m)203.5
Max. lifting load of tower jib(t)
Max. rated lifting load of boom single pulley (t)6
Max. rated lifting load of special jib(t)
Size *
Main boom length(m)13~52
Main boom luffing angle(°)-3~80
Fixed jib length(m)7~16
Tower jib length(m)
Max. size of single unit for transport (L×W×H)(m)12.04×3.45×3.36
Installation angle of fixed jib(°)10,30
Special jib length(m)
Speed *
Max. single line speed of hoist system(m/min)125
Max. single line speed of main luffing system(m/min)87/78
Max. single line speed of jib luffing system(m/min)
Max. slewing speed(r/min)2.45/2.2
Max. travel speed(km/h)1.37/1.22
Gradeability(%)30
Average ground pressure(MPa)0.06
Max. single line speed of tower jib luffing system(m/min)
Max. single line speed of SL luffing system(m/min)
Engine *
Model-SC7H210.1G3/QSB6.7
Engine power(kW)155/153
Emission-National III stage/Europe III
Mass *
Crane overall mass(t)46.3(Main hook,13m boom)
Max. weight of single unit for transport(t)28.6
Packaging & Shipping

We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.

Company Information

Our factories have passed the certification of relevant organizations.

For example, ISO, CNAS, IAF and so on.

Products have also passed CE, GHOST certification and so on.

Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.

We have received more than 1000 clients and training engineers from more than 100 countries around the world.

Our Services



 we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have  more than 15 years experience in this field already.

(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.

(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.

(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.

(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.

(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.



We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Iran, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.

FAQ

Which countries do you export to?

Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, Iran, UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.

What is the proportion of your products exported?

75% of our products are exported to all over the world.

What is the payment term?

Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

What kind of logistic service do you supply?

A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.

B. Term: FOB,CIF, DAP, to door service, etc.

What spare parts can you supply?

All kinds of spare parts of XCMG, SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SANY, SDLG, LONKING, XGMA, CUMMINS ENGINE, ZF GEAR BOX, etc.

Contact Us

Send Message or Chat Now for Best price!!!

CANMAX, as a professional one-stop machinery equipment supplier, we always keep the service philosophy " Running On Faith, Keep Promise, Focus On Customer Concerns, Walk To Success With Customer ", devote ourselves to what customer needs, and provide products and service with high performance and good price.



Please let us know the main use, brand, power and other requirements of the purchased products.

We will recommend the related products to you.



↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
