Continous to work: | BDC1800mAh about 10 hours; | Field Of View: | 1"30'; |
Packaging Detail: | Good Quality Surveying Instrument TD6 Series Optical Theodolite One unit/plastic bag in the carton box.; | Port: | Shanghai/Ningbo/Shenzhen; |
Weight: | 3.5KGS; | Carton Size: | 0.48*0.28*0.36m; |
Display: | LCD; | Place of Origin: | Jiangxi China; |
Accuracy: | 2"/5"; | Magnification: | 30X; |
Supply Ability: | 2000 Set/Sets per Month; | Model: | TD6-1E/1; |
Model Number: | TD6; | Brand Name: | Theodolite; |

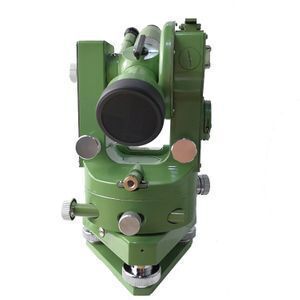

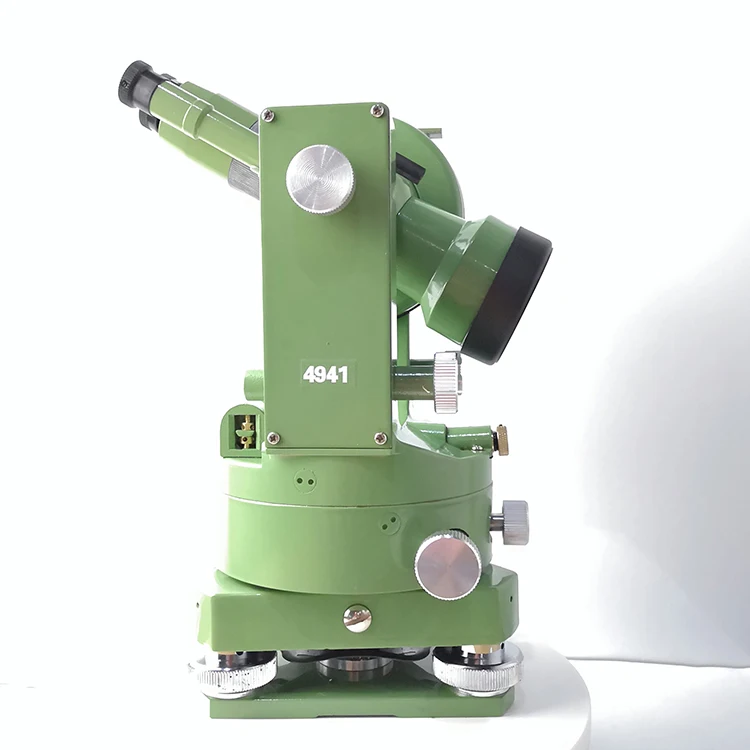

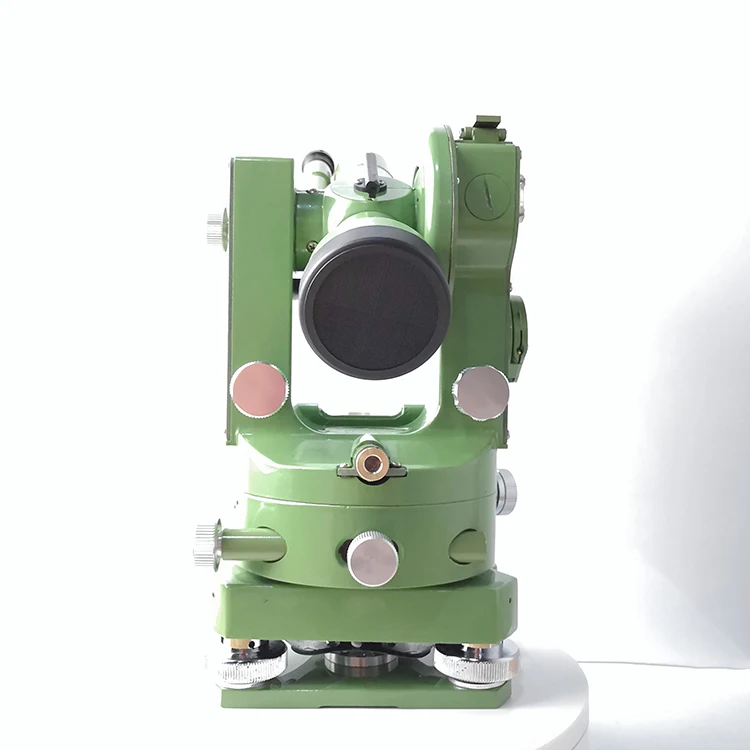

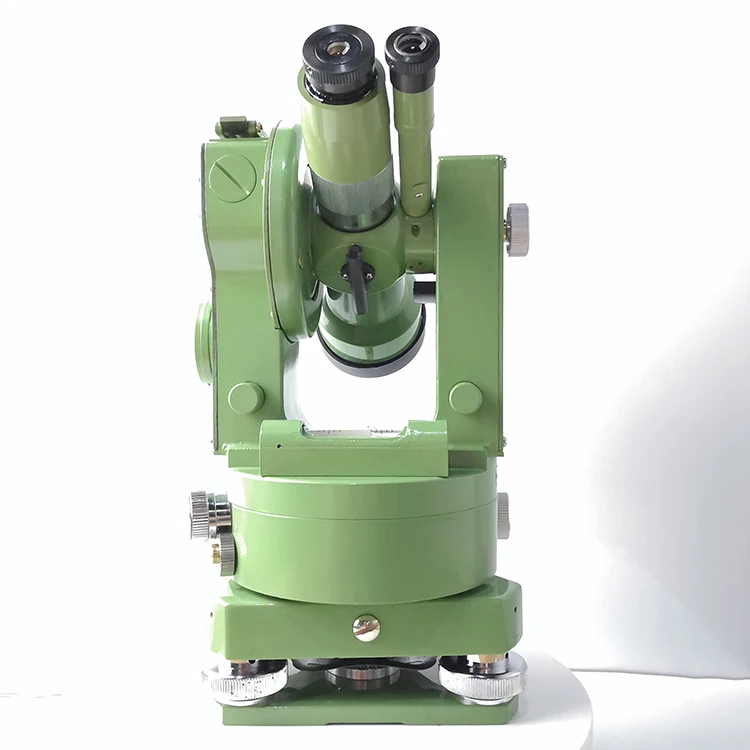

Product name: | Electronic Laser Thedolite; | Image: | Erect; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Features:
* Vertical compensator, anti-high-frequency vibration
* Color reading field, easy to read
* Reading resolution for horizontal and vertical angle is 1'
* Erect or reverse image, universal tribrach can be used
* The unique design of air damping structure, stable and reliable
Model No | TD6E | TD6 | |
Telescope | Image | Erect | Inverted |
Magnification | 30X | 25.9X | |
Objective aperture | 40mm | 36mm | |
Field of View | 1°20' | 1°30' | |
Shortest viewing distance | 2.0m | 1.5m | |
Stadia ration | 100 | ||
Addition Constants | 0 | ||
Reading Microscope (Tape Reading) | Minimun count | 1" | |
Minimum grad | 1' | ||
Estimate | 0.1' | ||
Level Bubble | Alidade | 30"/2mm | |
Length bubble | 30"/2mm | ||
Circular bubble | 8'/2mm | ||
Optical Plummet | Magnification | 0.85~1.7X | |
Field of View | 4° | ||
Viewing Distance | 0.8~1.5m | ||
Net Weight | 3.5kg | 3.1kg |
