Supply Ability: | 30000 Sets per Month; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
Package Preview: | ; | Weight: | 4.7KG; |
Material: | Brass; | Magnification: | 30x; |
Place of Origin: | Jiangxi, China; | Battery: | 3.7V Chargeable Lithium Battery; |
Accuracy: | 2"/5"; | Field Of View: | 1"30'; |
Display: | LCD; | Packaging Detail: | Hot Sale Cheap Electronic Theodolite Waterproof LCD Display GYRO Theodolite packing in one carton; |
Model: | TD3; | Port: | SHANGHAI/SHENZHEN/NINGBO; |
COLOR: | Yellow; | Model Number: | TD3-2; |

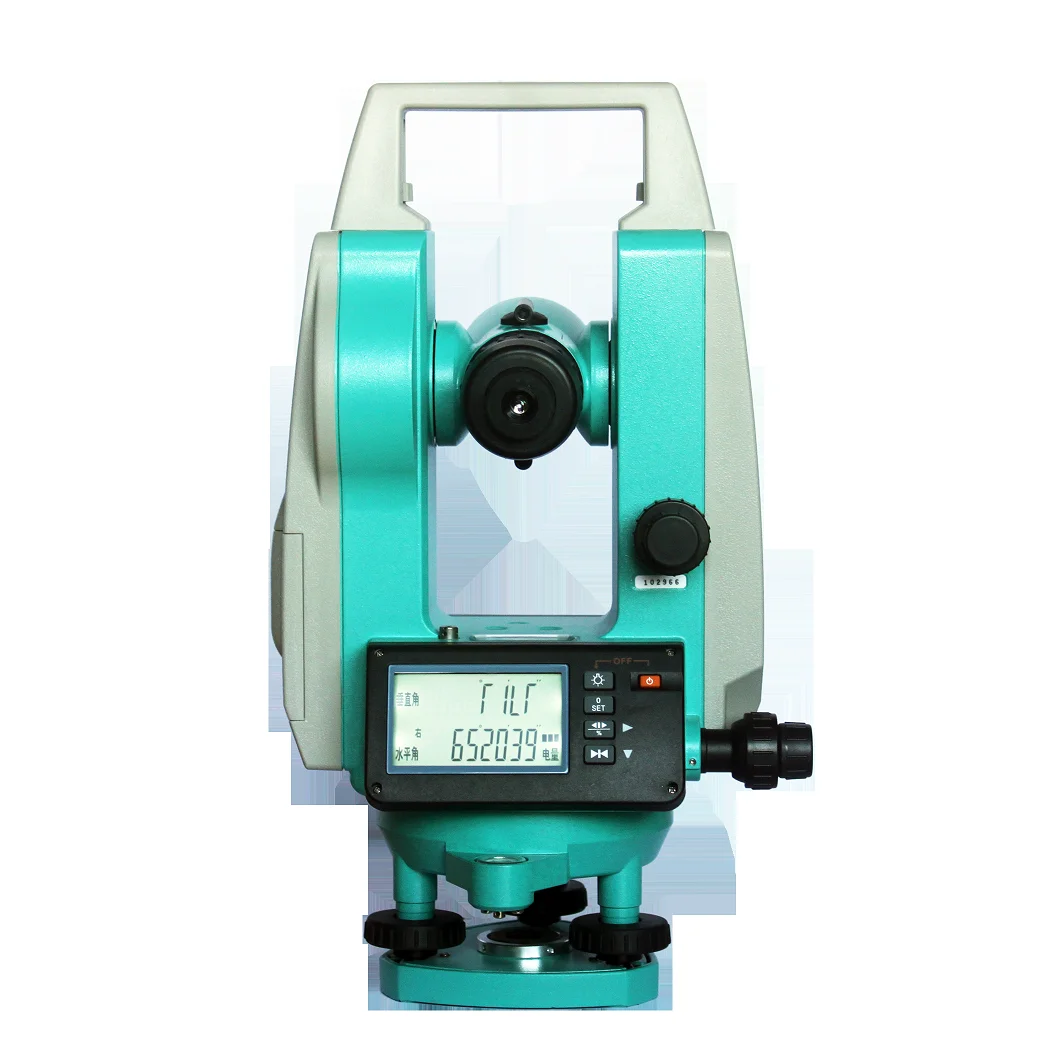

Brand Name: | Theodolite; | Product name: | Electronic Thedolite; |
Models and technical parameters | TD3-1 | TD3-2 | TD3-3 | TD3-53 | TD3-22L | |
Telescope | Imaging | Erect |
||||
Magnification | 30X | |||||
Objective aperture | 45mm | |||||
Field of view | 1 30” | |||||
Shortest viewing distance | 1.4m | |||||
Stadia ratio | 100 | |||||
Resolution | 3” | |||||
Angle mensurement | Minimum count | 1”5” | ||||
Mode of detection | H:double side v:double side | |||||
Accuracy | 2” | 5” | 2” | |||
Angular unit | DEG/MIL/GON | |||||
Display | LCD double side | |||||
Compensation | Compensation range | ±3' | ||||
Precision of plate vial | 30”/2mm | |||||
Precision of circular vial | 8'/2mm | |||||
Power | Battery | lithium battery | ||||
Voltage | 3.7v | |||||
Weight | 4.8kg | 4.6kg | 4.8kg | 4.6kg | 4.8kg | |
Size | 200*160*345mm |
