electronic pill counter/pill counter semi auto/semi auto tablet bottle filling machine

Supplier: Jinhu Minsheng Pharmaceutical Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr mike shen
Price: $3900.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Packaging Detail:	Export standard packing;	Condition:	New;
Voltage:	220V;	Material:	Stainless Steel 304;
Supply Ability:	10 Unit/Units per Month;	Place of Origin:	China;
Product name:	Counting Filling Machine;	Type:	YL-2;
Port:	Shanghai;	Dimension(LWH):	760x660x700 mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Payment Terms:	T/T,Western Union;
Weight:	80kg;	Applicable Industries:	Pharmaceutical;
Warranty:	1 Year;	Production Capacity:	10-20bottles/min;
Certification:	CE ISO;	Power(W):	0.75kw;
Brand Name:	MINSHENG;	Usage:	Tablet;

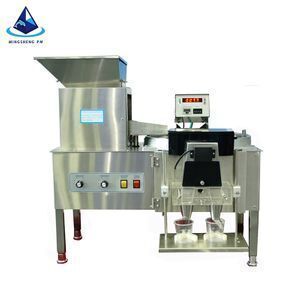

YL-2 Single Plate Counting Filling Machine

Product Description

Counting Filling Machine

The machine is a semiautomatic electronic counting and filling machine. The operation is very simple, and the accuracy is also very high.

The machine is widely applied for tablet or capsule counting for small scale production in

Hospital and small pharmaceutical factory etc.

The number of pellet counted can be arbitrarily set up among 0~9999.

Stainless steel material for whole body can meet with GMP specification.

Easy to operate and no special training required.

Precision pellet count with special electrical eye protection device.

Rotary counting design with fast and smooth operation.

The rotary pellet counting speed can be adjusted with automatic speed regulation according to the bottle putting speed manually.

The interior of the machine is equipped with dust cleaner to avoid the dust effect on the machine.

Vibration feeding design, the vibration frequency of the pellet hopper can be adjusted with automatic speed regulation based on the needs of the pellet carried.

YL-2: once start with one bottle and automatically to count the next when finished, and Easy to pick up and put down the bottle by hand.

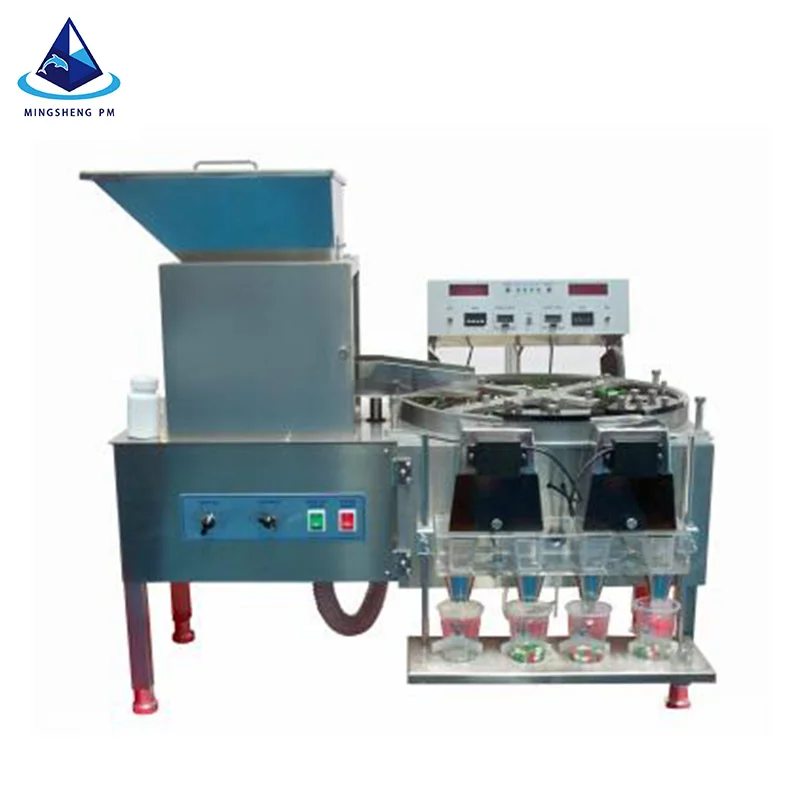

YL-4: once start with two bottles and automatically to count the next two bottles when Finished, easy to pick up and put down the bottle by two hands and the speed is One time faster.

Technical specifications:

Model	YL-2	YL-4	YL-2A
Capacity	1000-1800 pcs/min	2000-3500 pcs/min	500-1500 pcs/min
Power supply	AC, 220V/50-60HZ 1 phase or customized
Net weight	80 kg	120 kg	50 kg
Overall size( L x W x H)	760x660x700 mm	920x750x810 mm	427x327x525 mm

Remark: Machine will be designed according to customer's detail requirements. Please contact with us for choose.

Packaging & Shipping

Packaging:Wooden Case+Film

Our Services

1.One year guarantee for whole machine

2.24 hours technical support

3.Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer’s account.

4.After a year,we can instruct you how to maintain the machine, and spare parts are provided with the best price.

5. we also can provide training service which help opeators handle the machine well.

Company Information

Our Company:

Minsheng Pharmaceutical Machinery Co., Limited. Is the professional manufacturer Specially engages in various pharmaceutical machinery. our factory developed about forty types of machine in over ten varieties including Tablet Press, Pulverize ,Packing Machine, Dryer, Mixer, Coater, Granulator, Labeling Machine, Filling Machine and etc.
All tasks from casting to metal machining, and general assembly are accomplished by itself. This company has been a leader in this particular sector of the pharmaceutical industry.Our products cover twenty-nine provinces of China with thousands of customers and have good reputation in the market. We have the best staff team ,the best and the quick responsive sales & service. We have entered into business relationship with many countries, such as America, Australia, Canada, Russia, Bulgaria, Indonesia , Israel , Pakistan and Vietnam and etc with good effect .We are confident that we can make good development in the future and we can contribute more for the people.
We have professional export office and professional engineer team. They will serve in the whole business. Same time after sales serve team can serve it if customer need on place. The world must become more better through our work hard together.
Most of machines are produced in our own factory ,thus we can offer you the best price and best technical service at the same time . we committed to providing high quality merchandise with good price.

FAQ

1. What about your baling machine quality?
Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer’s good reputation.
2. What about your baling machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.

4. To know more information about our company
