Automatic 1- 20 ton Industrial Oil Gas Fired Steam Boiler for Textile Mill/Food/Garment Factory
-
Supplier: Henan Province Sitong Boiler Co., Ltd. -
Region: Henan, China -
Contact: Ms Lavin Lv -
Price: $5000.00 /set -
Min. Order: 1 set
| Feed water temperature: | 20C; | Material: | Q345R Steel Plate; |
| Fuel: | Oil,Gas,Diesel,Lpg,Lng,Cng,Etc; | Color: | Customer's Requirement; |
| Pressure: | Low Pressure; | Warranty: | 2 Years; |
| Port: | Tianjin /Qingdao /Shanghai/Guangzhou,Customer Requirements; | Showroom Location: | None; |
| Type: | Natural Circulation; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,Trade Assurance; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Supply Ability: | 200 Set/Sets per Month Industrial Oil Gas fired Steam Fire Tube Boiler Price; |
| After Warranty Service: | Video technical support,Online support; | Rated steam capacity: | 1-20t/h; |
| Rated steam pressure: | 0.7/1.0/1.25/1.6 Mpa; | Item: | Fire Tube Industrial Oil Gas Fired Steam Boiler Price; |
| Condition: | New; | Structure: | Fire Tube; |
| Local Service Location: | None; | Condition: | New; |
| Place of Origin: | Henan China; | Key Selling Points: | Automatic,high efficiency; |
| Application: | textile mill, food industry, garment etc; | Brand Name: | YUTONG; |
| Usage: | Industrial; | Dimension(L*W*H): | Depends; |
| Rated steam temperature: | 170/184/194/204C; | Applicable Industries: | Hotels,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Construction works ,Energy & Mining,Advertising Company; |
| Certification: | ISO,SGS,CE,BV,ASME; | Thermal efficiency: | 90-92%; |
| Warranty: | 2 years; | Style: | Horizontal; |
| Packaging Detail: | 1.When transport, the boiler body and large auxiliary equipments (platform, chimney, economizer, etc ) are nude packed or tied up. 2.the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box. 3.The products could be transported by ship and train, customers could designate the ports. 4.If necessary, the small auxiliaries could be transported by airplane.; | Output: | Steam; |
| Weight: | 5~50ton; |

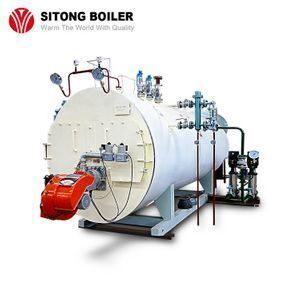

Textile Mill / Food Industry / Garment Factory Used Fire Tube Automatic 1- 20 ton Industrial Oil Gas Fired Steam Boiler Price
Model:WNS Type
Structure:Wet Back Fire Tube Three Pass
Rated Steam Capacity:1-25 ton/hr
Rated Steam Pressure:0.7/1.0/1.25/1.6/2.5 Mpa
Rated Steam Temperature:170/184/194/204/225 C
Application:Textile Mill,Food and Beverage,Chemical,Medicine,Light Industry,Rubber,Printing and Dyeing Plant,Paper Mill,Wood Processing,Garment and Laundry etc.
| Model | Rated | Rated | Rated | Thermal | Fuel Consumption | Equipment Power | Weight | ||
Capacity (t/h) | Pressure (Mpa) | Temperature (C) | Efficiency (%) | Light oil (Kg/h) | Natural gas (Nm³/h) | Burn light oil | Burn gas | (t) | |
| WNS1 | 1 | 0.7/1.0/1.25 | 170/184/194 | >90 | 45-100 | 18-100 | 1.5 | 1.5 | 4 |
| WNS1.5 | 1.5 | >90.2 | 101.73 | 123.47 | 2.2 | 1.5 | 5 | ||
| WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | >90.2 | 137.09 | 165.97 | 2.2 | 3 | 8 |
| WNS3 | 3 | >91 | 205.75 | 249.6 | 7.5 | 7.5 | 9 | ||
| WNS4 | 4 | >91 | 272.3 | 329.5 | 9 | 7.5 | 13 | ||
| WNS5 | 5 | >91.5 | 134-402 | 80-500 | 17.2 | 15 | 15 | ||
| WNS6 | 6 | >91.5 | 134-402 | 80-500 | 15 | 15 | 17 | ||
| WN8 | 8 | 1.25/1.6/2.5 | 194/204/225 | >91.6 | 523.4 | 631.5 | 26 | 22 | 21 |
| WNS10 | 10 | >91.6 | 212-890 | 150-1085 | 26 | 22 | 22 | ||
| WNS12 | 12 | >91.8 | 915.5 | 1090 | 26 | 22 | 27 | ||
| WNS15 | 15 | >91.8 | 931.5 | 1094.4 | / | / | 34 | ||
| WNS20 | 20 | >92 | 1380.33 | 1598.44 | / | / | 45 | ||
| Note: Parameter is for reference only, we can design the boilers based on customers’ needs. | |||||||||
1. What are the available fuel for the oil gas fired boiler?
Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.
2. Whether the boiler can burn dual fuel or multi-fuel?
Sitong boiler have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers’ requirement.
3. What is the texture of spirally corrugated tube?
The texture of spirally corrugated tube is 20#.
4. The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
5. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficient.
6. What is the advantages of fire tube boiler?
This fire tube boiler has compact structure and convenient operation, strong load adaptability, lower water quality requirement, and the failure rate of it is lower than 0.1!
7. Details of electric control cabinet.
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
8. What is the inlet pressure of gas burner?
The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
-
