Suppliers of Oncethrough Boiler Diesel Fired Water Tube Steam Boiler Vertical 0.5ton 1000kg 0.6 mpa

Supplier: Henan Province Sitong Boiler Co., Ltd.
Region: Henan, China
Contact: Ms Lavin Lv
Price: $3500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Local Service Location:	None;	Style:	VERTICAL;
Brand Name:	YuTong;	Pressure:	Low Pressure;
Usage:	Industrial;	Condition:	New;
Place of Origin:	Henan China;	After Warranty Service:	Video technical support,Online support;
Heating area:	3M2;	Water supply temperature:	20C;
Packaging Detail:	When transport, the boiler body and large auxiliary equipments (platform, chimney, economizer, etc ) are nude packed or tied up, and then covered with dedicated water-proof paulin, the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box, some auxiliaries are single packaged, such as burner. The products could be transported by ship and train, customers could designate the ports. If necessary, the small auxiliaries could be transported by airplane.;	Type:	Natural Circulation;
Rated steam capacity:	100-2000kg/h;	Applicable Industries:	Hotels,Manufacturing Plant,Food & Beverage Factory,Restaurant,textile, laundry, hospital, etc.;
Showroom Location:	None;	Machinery Test Report:	Provided;
Thermal efficiency:	89-92%;	Rated steam temperature:	151/170C;
Warranty:	1 Year;	Certification:	ISO CE CCC SGS;
Supply Ability:	150 Unit/Units per Month;	Weight:	366-2000KG;
Output:	Steam;	Dimension(LWH):	Customization;
Fuel:	Oil-fired;	Video outgoing-inspection:	Provided;
Key Selling Points:	Automatic;	General power:	1.1-4KW;
Port:	Shanghai Qingdao Tianjing;	Structure:	Water Tube;
Rated steam pressure:	0.4/0.7Mpa;	Color:	Customization;
Marketing Type:	Hot Product 2019;	Warranty of core components:	1 Year;
Fuel available:	light oil, heavy oil, natural gas;	Core Components:	..;
Steam Production:	Max. 2t/h;	Payment Terms:	L/C,D/A,T/T;

Suppliers of Oncethrough Boiler Diesel Fired Water Tube Steam Boiler Vertical 0.5ton 1000kg 0.6 mpa

product description

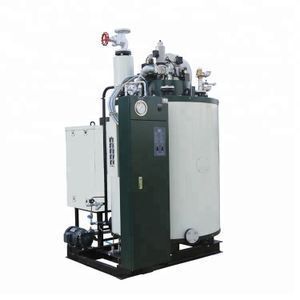

The oncethrough boiler diesel water tube boiler is the patent product of Sitong Boiler, the patent number is ZL 2014 2 0508072.2. The steam boiler is an exquisite small steam capacity (0.1-1tph) equipment. It is three-pass structure steam boiler with top-fired burner. The flame can completely spread from the top to the bottom and burn sufficiently. The gas need to make a three pass heat transfer, so the heat loss is reduced and the thermal efficiency is higher.

Features

1.The shell could be stainless steel, the appearance is much more delicate.

2.WE can provide service within 48 hours if any support needed.

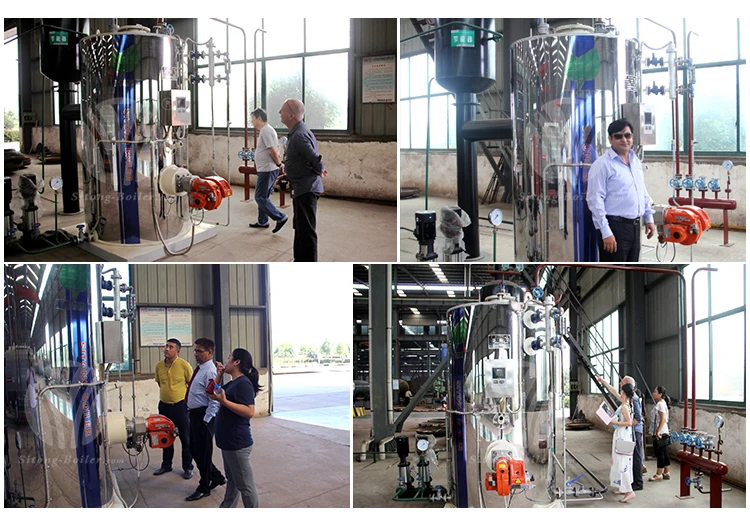

3.The technical teams will visit customer for after-sale services every quarter.

4.The 100% NDT make sure the boiler life span more than 20 years.

Technical Parameters

Model Item	LSS0.1-0.4-Y(Q)	LSS0.2-0.4-Y(Q)	LSS0.3-0.4-Y(Q) LSS0.3-0.7-Y(Q)	LSS0.5-0.4-Y(Q) LSS0.5-0.7-Y(Q)	LSS0.7-0.4-Y(Q) LSS0.7-0.7-Y(Q)	LSS1-0.4-Y(Q) LSS1-0.7-Y(Q)
Rated evaporation capacity (t/h)	0.1	0.2	0.3	0.5	0.7	1
Working pressure(Mpa)	0.4	0.4	0.4/0.7	0.4/0.7	0.4/0.7	0.4/0.7
Rated steam temperature(℃)	151	151	151/170	151/170	151/170	151/170
Feed water temperature(℃)	20	20	20	20	20	20
Heating area (m2)	3	3	3	3	3	3
Thermal Efficiency (%)	89	89.2	89.5	89.6	91	91
Size(m)	0.8x 1.94	0.9x 2.7	1.2x 2.58	1.3x 2.95	1.6x 3.0	1.5x 3.2
Weight (t)	0.83	1	1.28	2.1	3.5	4.1

Application

Sitong LSS series vertical type steam boiler can be wildly used in pharmaceutical industry, chemical industry, light industry, textile, building materials, farming, food and beverage, plastics and foam, printing & dyeing and washing, rubber processing, paper making, wood processing, hotel, garment leather, etc. This series boiler can also be applied to generate electricity at some districts where electricity power is in short. So are a variety of industrial productions, living and remote areas, and oil field. Even they can be used as a power plant boiler start-up.

Packaging & Shipping

The Philippines customer purchased LSS Water tube boiler, and used it for food processing industry, the fuel he used is light oil. Sitong Boiler complete this transaction from boiler design to shipping with in only 15 days.
