Product Name: | CNC Engraving Machine for Metal; | Package Type: | Each set is wrapped with stretch film and packed into a plywood case.; |
Single gross weight: | 2,900 KG; | Spindle Motor: | 5.5kw; |
After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; | Place of Origin: | China; |
Cutting Speed: | 20000mm/min; | Positioning Accuracy: | ±0.005mm; |
Selling Units: | Single item; | Rated Power: | 5.5kw; |
Weight: | 2800kg; | Certification: | CE; |
Main Axle Rotational Speed: | 24000rpm; | System: | Syntec/Mitsubishi/Fanuc/Siemens; |
Spindle Travel: | 500/600/320mm; | Repeat Positioning Accuracy: | ±0.003mm; |
Package Preview: | https://sc01.alicdn.com/kf/HTB1lWidazzuK1Rjy0Fpq6yEpFXaw.jpg_640x640.jpg; | Dimensions: | 2000*1720*2400mm; |
Spindle Speed: | 24000rpm; | Spindle Taper: | BT30; |
Working Table Size: | 540 x 600mm; | Condition: | New; |
Single package size: | 218X180X258 cm; | Engraving Speed: | 20m/min; |

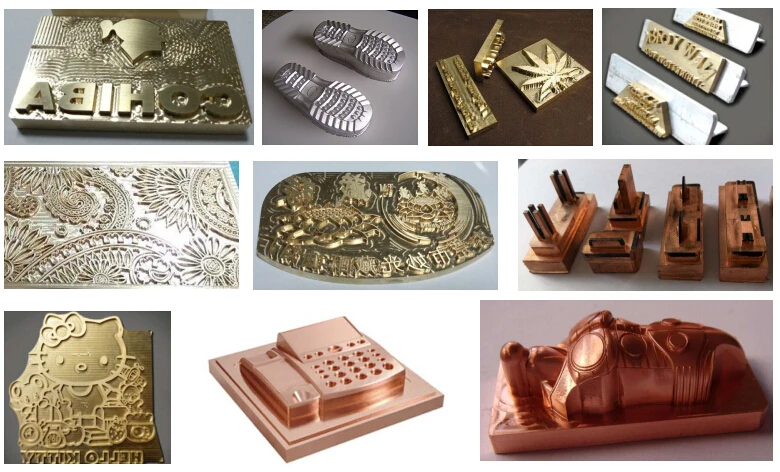

Warranty: | 1 year; | Application: | Soft Metal Engraving; |
Brand Name: | Chansin; |

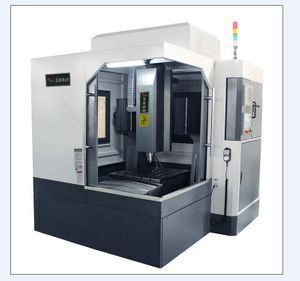

20 Year Factory One Year Warranty High Speed High Precision CNC Milling Engraving Machine for Metal

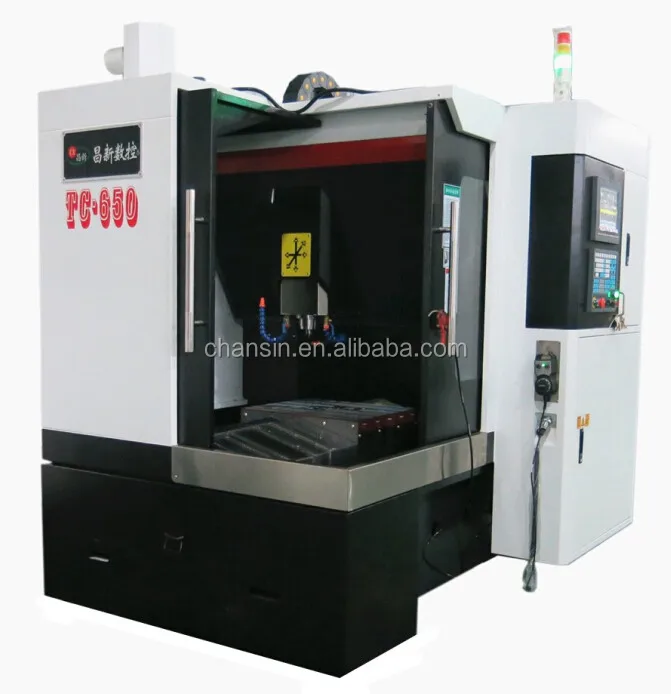

CX-650 Parameters | |
System | Syntec/Mitsubishi |
Lubrication System | Automatic |
Cooling System | Oil Cooling |
X/Y/Z-axis Travel | 600mm/500mm/320mm |
Distance from Spindle Nose to Worktable | 120mm-300mm |
Worktable Size | 540*600mm |
Table Max Load | 300kg |
T Slot(number x size x space) | 4 x 18T x 100mm |
Spindle Speed | 24000rpm |
Spindle Motor Power | 5.5kw |
X/Y/Z-axis Motor Power | 850w/850w/850w |
Rapid Traverse(X/Y/Z) | 20000/20000/20000mm/min |
Cutting Speed | 20000mm/min |
Tool Holder | ER25 |
Positioning Accuracy | ±0.005mm |
Repeat Positioning Accuracy | ±0.003mm |
Slider Quantity | 4 |
Total Electricity Demand | 9kw |
Machine Size | 2000*1720*2400mm |
Machine Weight | 2800kg |
Warranty | a year free warranty,lifetime maintenance |

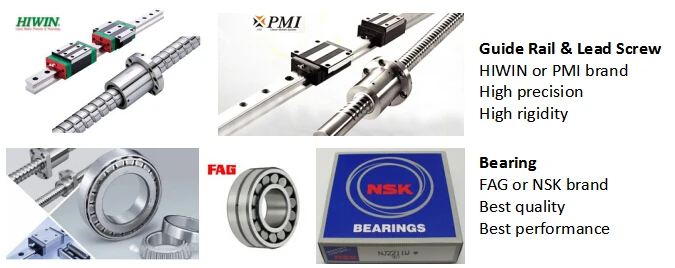

Main Component Brand | |
System | Syntec/Mitsubishi/Siemens/Fanuc |
Spindle | Weilong/Roaly/Danquan in Taiwan |
Bearing | NSK in Japan or FAG in Germany |
Lead screw/Linear Guideway | Hiwin/PMI in Taiwan |
Cooling Tank | Taiwan Brand |
Above price is only for reference.For specific price,please contact us. |
Q1: Are you a factory?
A1: Yes,we are a professional factory that was founded in 1998.
Q2: Payment term
A2: After the contract is signed, you shall pay 40% deposit, then the contract comes into effect.
Q3:Production time
A3: 20 days upon order confirmation
Q4:Check the acceptance
A4: When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine. If there is any problem about machine, please take pictures and contact us immediately.
Q5:Warranty time
A5: 1) One year warranty. During the first year, if some parts need replacing, we will free provide. And we offer life-long maintenance. After warranty time, customers shall pay money for component and express fee.We can provide debugging on site and training for customers, but customers need to pay expense. In this case, the customer will pay for air tickets between China and buyer's destination and free provide accommodation and meals. 2)12 months warranty begins from the day when the machine arrives. If it can’t work normally, my company will send engineers to your factory within 24 hours after receiving your notice. We still support maintenance for machine even warranty expires. Each cnc machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.
Q6:OEM Service
A6: We accept purchase orders with customers' brand or trade mark.
