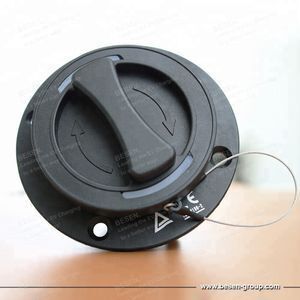

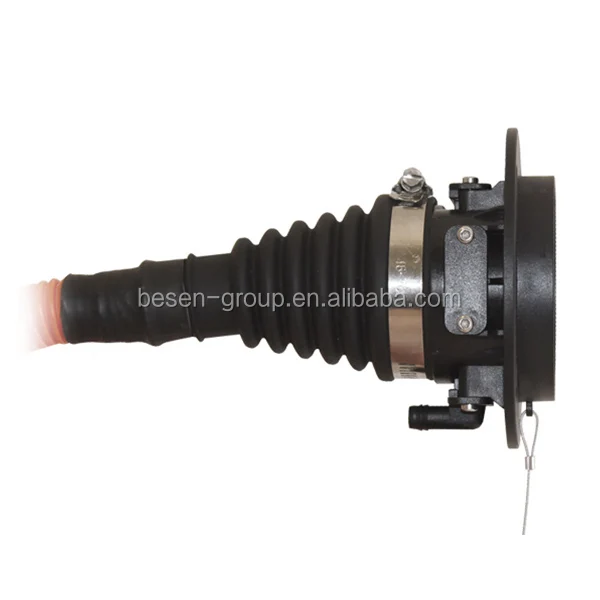

IEC 62196-2 Electric Vehicle Inlet socket Type 2 male connector 16a vehicle inlet

Click here to contact
Product details
IP:55;Brand Name:BESEN;
Certificate:CE TUV;Type:Inlet;
Type:2;Key Words:IEC 62196-2 EV Charging Socket;
Model Number:BS-EVSC004;Place of Origin:Jiangsu China;
Colour:Black;Payment Terms:L/C,D/A,T/T,Western Union,Paypal;
Working Life:More than 10000 times;Packaging Detail:Carton for IEC 62196-2 EV Charging Socket;
Port:Shanghai;Supply Ability:5000 Piece/Pieces per Month;



 IEC 62196-2 Electric Vehicle Inlet / Vehicle Side Socket    32A 380V



General Description:

1. IEC 62196-2 EV Charging Socket standard;

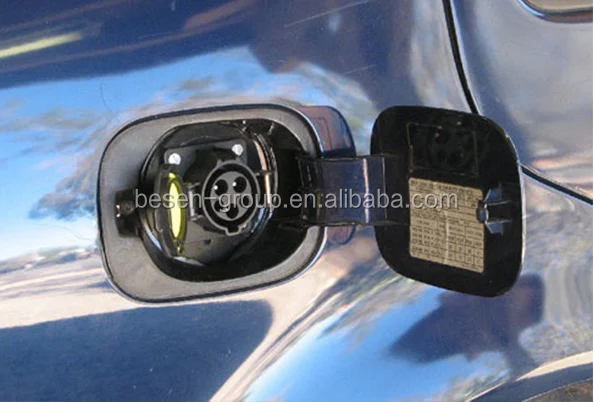

2. Vehicle Side Socket / Vehicle Inlet;

3. Custom Options on 16A/32A/63A;

4. 4 Point Fixing;

5. Vehicle Side;

5. CE & TUV Approved;

Electrical Performance

1. Rated current:16A/32A/63A

2. Operating voltage: 220~380V

3. Insulation resisitance:>1000MΩ(DC500V)

4. Therminal temperature rise:<50K

5. Withstand voltage:2000V

6. Vibration resistance:Meet JDQ53.36.1.1-53.36.1.2 requirements

7. Contact impedance: 0.5mΩ Max

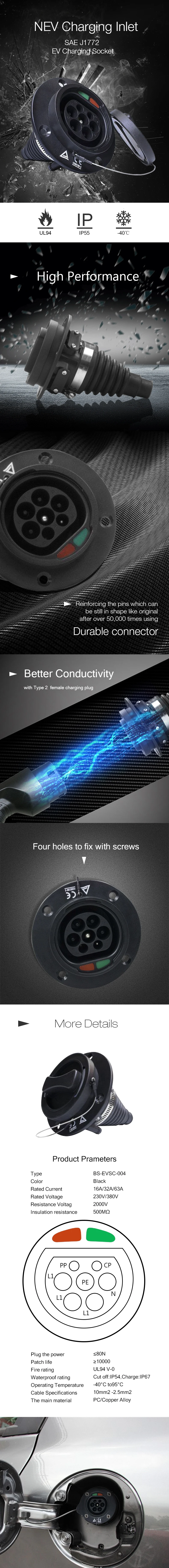

 Product Prameters



Type

BS-EVSC-004

Plug the power

≤80N

Color

Black

Patch life

≥10000

Rated Current

16A/32A/63A

Fire rating

UL94 V-0

Rated Voltage

230V/380V

Waterproof rating

Cut off:IP54,Charge:IP67

Resistance Voltag

2000V

Operating Temperature

-40°C to95°C

Insulation resistance

500MΩ

Cable Specifications

10mm2 -2.5mm2

Contact resistance



The main material

PC/Copper Alloy

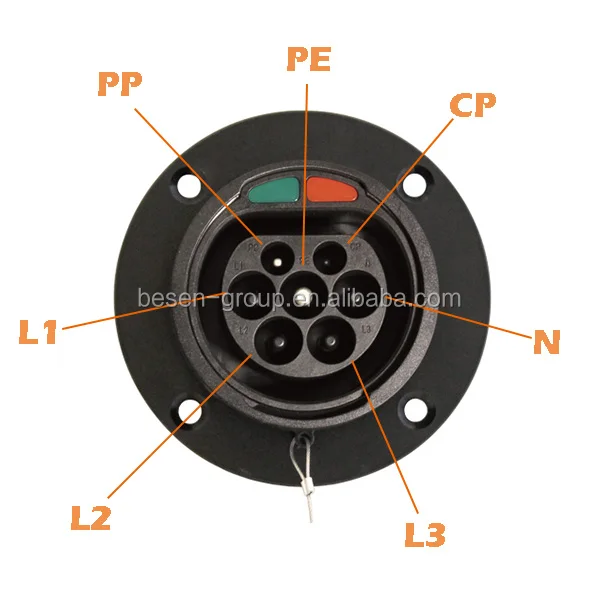

Insert arrangements and functional defination

Insert arrangement:

functional defination:

+
MarkFunctional Defination
1-(L1)

AC power

2-(L2)

AC power

3-(L3)

AC power

4-(N)Netural
5-(PE)PE
6-(CP)Control Confirmation
7-(PP)Connection Confirmation
