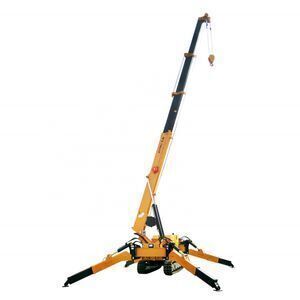

Lifetime service mini crawler 5 tons crane with CE and ISO certificate

Supplier: Beta(Hangzhou) Industrial Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Alvin Liu
Price: $60000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Overseas training:	Yes;	After-sales Service:	Engineers available to service;
Condition:	New;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Operation system:	Wireless remote control and manual;	Place of Origin:	Zhejiang, China;
Safety system:	Safe load moment limiter;	Feature:	Bridge Crane;
After-sales Service Provided:	Field installation, commissioning and training;	Boom type:	Automatic 4 sections;
Warranty:	1 year;	Port:	Shanghai/Ningbo;
Certification:	CE;	Max. Lifting Height:	16.9m;
Rated Lifting Moment:	5.5tons x 1.8m;	Supply Ability:	25 Set/Sets per Month;
Packaging Detail:	Wooden case;	Slewing angle:	360 Degree Hydraulic Slewing;
Crane screen:	Intelligent display screen;	Span:	5.4m;
Model:	HXB5.5;	Warranty time:	1 year;
Boom Length:	16.6m;	Max. Lifting Load:	5.5 tons;
Brand Name:	Beta;

Lifetime service mini crawler 5 tons crane with CE and ISO certificate

Applications:

The HXB5.5 crane is widely applied to lifting especially in some narrow space where heavy-duty crane cannot get in.

Technical data:

Model		HXB 5.5
Crane capacity		5.5t×1.8m
Max. lifting height		16.9m
Max. working radius		16m
Winch system	Hook speed	10m/min (4 falls)
Winch system	Hoist wire rope	Ø10×80m
Telescoping system	Type	Fully automatic 5-section(including fly jib)
	Boom length	16.6m
	Boom telescoping stroke/time	11.7m/54sec [41sec]
Boom hoist system	Hoist angle / time	0-80deg/24.5sec [17.0sec]
Slew system	Slew angle / time	360deg/2.1rpm [2.5rpm]
Outrigger system	Type	Extended Hydraulic cylinder direct acting Setting up Hydraulic cylinder direct acting
Outrigger system	Max. extended width	5170(front)x5807(side)x5423(rear)mm
Traction system	Type	Hydraulic driven, stepless speed changer
	Travel speed	0-3Km/h
	Gradability	32%
	Crawler length x width	1,720×320 mm
	Ground pressure	41.3Kpa
Dimension	L×W×H	4960x1370x1980 mm
Crane Weight	Net weight	5500 kg
Engine - Diesel	Brand	YANMAR
	Model	4TNV88-BSBKC
	Displacement	1.642L
	Maximum output	21.2KW/2400min-1
	Starting method	Electric starting
	Fuel / tank capacity	Diesel / 45L
	Battery capacity	12V, 90Ah
Remote control system	Type	Wireless remote control
	Effective operation distance	100m
	Response time	40ms
	Voltage, power	DC12V, <12w
	IP grade	IP-67
Safety devices	Keep working safe for operator and crane	Overwind protection, Load indicator, Moment limiter, Hydraulic safety valve, Wire rope latch, Air level, Tip alarm, Travel lock lever, Outrigger interlock device, Lights
Optional devices	Optional devices ordered separately	Working basket, Fly jib, Glass lifter, White crawlers, Rain cover

Detailed parts picture:

Applications:

Customers from all around the world:

Questions & Answers:

1. How about the payment terms?

Answer: We accept 30% T/T in advance, 70% balance before the delivery. Other terms like O/A and L/C also available, we can discuss in details.

2. How do you guarantee your quality?

Answer: Quality test in every process and every component to ensure good quality. Ensure good quality is to ensure safety. Each set of cranes must be inspected and commissioned in details before delivery.

3. Do you have some certificates of you spider crane?

Answer: CE certificate for products, and our company is approved by ISO9001 and ISO14001.

4. How about your delivery time and stock status?

Answer: We have stock for our best-selling models normally. In case there is no stock, delivery time is 2-4 weeks.

5. What is the power of your spider crane?

Answer: You have different choice: gasoline engine, diesel engine, electric motor, and pure battery. It can well meet your different working conditions.

6. Can you provide OEM service and have our own logo on products?

Answer: Yes, we work on OEM orders. That's ok to have your own logo on the products. Please contact us with details before placing order.

7. How about the packing and shipping?

Answer: Normally, we have strong wooden case to protect the crane. And sometimes if customers want to load in a full container, that is ok.

8. Where is your factory located? Can I visit your factory?

Answer: We are in Hangzhou city, Zhejiang province, east China. We have international airport. 1 hour from Shanghai by train. Very convenient to visit us, and all clients from all over the world are highly welcome.
