Operation system: | Wireless remote control and manual; | Warranty: | 1 year; |
Place of Origin: | Zhejiang China; | Crane screen: | Intelligent display screen; |
Model: | HXB3.0; | Packaging Detail: | Wooden case; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union; | Overseas training: | Yes; |
Brand Name: | Beta; | Supply Ability: | 25 Set/Sets per Month; |
After-sales Service: | Engineers available to service; | Boom type: | Automatic 4 sections; |
Boom Length: | 8.2m; | After-sales Service Provided: | Field installation, commissioning and training; |
Certification: | CE, ISO; | Usage: | Construction Hoist; |
Power Source: | Hydraulic; | Condition: | New; |
Warranty time: | 1 year; | Safety system: | Safe load moment limiter; |
Slewing angle: | 360 Degree Hydraulic Slewing; | Port: | Shanghai/Ningbo; |

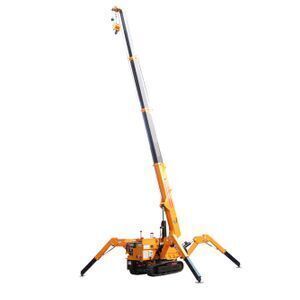

Fordable Crawler Mini Hoist Crane with CE Certificate and ISO Approval
Applications:
The HXB3.0 crane is widely applied to lifting especially in some narrow space where heavy-duty crane cannot get in.
Technical data:
Model | HXB3.0 | |
Crane capacity | 3.0t×1.3m | |
Maximum working radius | 7.7m | |
Maximum lifting height | 9.5m | |
Winch | Hook up speed | 2.8m/min(4 times) |
Diameter and length of wire rope | Ø8mm×50m | |
Telescopic | Boom form | 4 (4 Automatic) |
Boom length | 8.2 m | |
Derrick | Derricking angle | 0-75° |
Slewing | Slewing angle | 360-degree continuous |
Outrigger | Form of outrigger | First phase--automatic Second phase--manual |
Maximum extend range | 5.3m | |
Traction system | Travel | Hydraulic |
Travel speed | 0-3.0km/h | |
Track | Synthetic rubber | |
Gradeability | 30° | |
Track ground pressure | 36kpa | |
Hydraulic oil tank | Tank capacity | 38L |
Hydraulic pump | Model | P208 |
Displacement | 8ml/rev | |
Max pressure | 25Mpa | |
Rated pressure | 21Mpa | |
Allowed speed | 550-3000rpm | |
Diesel Engine-Yanmar (optional) | Model | L100N6-METM Yanmar Diesel Engine |
Combustion system | Direct injection | |
Output | Max 7.4 (10.0PS ) / 3600 kW/min-1 | |
Fuel | Diesel fuel | |
Tank capacity | 5.4L | |
Starting system | Starter motor with recoil starter | |
Gasoline Engine -HONDA (optional) | Model | GX390, HONDA brand |
L×W×H | 405×450×443mm | |
Displacement | 389.2ml | |
Max. output power | 13HP | |
Ignition system | Transistor ignition magnets (non-contact) | |
Gasoline engine type | Four strokes, single cylinder, forced air cooling | |
Direction of rotation | Counterclockwise (the output shaft) | |
Stating performance | 30 (-5°C--40°C) | |
Battery capacity | 12V 36Ah | |
3-phase power motor | Model | YYB100L2-4 |
Mount type | Horizontally-mounted | |
Power | 3KW | |
Dimension of the crane | Length | 3000mm |
Width | 800mm | |
Height | 1560mm | |
Total weight | 2000kg |
Detailed parts picture:
Applications:
Customers from all around the world:
Questions & Answers:
1. How about the payment terms?
Answer: We accept 30% T/T in advance, 70% balance before the delivery. Other terms like O/A and L/C also available, we can discuss in details.
2. How do you guarantee your quality?
Answer: Quality test in every process and every component to ensure good quality. Ensure good quality is to ensure safety. Each set of cranes must be inspected and commissioned in details before delivery.
3. Do you have some certificates of you spider crane?
Answer: CE certificate for products, and our company is approved by ISO9001 and ISO14001.
4. How about your delivery time and stock status?
Answer: We have stock for our best-selling models normally. In case there is no stock, delivery time is 2-4 weeks.
5. What is the power of your spider crane?
Answer: You have different choice: gasoline engine, diesel engine, electric motor, and pure battery. It can well meet your different working conditions.
6. Can you provide OEM service and have our own logo on products?
Answer: Yes, we work on OEM orders. That's ok to have your own logo on the products. Please contact us with details before placing order.
7. How about the packing and shipping?
Answer: Normally, we have strong wooden case to protect the crane. And sometimes if customers want to load in a full container, that is ok.
8. Where is your factory located? Can I visit your factory?
Answer: We are in Hangzhou city, Zhejiang province, east China. We have international airport. 1 hour from Shanghai by train. Very convenient to visit us, and all clients from all over the world are highly welcome.
