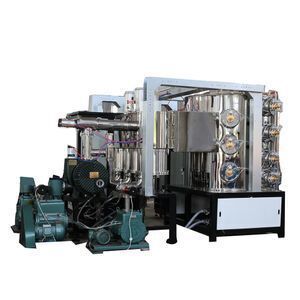

metal vacuum plating machine

Supplier: Longkou Bite Vacuum Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Bite Vacuum
Price: $45000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year;	Payment Terms:	L/C,T/T;
Voltage:	380V;	Dimension(LWH):	1000*1200mm;
control system:	PLC;	color:	according to requirement;
Supply Ability:	60 Set/Sets per Year;	automatic:	full-automatic;
WhatsApp:	+86 13573560091;	Power(W):	55KW;
Place of Origin:	Shandong China;	Plating style:	vacuum plating;
After-sales Service Provided:	Field installation, commissioning and training;	Port:	QINGDAO;
Brand Name:	LKBT;	Weight:	4500kg;
Application:	metal plating;	Certification:	CE TUV;
Condition:	New;	Packaging Detail:	metal vacuum plating machine wood box packing, no damage during shipment;
name:	metal vacuum plating machine;

metal vacuum plating machine

The PVD(Physical Vapor Deposition) coating machine applicable to:stainless steel; ceramic and glass. It is very important equipment in the decoration industry widely used for plating various materials, such as TiN, TiC,ZrN,CrN,Ti, Ni, Cr, Au, and Ag etc.

The production is including:watch chain,golf club,mobile phone shell,auto parts, auto lamp, sanitaryware, tap.etc.

Campare with chemical coating, the products coated by our machine has good Surface abrasion resistance and Corrosion Stability. More important it is green environmental protection equipment. There are no waste gass; waste water; waste discharged in process-cycle.

Otherwise, we have eletroplating factory that electroplate watch chain; golf club;golden floor tile; car light; mobile shell. . All the PVD Coating equipment was made by ourselves. After many years research and development, our technology is mature,reliable and stable.

Process Description

1.We use advanced PVD process in a vacuum chamber to deposit thin film hard coatings

2.Substrate parts are inspected upon arrival.

3.Parts are cleaned in a proprietary multi-stage cleaning process to remove soils, oils, fingerprints and produce an oxide free surface.

4.After cleaning, the substrates are mounted onto fixtures for coating.

5.The fixtured parts are loaded into the coating chamber.

6.The air in the chamber is pumped out, leaving a high vacuum environment.

7.Substrate parts are pre-heated to process temperature

8.Substrates are ion-cleaned to remove the final atomic contaminants from the surface.

9.A flow of ionized nitrogen and argon is introduced into the chamber

10.Titanium is flash evaporated and ionized by a vacuum arc. This generates a plasma within the chamber of ionized atomic nitrogen argon and titanium.

11.A voltage is applied to the substrates to accelerate the ions in the plasma cloud to the surface of the parts.

12.The titanium and nitrogen combine on the surface of the subtrate, forming a dense, hard coating of TiN, The combination of ionization, kinetic energy of the accelerated atoms, and thermal energy in the chamber provide enough energy to form the hard TiN film.

13.The coating bonds to the surface of the substrate,and even penetrates the surface sightly, to give an outstanding level of adhesion.

14.The coating cycle lasts half an hour. All process variables are carfully controlled to insure a high quality coating.

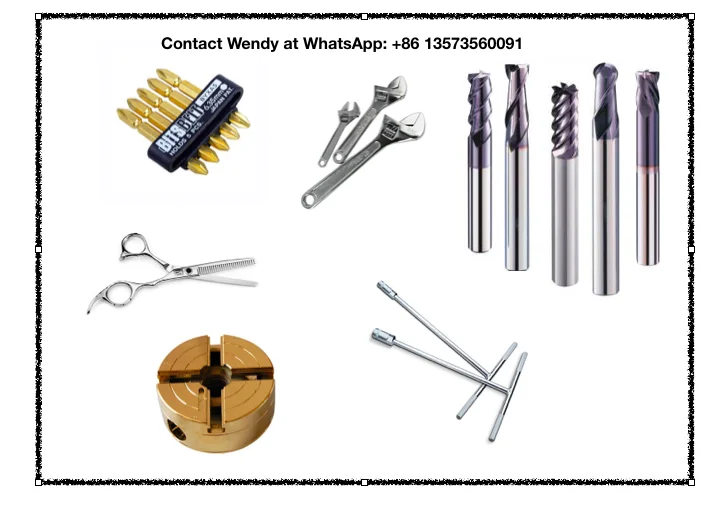

Samples coated by our machine:
