FDA Approved Auto-balance Food Metal Detector Conveyor Belt Metal Detector

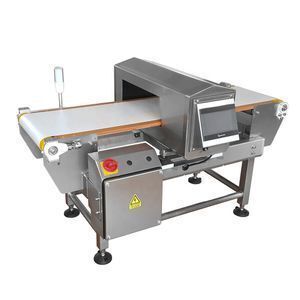

Multi-frequency Auto Balance Conveyor Belt Metal Detector FA-MD-II

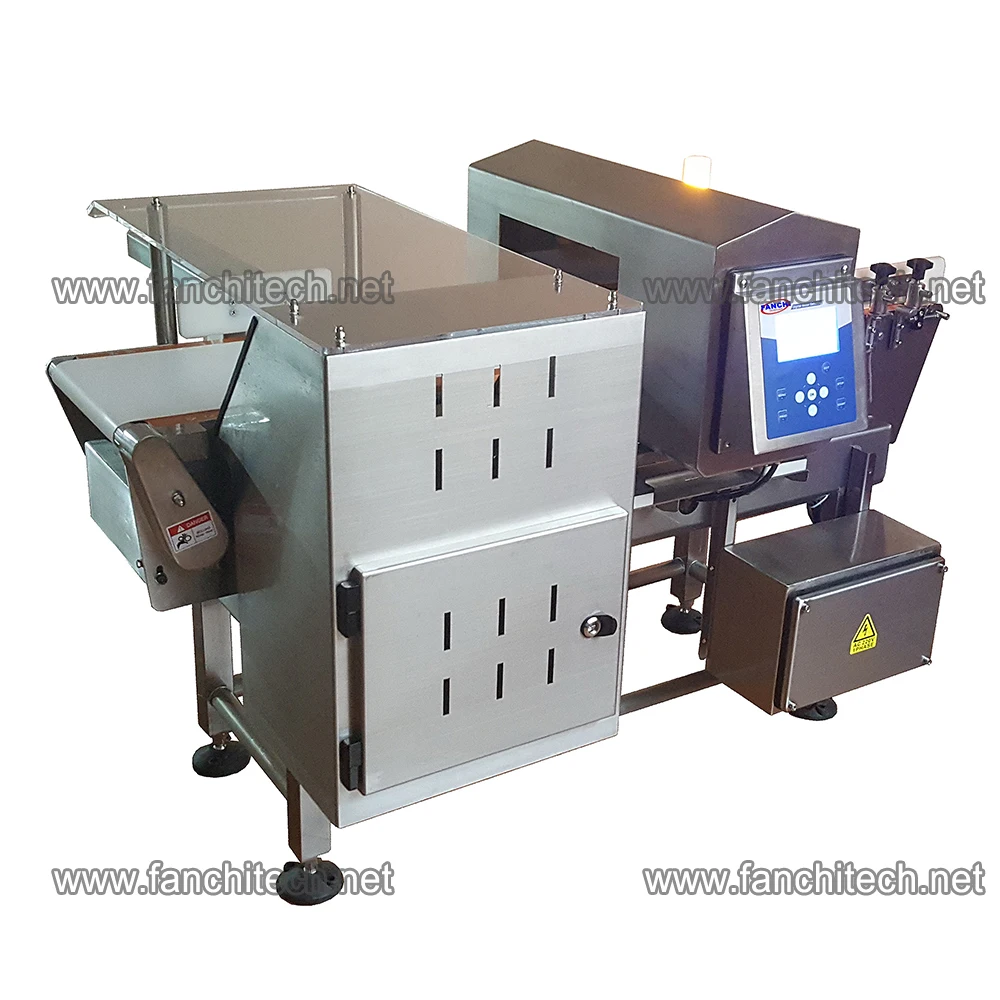

The conveyorized FA-MD Metal Detector system can be configured to suit factory and product requirements. It includes different reject options including as a Stop on Detect (band stop), air blast, pusher, carriage retract band, diverters or powered decliners. This system is ideally suited for packaged product from both the food and pharmaceutical industries.

It can detect all metal contaminants in packaged and non-packaged food, including ferrous metal (Fe), non-ferrous metal (Copper, Aluminum etc.) and Stainless Steel.

Features:

• Colorful LCD touch screen control, oscilloscope display function, to show the signal status of products and metal impurity more clearly and accurately
• Advanced FPGA technology of signal processing,adopts multiple(high/medium/low)frequencies technology, can select suitable frequency to do detection according to product's own characteristic
• With self-learning(product compensation adjustment function), the detector will automatically collect products information and recommend a suitable phase parameter for different products, so that the impact of product effect will be minimized to ensure reliable detection performance
• Except for Sus304, the machine can also reliably detect impurity of Sus316
• IP66 protection level, suitable for harsh working environment
• Friendly operation, flexible ways to make adjustments according to different requirement
• Scalable system, with high-end functions of extending/deriving/analyzing data records

Note:

1. The metal detector head size can be customized as per clients’ product size, conveyor height can be

   customized as per clients’ production line height.

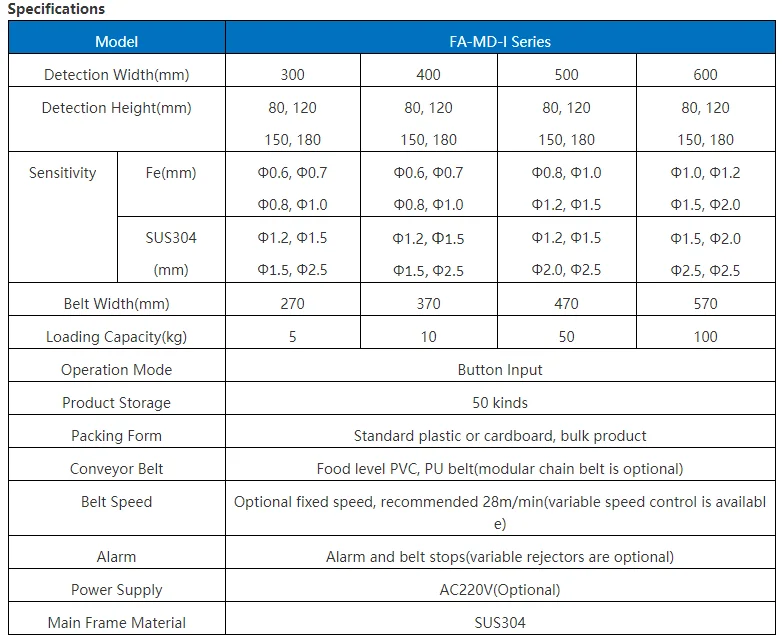

2. The technical parameter above namely is the result of sensitivity by detecting only the test sample on

   the belt. The sensitivity would be affected according to the products being detected, working condition

   and also the different positions the metal mixed with.

3. We much appreciate if you attach the filled product info questionnaire with your enquiry.

Shanghai Fanchi-tech Machinery Co., Ltd started its humble openings in 2013, believing that through superior product design and engineering the production of higher quality equipment with customer-satisfied service could be achieved. Our first-class devices and services have gained recognition and trust of our customers. Our commitment and determination in the pursuit of perfection can prove to everyone that we deserve the trust of our customers. Currently, we are an established supplier of a full range of Metal Detectors, Weight Grading/Checking System, X-ray Inspection System, etc. Compared with other manufacturers and distributors, all our machines are implemented in accordance with the demands and requirements of our customers at a reasonable price.

We provide advice and assistance in the design and implementation of the entire line of quality control of the HACCP. All of our devices are featured at high quality, superior design and excellent performance. We're devoted to designing, producing, selling, servicing and continuously improving the following systems:

1. Food Safety Inspection System: X-ray Inspection System, Metal Detector, Color Sorter, etc;

2. Weight Checking&Grading System: Dynamic Checkweigher, Multi-sorting Checkweigher, etc;

We always persist the principle of innovative technology, outstanding quality and quick response service. With the great effort of each stuff member, our products have been exported to more than 30 countries from all over of world , such as America, Canada, Italy, Spain, Poland, Australia, New Zealand, Russia ,Turkey, Mexico, Korea, Israel, South Africa, Egypt, India, etc.

1. How often should we test the metal detector with the metal test samples?

The detectors performance, detection and rejection of test samples, should be verified on an hourly basis as well as at the beginning of a product run or at a shift change. Also whenever any settings are updated or changed, the test samples should be used.  Industry standards and auditing requirements may dictate the testing frequency and procedure so do check with QA. Ultimately, the more often the detector is tested, the better. Should the detector fail a testing sequence, then all products since the last test would have to be rechecked.

2. What parts do you recommend for us to keep in our stock?

We recommend having a full spare parts kit on hand. This includes a power supply, search head board, digital board (DSP) and control panel. Having a full set will help when troubleshooting.

3. What is the detector capable of detecting?

The capability of the metal detector is dependent on many factors that will limit the sensitivity. The most common limiting factor is the product effect. In many applications the product may be conductive and acts like metal. This effect must first be overcome before determining sensitivity. The sensitivity is not only determined by product effect. Other factors such as but not limited to, aperture size, operating frequency, product speed and environment may also limit sensitivity.

4. Are there any specific steps to maintain the metal detector system?

Generally the maintenance consists of the following:
Inspecting the detector and system for damage
Inspecting mechanical parts for signs of wear
Ensuring electrical connections and cable entries are tight
Keeping the system clean

5. Does our metal detector detect all metals?

Unless you are inspecting product with pure aluminium packaging, which required a Ferrous in Foil detector, the metal detector will detect all kinds of metal.  Metal detectors are generally tested with Ferrous, Non-Ferrous, Stainless Steel test samples. Testing with these three types of test samples will ensure that the detector is capable of detecting all metals.
