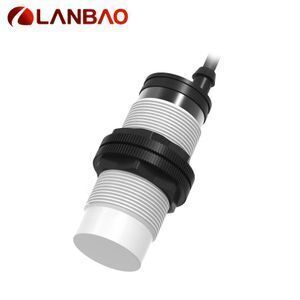

Lanbao CR30S abs Circular Proximity 5v dc Capacitive sensor limit switch
-
Supplier: Shanghai Lanbao Sensing Technology Co., Ltd. -
Region: Shanghai, China -
Contact: Ms Kiki Li -
Price: $17.00 /piece -
Min. Order: 1 piece
| Type: | position sensor; | Operating Temperature: | -25 ~ +70℃; |
| Certification: | CE, UL; | Sensing distance: | 15mm; |
| Max. Current: | Consult our; | Single gross weight: | 0.3 KG; |
| Circuit protection: | Polarity protection, Short circuit protection,Surge protection; | Housing material: | PBT; |
| mounting: | Non-flush; | Brand Name: | LANBAO; |
| Place of Origin: | Shanghai China; | Model Number: | CR30SCN15DPR; |
| Single package size: | 17X11X4 cm; | Protection Level: | IP67; |
| Selling Units: | Single item; | Frequency: | 50Hz; |
| Output: | PNP NO+NC; | Max. Voltage: | 20~30VDC; |
| Connection: | 2m PVC cable; | Package Preview: | https://sc02.alicdn.com/kf/H12ecf0d083da492b9d4c879b33e7babau.jpg_640x640.jpg; |
| Warranty: | 12 Months; |
Lanbao CR30S abs Circular Proximity 5v dc Capacitive sensor limit switch
Product Features
Can detect metal and non-metallic objects at the same time, more widely used
Detection of different media in containers through non-metallic tube walls
Before-sales Services
1.24-hours online service;is available here. Once you have any questions, just contact us and our professional staff
will reply very quickly. Email, Skype, Whatsapp or Online Message are acceptable;
2.Market information;also will be provided. Since we are an experienced manufacturer of sensor, the market information
about sensors will be offered as long as you need.
On-purchase Services:
1.The information of sensors that we provided is fully presented including product details, pictures, delivery and so on;
2.All your problems or worries will be solved quickly by our sales. It is worth noting that the;prices of our; sensors;are
quite;negotiable. We have large discount for big quantity;
After-sales Services
1. The;warranty periodis 12 months.;
2. If we send the;wrong parts;to you, free replacement will be available.
3. As for the;installation of the parts, if you have any questions, do not hesitate to contact us at any time.
Part number
| NPN NO | CR30SCF10DNO | CR30SCN15DNO |
| NPN NC | CR30SCF10DNO | CR30SCN15DNC |
| NPN NO+NC | CR30SCF10DNR | CR30SCN15DNC |
| PNP NC | CR30SCF10DPO | CR30SCN15DPO |
| PNP NO | CR30SCF10DPC | CR30SCN15DPO |
| PNP NO+NC | CR30SCF10DPR | CR30SCN15DPR |
Technical specifications
| Mounting | Flush Non-flush |
| Nominal distance Sn | 10mm(adjustable) 15mm(Not adjustable) |
| Guaranteed distance Sa | 0......8mm 0.......12mm |
| Dimensions | M30*62mm M30*74mm |
| Output | NO/NC(Depending on the model) |
| Supply voltage | 10…30 VDC |
| Standard target | Fe 30*30*1t Fe 45*45*1t |
| Switch-point drifts [%/Sr] | ≤±20% |
| Hysteresis range [%/Sr] | 3…20% |
| Repeat accuracy [R] | ≤3% |
| Load current | ≤200mA |
| Residual voltage | ≤2.5V |
| Current consumption | ≤15mA |
| Circuit protection | Polarity protection Short protection |
| Output indicator | Yellow LED |
| Ambient temperature | -25℃…70℃ |
| Ambient humidity | 35-95%RH |
| Switching frequency [F] | 50HZ |
| Voltage withstand | 100V/AC 50/60Hz 60s |
| Insulation resistance | ≥50MΩ(500VDC) |
| Vibration resistance | 10…50Hz (1.5mm) |
| Degree of protection | IP67 |
| Housing material | PBT |
| Connection | 2m PVC cable |

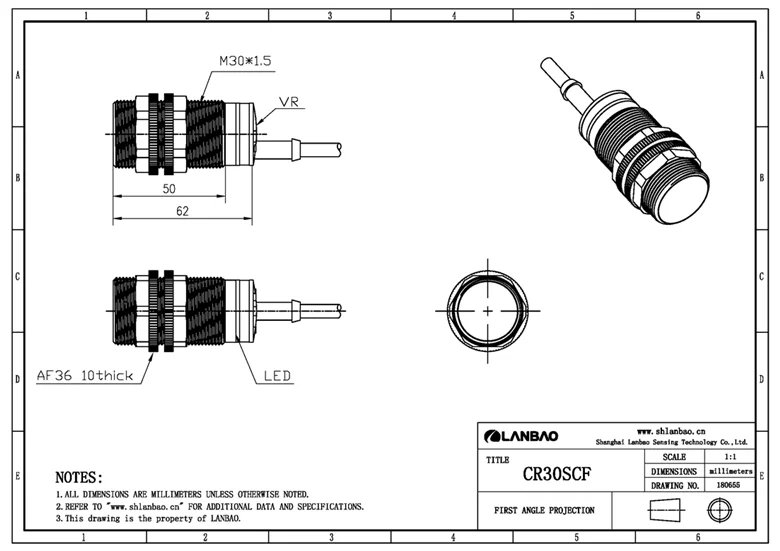

Dimension unit:mm

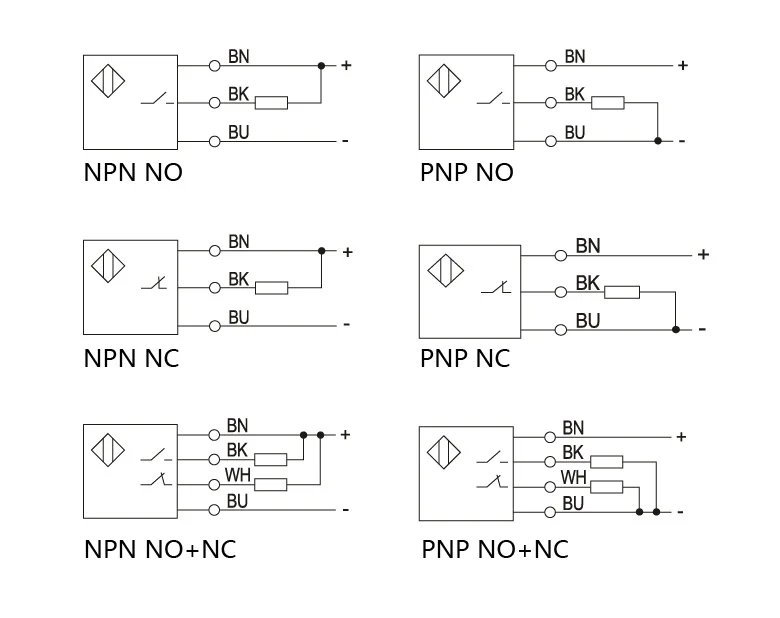

Wiring diagram
Packing
Packaging is designed according to specific products for better protection.
About Lanbao
Shanghai Lanbao sensing technology Co.,Ltd, member of China Instruments Manufacturers AssociationGoverning Units,
established in 1998 in Shanghai, a leading domestic industrial automation product supplier,specializing in the research,
development, production, sale and service of industrial sensors, sensor measurement and control systems.
Our products cover over 30 series, 5000 specifications, including inductive sensor, photoelectric sensor,capacitive
sensor,light curtain,laser distance measuring sensors. Our products are widely used in warehouse logistics, parking,
elevator,packaging,semi conductor, drone, textile, construction machinery, rail transportation,chemical, robot industry.
Our advantage
1 day shipping guarantee for stock item
20+ years OEM & ODM history with global top sensor brands
20+ years sensor manufacturing experience
90+ global R&D patents and copyrights
500+ employees(100+in R&D)
5000+ specification products
33000 sqm factory
3,000,000 pcs products per yea
Factory show
We are the first Chinese sensor manufacturer who designs our own smart production workshop:totally 40 products lines
including complete production lines which worked with Mitsubishi (Japan). 200 staffsin production line and 3 million
products per year.
Our certificates
Our standard products already obtained ISO9001, ISO14001, OHSAS18001, CE, UL ,CCC,ROHS certificates.
International Exhibitions
We attend about 10 international exhibitions every year , for example, IAS(Shanghai), IMTS (US), SPS(Germany),SPS
(Guangzhou) and other industrial shows (textile, robot, elevator, logistic etc.) .As a professional sensor manufacturer
with core competitiveness and complete value chain, our products sell well in more than 100 countries in the world,
allowing more customers to appreciate the charm of “passing the world, sensing the future”.
Our partners
Specializing in precision,Lanbao always adheres to the business philosophy of”Quality First,Reasonable Price, Prompt
Delivery, and Attentive Service", maximize the needs and continuously create long-term value and potential growth for
customers.With comprehensive and efficient services Lanbao's footprint has now spread to more than 100 countries and
regions around the world such as US, Canada, Germany Thailand etc.
Our customers
Specializing in precision, Lanbao always adheres to the business philosophy of “Quality First, Reasonable Price, Prompt
Delivery, and Attentive Service”, maximize the needs and continuously create long-term value and potential growth for
customers. With comprehensive and efficient services, Lanbao’s footprint has now spread to more than 100 countries
and regions around the world ……
Our team
FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger size orders
Q : Can I get a sample?
A : Of course, but you need to pay the minimum sample fee
Q : When will you ship my order?
A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
Q : How can you guarantee the production quality?
A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 20+ years professional
sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands.
