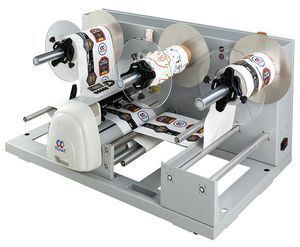

Digital Automatic Contour Cutting Roll-Roll Vinyl Sticker Label Cutter Machine

Product details
Max. cutting width:12"(305mm);Repeating Precision:0.082mm;
Max. cutting straight-line speed:960mm/s;Warranty:2 years;
Certification:CE Certificate;Automatic Grade:Automatic;
Max. media feeding size:16"(406mm);Brand Name:Vicut;
Payment Terms:L/C,T/T,Western Union;Supply Ability:600 Set/Sets per Year;
Weight:110KG;Type:Paper Cutting Machine;
After-sales Service Provided:Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;Max. cutting curve-line speed:600mm/s;
Compatible software:Label Studio;Dimension(L*W*H):980x710x460mm;
Packaging Detail:Standard Export PlyWooden Case;Place of Origin:Anhui China;
After-sales Service Provided:Engineers available to service machinery overseas;Port:shanghai;
Max. blank label size:300x300mm;Software:Label Studio;
Voltage:220V/110V;Max. down force:750g(3g/step);
Condition:New;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Retail,Food Shop,Printing Shops,Construction works ,Food & Beverage Shops,Advertising Company;
Product Description

Product Application

Digital Automatic Contour Cutting Roll-Roll Vinyl Sticker Label Cutter Machine

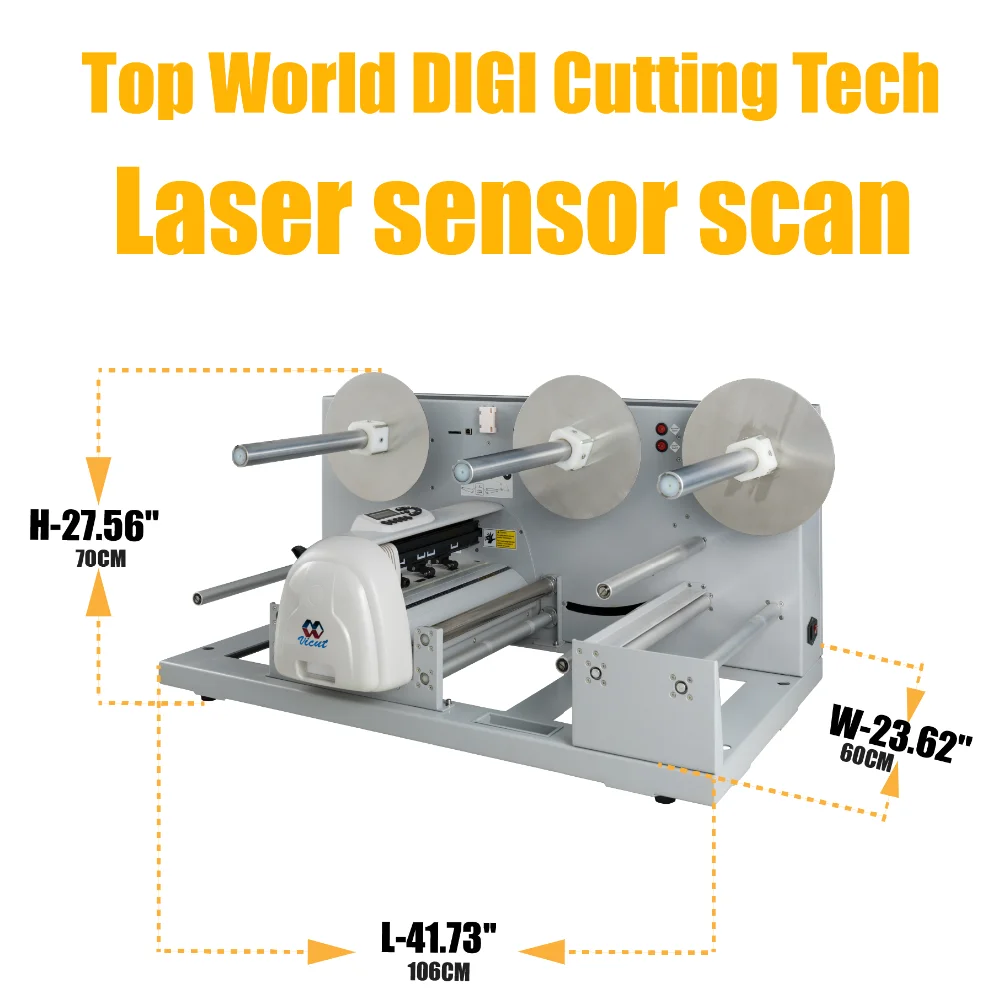

Field: VCT-LCR is the perfect roll to roll label cutter for labels and tags of all shapes and sizes for small to medium quantities, making it an ideal flexible machine for use in large production sites, as well as small and medium-sized companies, such as the food and beverage industry. This machine can fulfill all your needs in the field of product labeling.
Material: Stickers, Glossy paper, PET, PP, PVC, PC, Wall Paper, material thickness up to 300gsm.

Technical Parameters
Model
Roll Label Cutter VCT-LCR
Max. media feeding size
16" (406mm)
Max. cutting width
12"(305mm)
max blank label size
300x300mm
Max. cutting straight-line speed
37.8" /s (960mm/s)
Max. cutting curve-line speed
23.6"/s (600mm/s)
Motor power
25watt
Max. down force
750g (3g/step)
CPU
64 BIT DSP 32M Flash
Repeating precision
0.082mm
Noise
35 DB OR LESS
Compatible software
Label Studio
Software functions
1) Automatic offset sensor;
2) automatic inductive value;
3) control identification mark.
Ambient temperature
5 - 35 degrees
Support File Format
HPGL commands
Dimensions(without packing)
980x710x460mm
G.W / N.W
110/72kgs
Packing size
120x80x75cm

Main Features

1.It can compatible with any roll to roll label printer, cut any shape prints.
2.Label Studio software: designed by Australia DragonCut Company, it can create and print the register marks automatically, so that the labels are plotted with high precision.The distance between each label can be adjusted easily, avoiding material waste. PDF files can be made for printing on any roll to roll label printers.
3. Automatic contour cutting: With the assistance of optical sensor positioning systemm, register marks created and printed by LabelStudio are automatically scanned and the labels are plotted with high precision.
4. It also can sense different media's light-reflection to adjust sense sensitivity by itself to upgrade the cutting precision.
5. The material to be plotted is fed from a roll and also made available on a roll for further processing. Waste materail will be removed automatically and rolled up.
6. Thanks to the registration mark's special inline technology, the VCT-LCR label cutter achieves a very high speed when compared to regular cutting plotters and thus offers a high throughput of produced labels.

Detailed Images

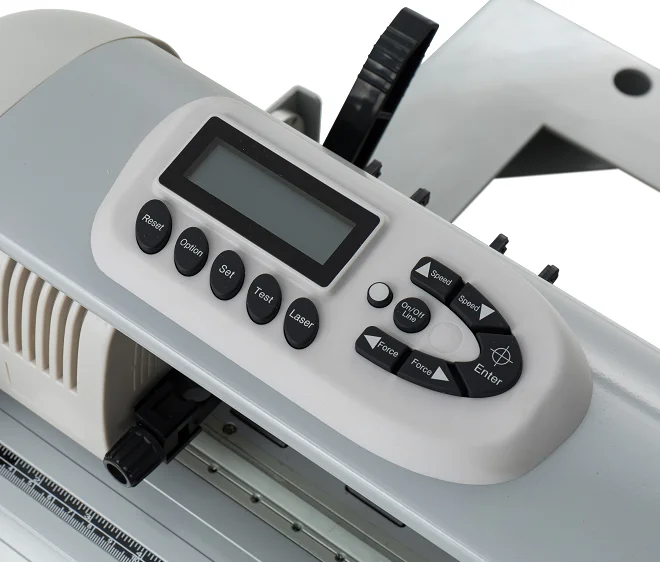

Control Panel

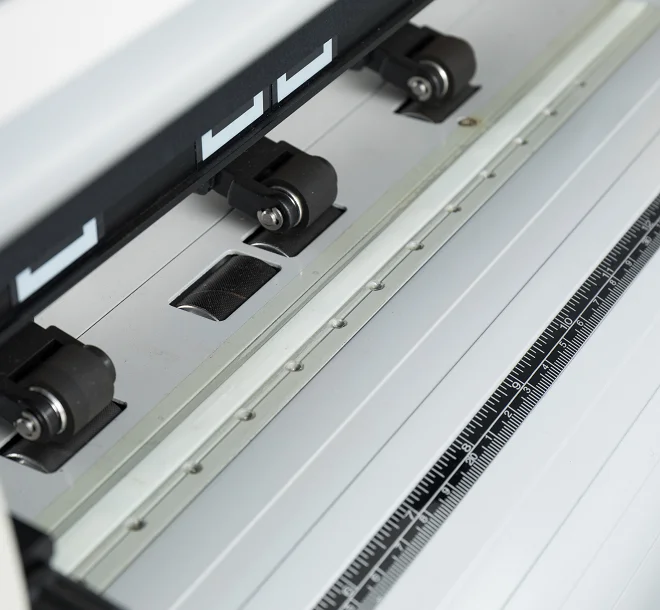

Steel thorn and Roller Pinch

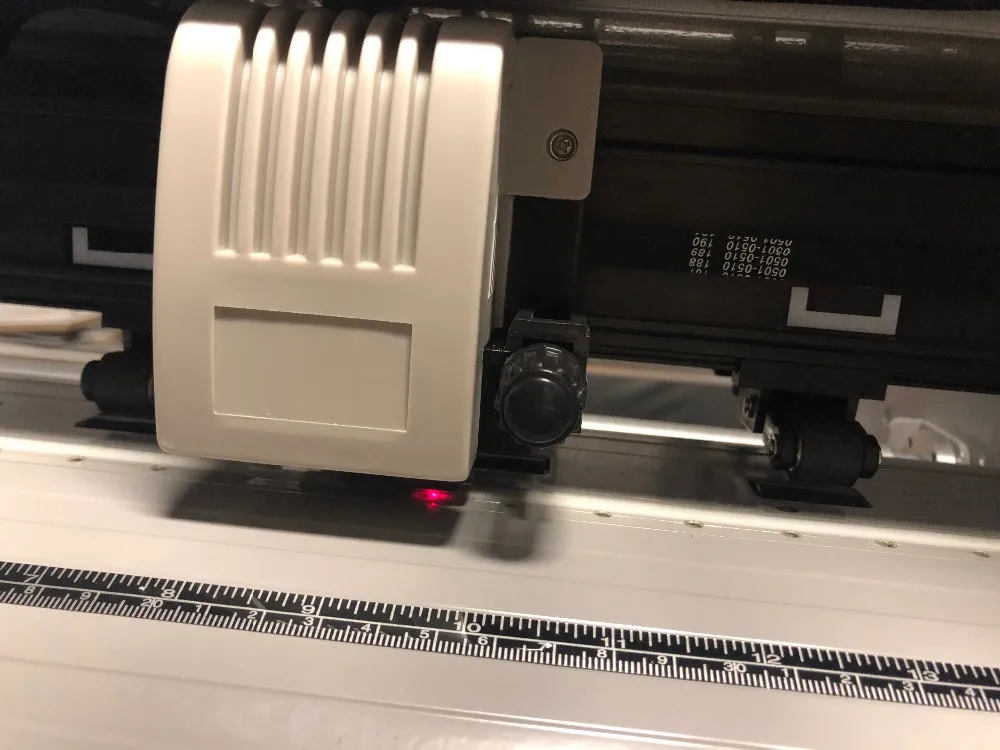

Registration Marks Red Sensor

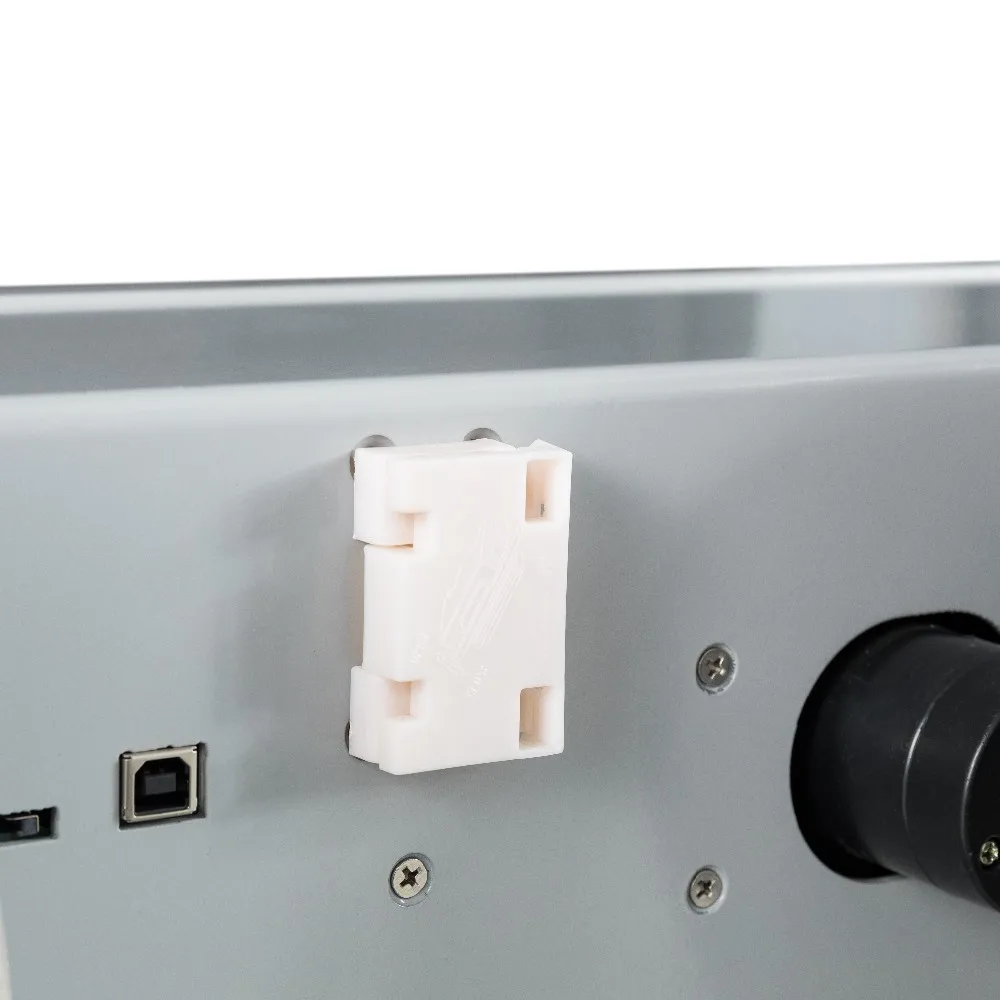

USB line slot

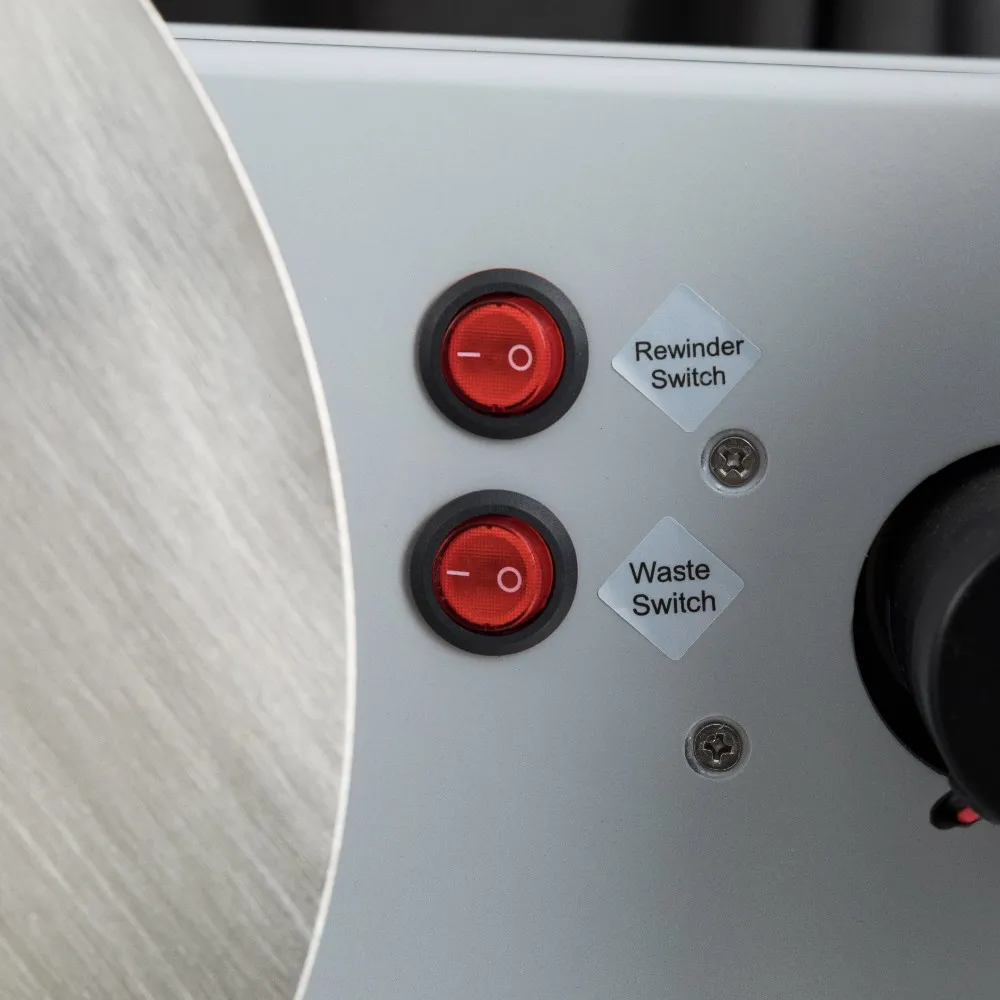

Waste-removal system

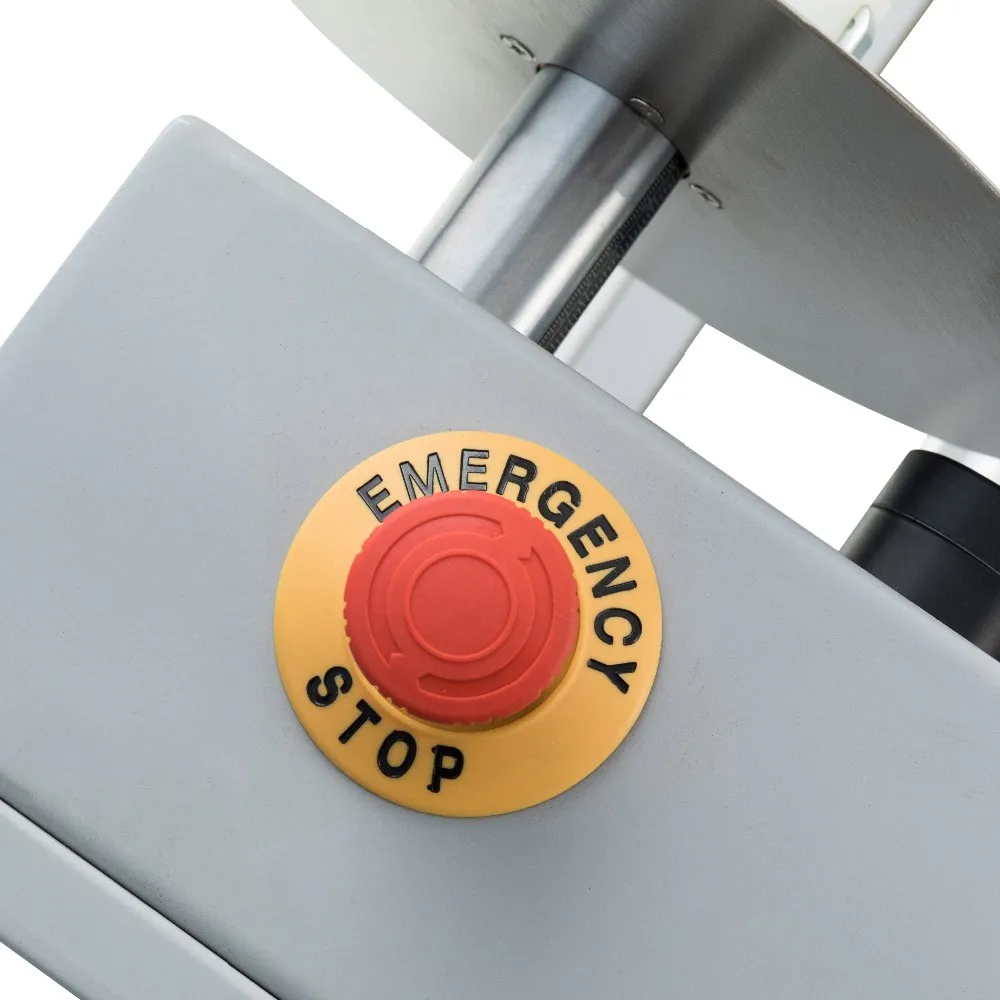

Emergency Button

Sample

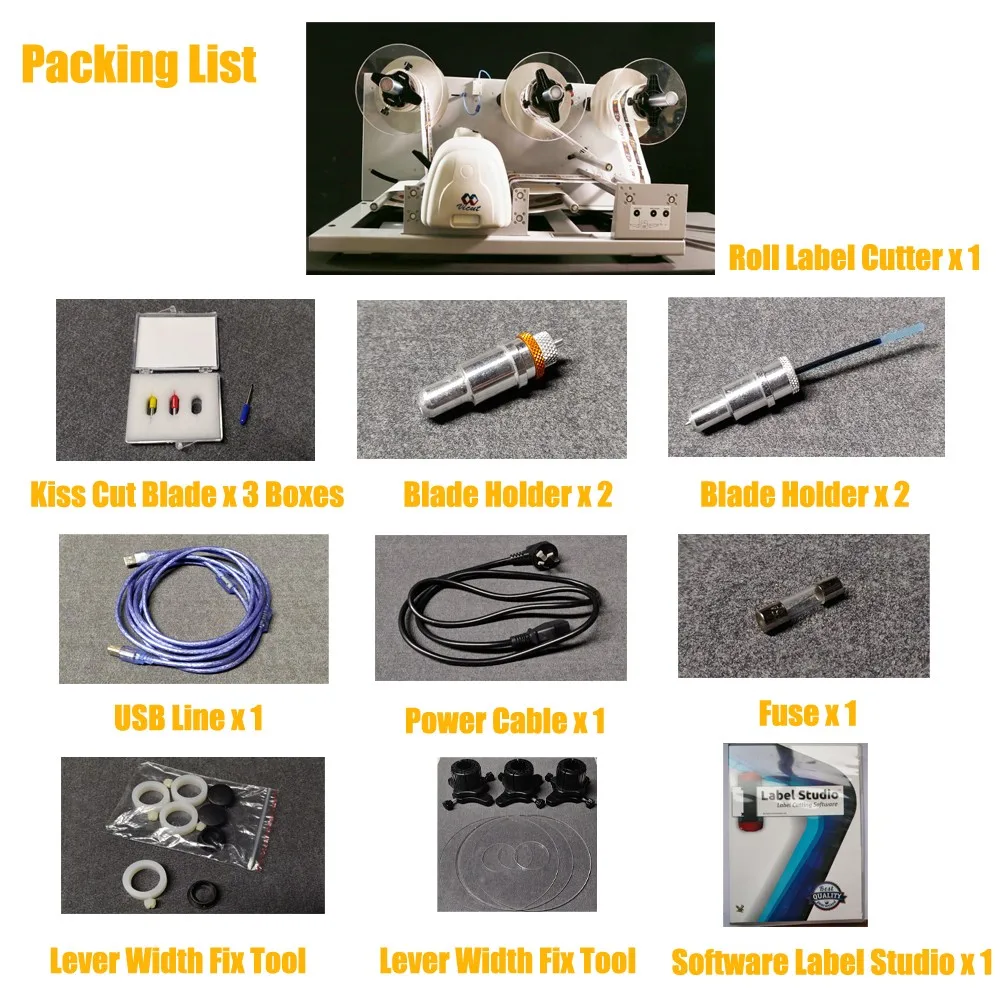

Packing & Delivery
Our Service

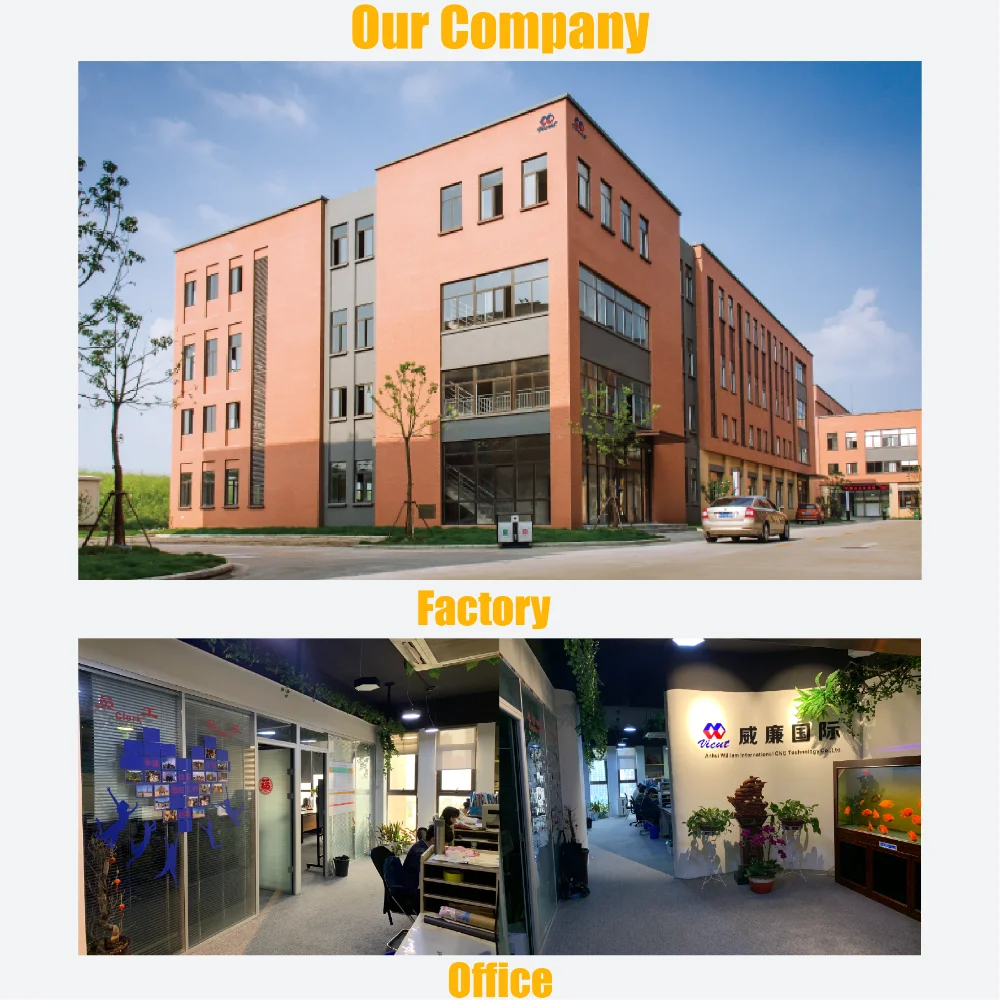

Our Company
Certifications
Related Products

            Sheet Label Cutter

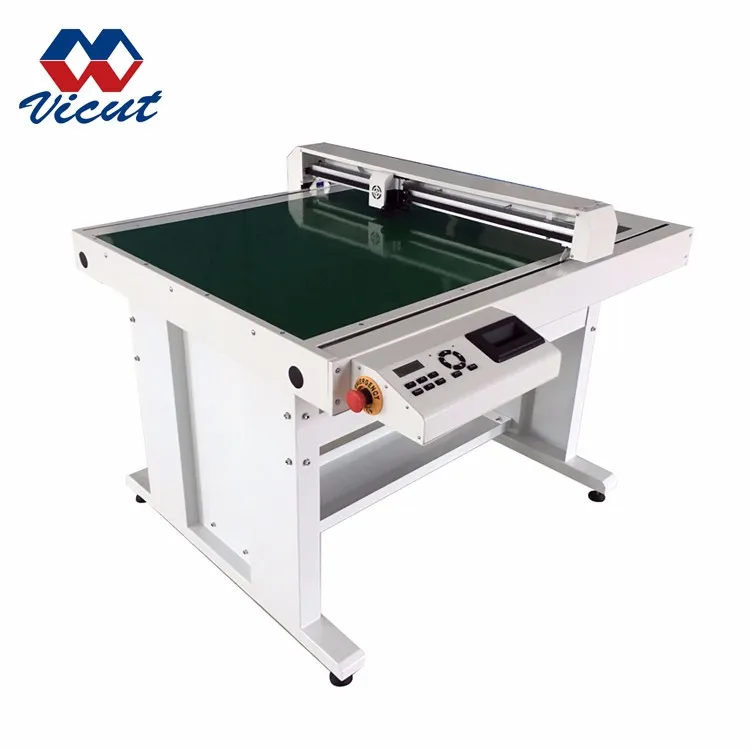

               Flatbed Cutter
