Cut and crease flatbed digital cutting table

Product details
Brand Name:VICUT;Packaging Detail:each parts fixed tightly and separated inside of a strong plywooden box;
Payment Terms:L/C,T/T;Applicable Industries:Hotels,Garment Shops,Machinery Repair Shops,Food & Beverage Factory,restaurant,HOME USE,Food Shop,Printing Shops,Food & Beverage Shops,Advertising Company;
After-sales Service Provided:Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;Place of Origin:China;
Warranty:1 YEAR;
Product Description



The ViCut MFC Series flatbed cutter including DragonCut Pro software is ideal for small and medium-sized production and samples of packaging, swing tickets and even labels. Processing material including paper, card, synthetics, films and kinds of labels, up to 500gsm.

Using advanced digital contour cutting technology, the Flatbed Cutter follows artwork cut lines drawn in Adobe® Illustrator® or CorelDRAW®, no cutting dies required, the sheets are produced to any shape, instantly and directly from the desktop. It can handle full cutting, half cutting, creasing and even drawing.

Two models are available, the desktop MFC4560 model offers maximum media area up to 450x600mm, ideal for 2 or more sheets side by side, while free-standing MFC6090 model offers a larger cutting area 600x900mm, enabling users to cut either larger sheets or to batch more sheets next to each other for increased productivity.

Application Field: Prototype and light production, on-demand packaging and sheet card cutting system – also suitable for sheet labels.

Process Material: cardboard, craft paper, plastic board, fibrous cardboard, rubber sheet and thin film etc.
PVC: Less than 0.4mm
Reflective Film: All types
Sandblast, Hard paper: Less than 450gsm
Magnetic Sticker: Less than 600micron
PET: Less than 0.3mm, vinyl, etc.

Technical Parameters
Flatbed Cutter
VCT-MFC4560
VCT-MFC6090
Body Frame

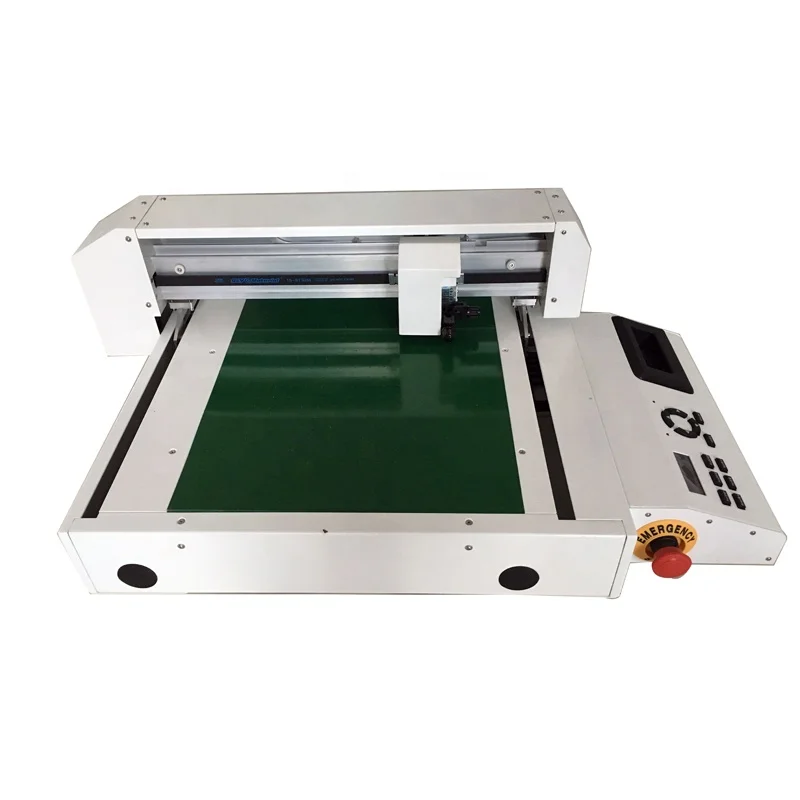

Desktop (optional stand)

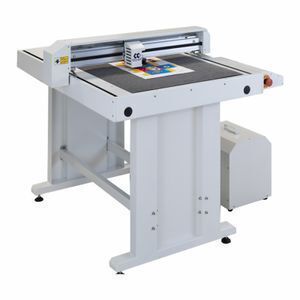

With Stand
Machine Dimension
1050x790mm(3.44x2.59ft)
1450x1380mm(4.75x4.53ft)
Effective Cutting Area
450mm x 600mm(1.47x1.97ft)
600mm x 900mm(1.97x2.95ft)
Dual Cutting Head
Blade & Ball-bearing Creasing Tool (a pen tool included)
Working Method
Contour Full Cutting & Kiss Cutting, Creasing, Drawing
Registration System
Advanced Registration Mark Sensing System (ARMS)
Cutting Software
DragonCut Pro
Interface
USB
Working Mode
PC Control, Windows 64bit supported
Mechanical Resolution
0.01254mm
Programmable resolution
HPGL0.025mm
Max. Cutting Speed
600mm/s
Max. down Force
1000g
Max. Cutting Thickness
1.2mm
Media Fixture Method
Vacuum suction with Vacuum Pump (muffler is optional for MFC6090)
Repeat Precision
≤0.05mm
Control system
Servo
Working Voltage
110V-240V optional
Working Environment
5 to 35 Degrees, no dust, flat working platform
Power
700W
1000W
N.W/G.W
44KG/72KG
70KG/100KG
Dimensions
88x100x32cm(WXLXH)
114 x 118 x 93cm(LXWXH)
Packing Size
123×100×46cm(0.57cbm)
142×131×59cm(1.1cbm)

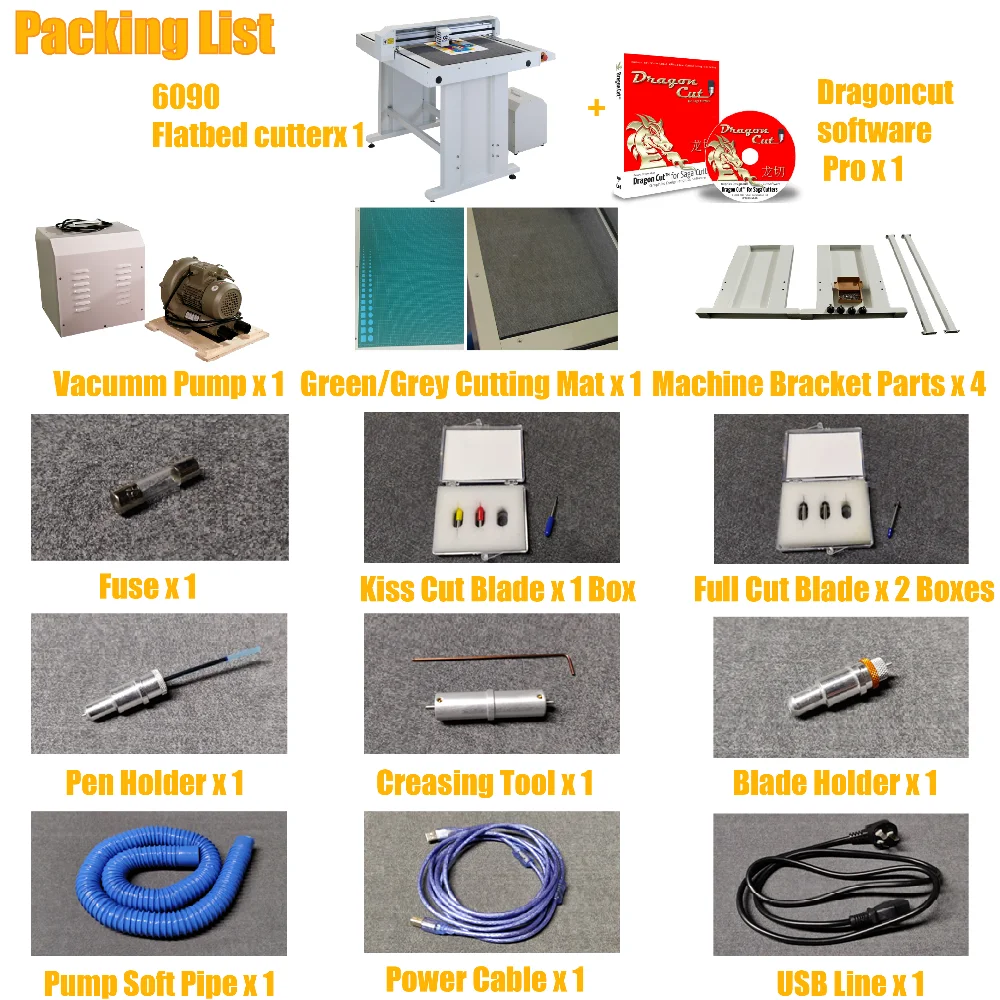

Packaging & Shipping



Our Services



Company Information

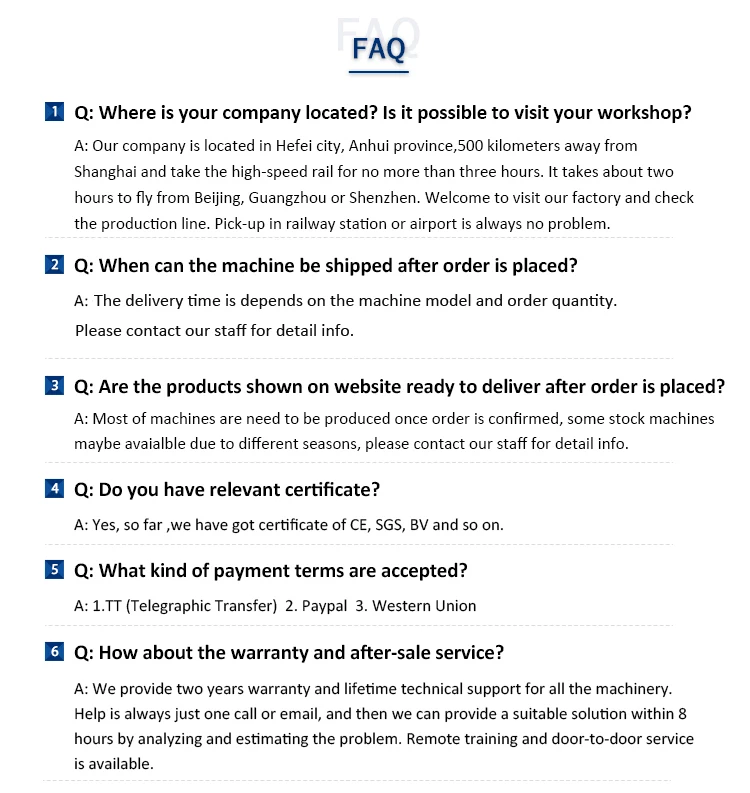

FAQ
