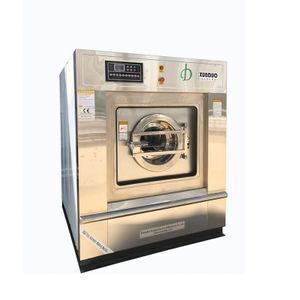

Automatic 20kg laundry washer extractor

Supplier: Shanghai Xunduo Laundry Equipment Co., Ltd.
Region: Shanghai, China
Contact: Ms Cassie Xu
Price: $9500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Description:	Industrial Laundry Washing Machine;	Port:	shanghai;
Capacity:	10kg - 150kg;	Packaging Detail:	wooden case;
Bottom Type:	Normal / Tilt;	Power(W):	7.5kw;
Heating:	Electric / Steam;	Machine Type:	Industrial Washer;
Certification:	CE,ISO;	Warranty:	1 year;
Qualification:	ISO14001 & ISO9001;	Export Record:	97 Countries;
Supply Ability:	100 Set/Sets per Month;	Brand Name:	xunduo;
Applicable Industries:	Hotels,school,hospital;	Cleaning Process:	Hot Water Cleaning;
Structure:	Soft Mount;	Material:	stainless steel;
Condition:	New;	HS Code:	84502012;
Use:	laundry machine;	Dimension(LWH):	182019602250;
Fuel:	Electric;	Cleaning Type:	laundry machine;
Voltage:	220/380/400/415/440V;	Control System:	Full Automatic;
Place of Origin:	Shanghai China;	Payment Terms:	L/C,T/T;
After Warranty Service:	Video technical support;	After-sales Service Provided:	Video technical support;

Product Pictures

Product Parameters

Industrial Laundry Washing Machine

1. Fully automatic, microcomputer-controlled.
2. High quality stainless steel, good appearance, long life.
3. Microprocessor,freely programmable,5 standard programmes, 25 possible programmes.
4. Full suspension shock structure, suspension, combination of shock absorbers and springs for maximum absorption, need no excessive foundations.
5. Imported bearing, precise and durable.
6. Fixed support for long-distance transportation, avoid shaking damage during transit.
7. High quality inverter system, easily realize washing and dehydration frequency stepless adjusting.
8. Built-out bearing lubrication, simple operation, convenient maintenance.
9. Safety door interlock system.
10. Multiple sealing system, oil sealing , water sealing, stainless steel sealing.

Technical Specification:

Model	XGQ-15F	XGQ-20F	XGQ-25F	XGQ-30F	XGQ-50F	XGQ-70F	XGQ-100F
Washing Capacity(kg)	15	20	25	20-30	40-50	55-70	80-100
Rolling Container Dimension(mm)	Φ700×440	Φ750×500	Φ800×500	Φ880×560	Φ990×670	Φ1200×650	Φ1200×850
Rolling Container Speed(r/min)	850	800	52/520	40/750	38/700	35/680	30/650
Rated Voltage(V)	220	220	380	380	380	380	380
Motor Power(kw)	1.5	2.2	2.2	4	5.5	7.5	7.5
Frequency Converter Power(kw)	1.5	2.2	3.7	5.5	7.5	11	11
Diameter of Hot Water Pipe(lnch)	1	1	1	1	1 1/4	1 1/2	2
Steam lnlet(lnch)	1	1	1	1	1	1	1
Diameter of Cold Water Pipe(lnch)	1	1	1	1	1 1/4	1 1/2	2
Steam Pressure(Mpa)	0.3-0.5	0.3-0.5	0.3-0.5	0.3-0.5	0.3-0.5	0.3-0.5	0.3-0.5
Consumes Proportion of Steam(kg/kg)	0.9	0.9	0.9	0.9	0.9	0.9	0.9
Air Pressure(Mpa)	/	/	/	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Dimension(mm)	1050x950x1500	1200x1080x1750	1220x1250x1650	1400×1380×1720	1500×1550×1760	1800×1760×2210	1850×1950×2250
N.W.(kg)	400	500	1100	1200	2000	3000	3500
G.W.(kg)	460	660	1200	1300	2200	3200	3700
