XGQ-25F series washing machine automatic extraction machine

Product details
place of origin; place of origin:China Shanghaigasoline:electrical
Supply capacity:100 sets per monthstrength:7.5kW
payment terms:letter of credit, wire transferdescribe:Commercial Laundry Equipment Seller
Marketing Type:New Products 2020Packaging Details:wooden box
brand:find flowersheating:electricity, steam, electricity, steam
use:washing machineType of machine:Industrial washing machine
Dimensions (L*W*H):1820*1960*2250Material:Stainless steel
Voltage:220,380,400,415,440VCore Components Warranty:1 year
Cleaning process:hot water cleaningHealth status:new
Cleaning Type:washing machineport:Shanghai
Core components:PLC, bearing, motorcapacity:15kg-100kg
Mechanical test report:ifWarranty:1 year
Applicable industries:hotels, schools, hospitalsVideo external inspection:if
Weight (kg):3500 kgShowroom location:Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia

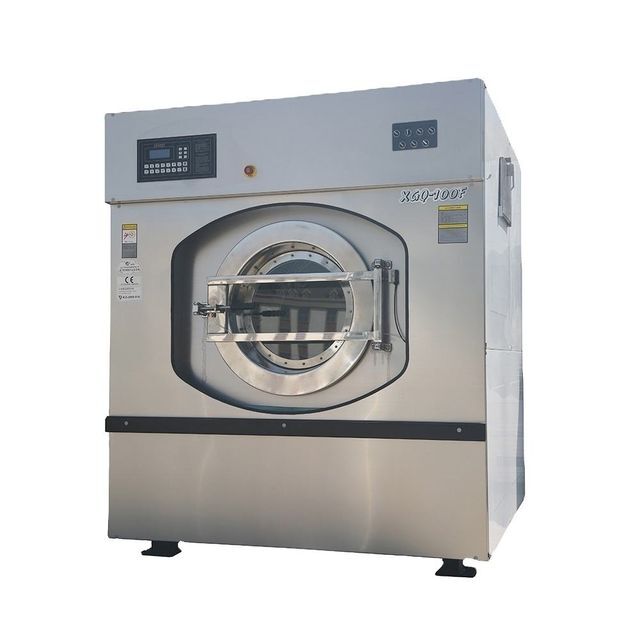

Product Image

Product parameters

Commercial Laundry Equipment Seller

1. Fully automatic, microcomputer control.
2. High quality stainless steel, beautiful appearance and long life.
3. Microprocessor, freely programmable, 5 standard programs, 25 possible programs.

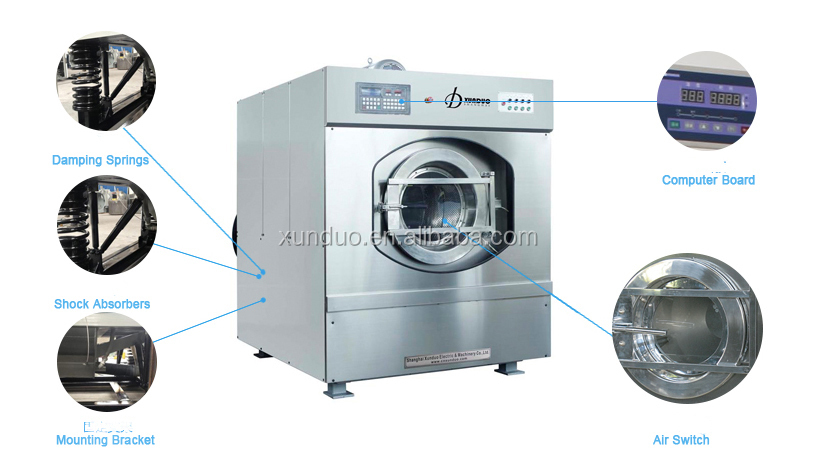

4. Full suspension shock absorption structure, suspension, shock absorber and spring combination, maximum absorption, no need for too much foundation.
5. Imported bearings, precise and durable.
6. Long-distance transportation of fixed brackets to avoid shaking and damage during transportation.
7. High-quality frequency conversion system, easy to achieve stepless adjustment of washing and dehydration frequency.
8. Built-in bearing lubrication, simple operation and convenient maintenance.
9. Safety door interlocking system.
10. Multiple sealing system, oil seal, water seal, stainless steel seal.

Technical Specifications:

ModelXGQ-15FXGQ-20FXGQ-25FXGQ-30FXGQ-50FXGQ-70FXGQ-100F
Washing amount (kg)15202520-3040-5055-7080-100
Rolling container size (mm)Φ700×440Φ750×500Φ800×500Φ880×560Φ990×670Φ1200×650Φ1200×850
Rotation speed of rolling container (r/min)85080052/52040/75038/70035/68030/650
Rated voltage (V)220220380380380380380
Motor power (kw)1.52.22.245.57.57.5
Inverter power (kw)1.52.23.75.57.51111
Hot water pipe diameter (lnch)11111 1/41 1/22
Steam inlet (lnch)1111111
Cold water pipe diameter (lnch)11111 1/41 1/22
Steam pressure (Mpa)0.3-0.50.3-0.50.3-0.50.3-0.50.3-0.50.3-0.50.3-0.5
Consumption steam ratio (kg/kg)0.90.90.90.90.90.90.9
Air pressure (Mpa)///0.4-0.60.4-0.60.4-0.60.4-0.6
Dimensions (mm)1050x950x15001200x1080x17501220x1250x16501400×1380×17201500×1550×17601800×1760×22101850×1950×2250
Net weight (kg)40050011001200200030003500
Gross weight (kg)46066012001300220032003700



Show details



our certificate

sales team

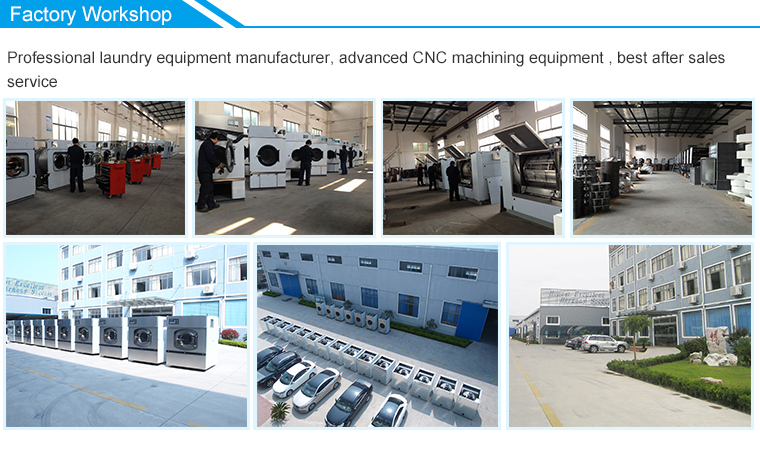

workshop
