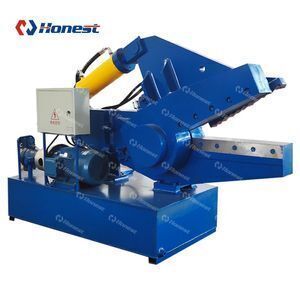

Alligator Hydraulic Scrap Metal Steel Crocodile Shear Machines

Supplier: Henan Honest Heavy Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Honest Hao
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Usage:	Automatic Control Operation;	Function:	Hydraulic Scrap Metal Shear Machine;
Packaging Detail:	Wooden or Standard package for our Alligator Hydraulic Scrap Metal Steel Crocodile Shear Machines;	Power (kW):	60;
After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Applicable Industries:	Manufacturing Plant,Scrap Metal Steel Crocodile Shear Machines;
Max. Cutting Force (Ton):	600 ton;	Key Selling Points:	Automatic;
Blade Length:	800-1800 mm;	Product name:	Alligator Hydraulic Scrap Metal Steel Crocodile Shear Machines;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Cash or Alibaba Assurance;	Brand Name:	HONEST;
Voltage:	380 v/50 HZ(as Customers' Request );	Certification:	CE ISO;
Warranty:	1 year;	Application:	Industrial Metal Cutting;
Port:	Qingdao or as required;	Place of Origin:	Henan China;
Keyword:	Scrap Metal Steel Crocodile Shear Machines;	Supply Ability:	10 Set/Sets per Month Alligator Hydraulic Shears Machine For Waste Metal Recovery;
Condition:	New;	Cutting Speed:	4-16 times/min;
Machine Type:	Alligator Hydraulic Shears;	Blade Opening:	380-860 mm;
Weight (KG):	2200;	Material / Metal Processed:	Brass / Copper,ALLOY,Carbon Steel,Aluminum,Stainless Steel,Rolled steel;

Alligator Hydraulic Scrap Metal Steel Crocodile Shear Machines

HYDRAULIC ALLIGATOR SHEAR

GET THE LATEST QUOTE ↓

PRODUCT DESCRIPTION

Alligator Hydraulic Scrap Metal Steel Crocodile Shear Machines is one of the metal shears, it is hydraulically driven, with reliable safety and convenient operation. Cutting edge length of shearing machine: 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm; shear force ranges from 63 tons to 400 tons in eight grades, suitable for users with different sizes and requirements.

REQUEST A QUOTE RIGHT NOW ↓

APPLICATION

Alligator Hydraulic Scrap Metal Steel Crocodile Shear Machines is suitable for metal recycling processing factor, the automatic dismantling plants, smelting foundry industry, all kinds of shape steel and all kinds of metal structures for cold cut, processed into qualified burden.

TELL US YOUR RAW MATERIAL ↓

PRODUCT FEATURES

TECHNICAL PARAMETERS

Model	Motor Power	Max.Cutting Force	Blade Length	Max.Blade Opening	Shearing Speed
HNAS-100	7.5 Kw	100 Ton	600 mm	320 mm	14-25 times/min
HNAS-160	18.5 Kw	160 Ton	700 mm	340 mm	11-20 times/min
HNAS-200	22 Kw	200 Ton	800 mm	380 mm	10-18 times/min
HNAS-250	30 Kw	250 Ton	1000 mm	460 mm	8-12 times/min
HNAS-315	37 Kw	315 Ton	1000 mm	510 mm	6-10 times/min
HNAS-400	22*2 Kw	400 Ton	1500 mm	660 mm	4-10 times/min

NOTE:

Working Voltage:380V, 415V ,440V or can be customized.

(If you want more detailed parameters and quotations, please contact us)

TELL US THE MODEL YOU NEED ↓

HNAS-100

HNAS-160

HNAS-200

HNAS-250

HNAS-315

HNAS-400

REQUEST A QUOTE RIGHT NOW ↓

CUSTOMER SITE

1. The blade is screwed, replaceable and available on all 4 sides.

2. Adjustment system and friction plate can adjust the gap between the cutter head and the knife holder to prevent the cutter head from reversing.

3. High-pressure soft oil pipe to reduce vibration and prevent oil leakage.

4. PLC and manual operation can choose.

5. Hydraulic transmission system, safe and reliable design, convenient operation.

6. Various models have different cutting forces, and the blade length can be customized according to customer needs.

GET THE LATEST QUOTE ↓

CUSTOMER SITE

WELCOME TO OUR FACTORY

Henan Honest Heavy Machinery Co.,Ltd is a professional company which is specialized in research and development, production and sales of renewable energy and organic solid waste environmental protection equipment.
