Waste Tire Shredder / Rubber Crusher / Old Tire Recycling Machine

Supplier: Henan Honest Heavy Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Honest Hao
Price: $24000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE ISO;	Type:	Rubber Cutting Machine;
Condition:	New;	Tire Machine Type:	Tire Recycling Machine;
Local Service Location:	Malaysia,Australia,Tajikistan,Philippines,Indonesia,Thailand;	Model Number:	HNSS1000;
Weight (KG):	15000;	Year:	NEW;
Package Preview:	;	Place of Origin:	Henan China;
Port:	Qingdao, Shanghai or as required;	Supply Ability:	20 Set/Sets per Month;
Name:	Waste Tire Shredder / Rubber Crusher / Old Tire Recycling Machine;	Voltage:	380V/50HZ;
Warranty:	1 YEAR;	Key Selling Points:	Automatic;
Applicable Industries:	Manufacturing Plant,Energy & Mining,High Quality Waste Tire Shredder;	Brand Name:	Honest;
Showroom Location:	Australia,Egypt,Viet Nam,Philippines,Thailand;	After-sales Service Provided:	Video technical support,Online support;
After Warranty Service:	Video technical support,Online support;	Power (kW):	45;
Dimension(LWH):	325013802300mm;	Function:	Tire Powder/Granule Recycling Machine;
Product name:	Waste Tyre Shredder Line;	Color:	Blue, Gray or customized;
Application:	Waste Tire Processing Machinery;	Usage:	Crush whole tires into small pieces blocks;
End product:	3-8 cm blocks;	Raw material:	Waste Tires;
Machine Type:	Fully Automatically;	Packaging Detail:	Waste Tire Shredder / Rubber Crusher / Old Tire Recycling Machine In plastic wrap, wooden case and container; or as required;
Payment Terms:	L/C,T/T,Western Union;

Waste Tire Shredder / Rubber Crusher / Old Tire Recycling Machine

WHOLE TIRE SHREDDER

GET THE LATEST QUOTE ↓

WORKING PRINCIPLE

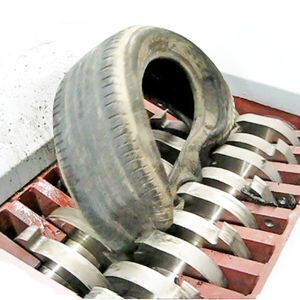

Waste Tire Shredder / Rubber Crusher / Old Tire Recycling Machine is the preprocessing equipment, the pre-sorted material to be chopped is fed into the two shafts whose rotors are moving slowly in opposite directions (therefore dust and noise free).

The cutting discs are plugged on the shaft. This double shaft shredder is designed for longevity; The number of the knives or their width respectively determines the size of the output material.

GET WORKING VIDEO ↓

TECHNICAL PARAMETERS

Model	HNWT1000	HNWT1200	HNWT1500	HNWT1900	HNWT2600
Motor Power	30*2 Kw	75*2 Kw	90*2 Kw	110*2 Kw	160*2 Kw
Capacity	1-1.5 T/H	2-3 T/H	4-5 T/H	6-8 T/H	8-12 T/H
Blade Number	26 Pieces	30 Pieces	26 Pieces	32 Pieces	42 Pieces
Output Size	3-8 cm	3-8 cm	3-8 cm	3-8 cm	3-8 cm
Input Opening Size	1200*1000 mm	1500*1200 mm	2000*1500 mm	2500*2000 mm	3000*2500 mm
Dimension L/W/H	3.52.23.5 m	4.62.33.5 m	5.12.43.5 m	6.52.53.5 m	8.24.03.5 m
Weight	8.5 T	13 T	15 T	17.5 T	36 T

NOTE:

The Waste Tire Shredder / Rubber Crusher / Old Tire Recycling Machine is our standard configuration. For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request;

We design single or multi-hook blades with different thickness for different materials.

TELL US THE MODEL YOU NEED ↓

MACHINE FEATURES

Waste Tire Shredder / Rubber Crusher / Old Tire Recycling Machine is mainly composed of feed hopper, double shaft cutting system, PLC control system, discharging conveyor system and power system, etc;

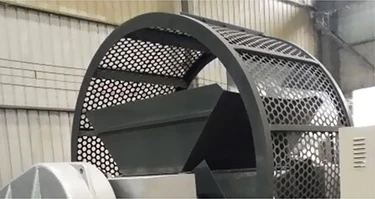

The rotary sieve structure can control the output size easily, is convenient for maintenance.

Steel plate of crushing chamber is very thick, so very strong and durable, long service life.

Blade materials include 9CrSi, Cr12MoV, SKD-II, D2, DC53, etc. It also can be customized.

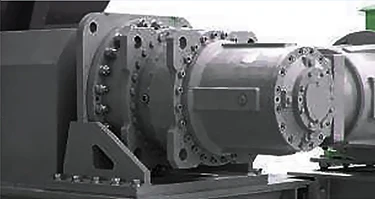

The speed reducer can adopt hard tooth surface reducer, high precision, high transmission efficiency.

Feed hopper can be designed according to different raw materials, suitable for different materials.

Button control, easy to operate, start, stop,forward, reverse, overload protection, etc.

GET THE BEST PRICE ↓

FAQ

Q: When we establish one kind of shredder machine, can we use it to shred other materials?

A: Yes, you can. We will design the shredder machine for you as per your materials.

Q: How to choose a suitable shredder?

A: Please tell us your raw material and what capacity you need, we will recommend you the most suitable shredder.

Q: What About The Machine Installation?

A: For the Waste Tire Shredder / Rubber Crusher / Old Tire Recycling Machine installation, we will provide you the wire connection drawing and technical support, normally you can finish by yourself; but if you really need our technician, we will send technician to your working site as required.

Q: How About The Spare Parts?

A: We provide spare parts at cost price permanently and will give you the spare parts list when you purchase machine.

Q: Will you test the shredder machine before delivery?

A: Yes, we will test every machine and production line before delivery and send you the working video. You also can come to us for inspection before delivery.
