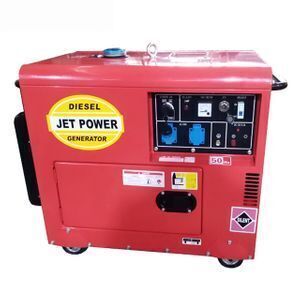

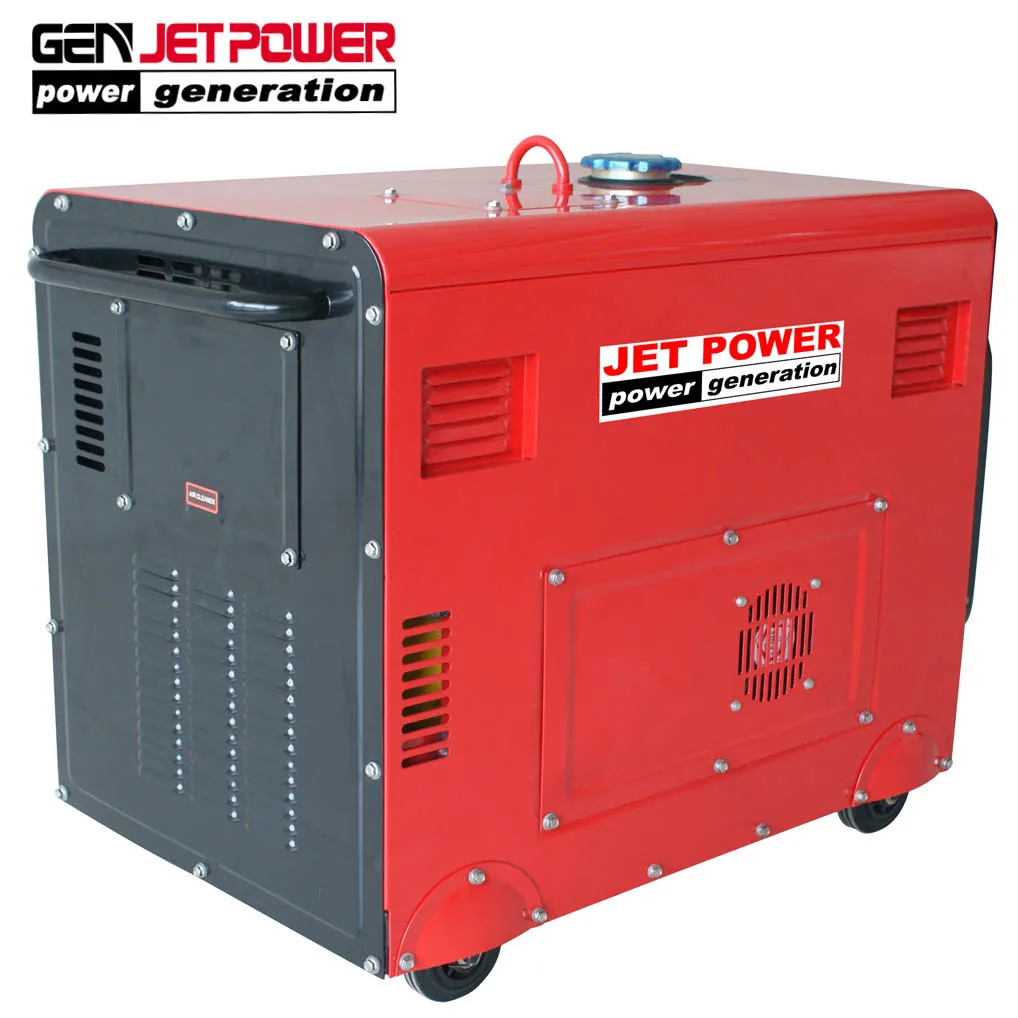

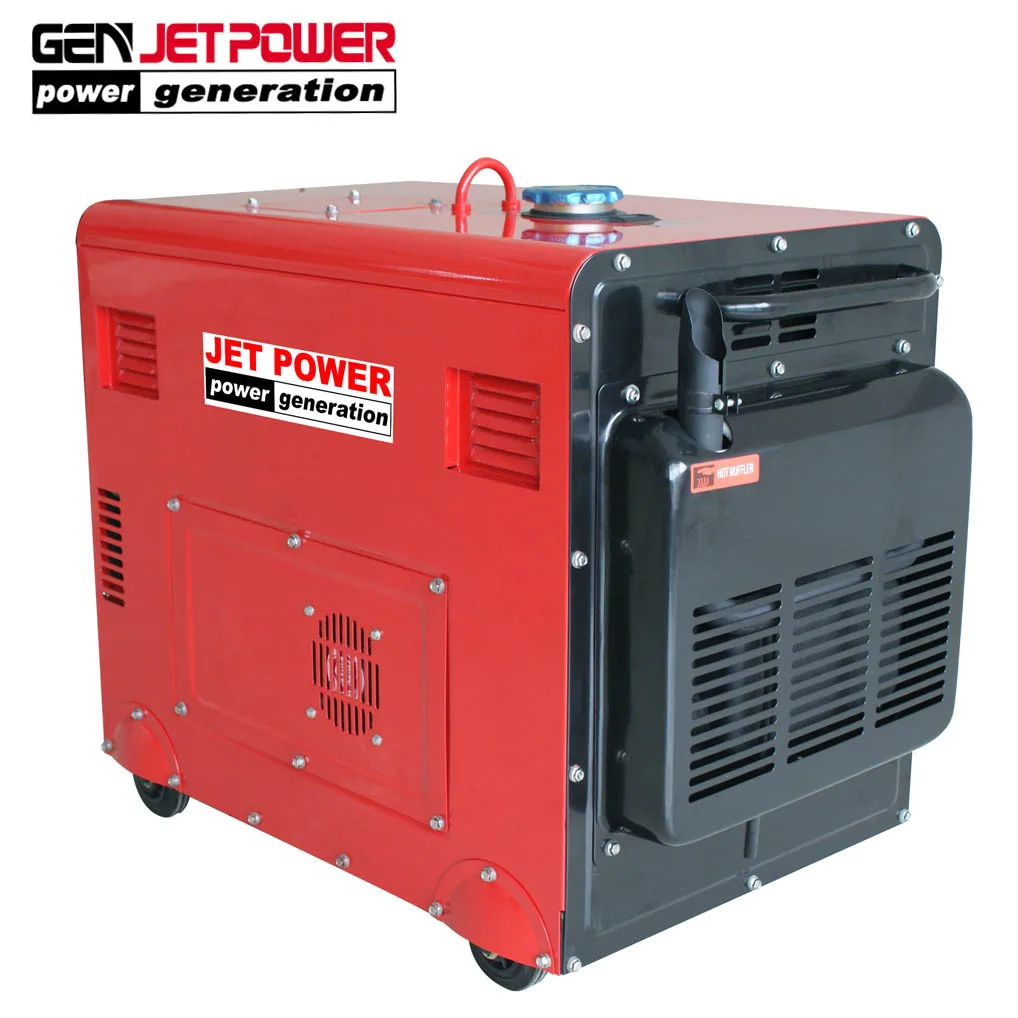

diesel generator 6kv portable standby power genset for home use

Supplier: Fuzhou Jet Electric Machinery Co., Ltd.
Region: Fujian, China
Contact: Ms Phoebe Qiu
Price: $298.00 / >=4 sets
Min. Order: 4 sets

Click here to contact

Product details

Supply Ability:	400 Set/Sets per Month;	Speed:	1500RPM / 1800RPM optional;
Brand Name:	JET POWER;	Packaging Detail:	Strong Carton package;
Product Name:	mini diesel generator;	Frequency:	50HZ/60HZ optional;
Rated Voltage:	220V/380V- 230V/400V- 440V-480V-optional;	Port:	Fuzhou port;
Model Number:	diesel generator;	Color:	Customers' Requirement;
Engine:	Chinese Engine;	Warranty:	12 Months/1000 Hours;
Rated Current:	10A - 3000A;	Keyword:	6kv diesel generator;
Alternator:	Brushless;	Type:	Silent(super Silent)or Open;
Generator type:	Electric Power Diesel Generator;	Options:	Waterproof Canopy;
Payment Terms:	L/C,T/T;	Certificate:	CE/ISO9001;
Place of Origin:	Fujian China;

Technical Datas

Model	JDE3500SE	JDE6500SE	JDE7500SE	JDE8500SE	JDE9500SE
Rated frequency (Hz)	50 60	50 60	50 60	50 60	50 60
Rated output (KW)	2.8 3.3	4.5 5.0	5.0 5.5	5.5 6.0	6.0 6.5
Max. output (KW)	3.2 3.8	5.0 5.5	5.5 6.0	6.0 6.5	6.5 7.0
Rated Voltage (V)	230 120/240	230 120/240	230 120/240	230 120/240	230 120/240
Rated current (A)	12.2 27.5/13.8	19.6 41.7/20.8	21.7 45.8/22.9	23.9 50/25	26 54/27
Rated rotation speed (r/min)	3000 3600	3000 3600	3000 3600	3000 3600	3000 3600
Phase NO.	Single phase	Single phase	Single phase	Single phase	Single phase
Power factor (Cos Φ)	1	1	1	1	1
Insulation Grade	B	B	B	B	B
Pole number	2	2	2	2	2
Excitation mode	Self-excitation & constant voltage (AVR)	Self-excitation & constant voltage (AVR)	Self-excitation & constant voltage (AVR)	Self-excitation & constant voltage (AVR)	Self-excitation & constant voltage (AVR)
Panel Type	General Panel	General Panel	General Panel	General Panel	General Panel
Voltage (V)	115/230 120/240	115/230 120/240	115/230 120/240	115/230 120/240	115/230 120/240
Receptacle	Two receptacles	Two receptacles	Two receptacles	Two receptacles	Two receptacles
DC12V output	Connection pole output	Connection pole output	Connection pole output	Connection pole output	Connection pole output
Noise level(7m)dB(A)	60	60	65	65	65
Structure type	Silent frame	Silent frame	Silent frame	Silent frame	Silent frame
Engine Model	KM178FG	KM186FAG	KM188FG	KM188FG	KM192FG
Engine Type	Single cylinder, vertical, four-stroke, direct injection,air-cooled	Single cylinder, vertical, four-stroke, direct injection,air-cooled	Single cylinder, vertical, four-stroke, direct injection,air-cooled	Single cylinder, vertical, four-stroke, direct injection,air-cooled	Single cylinder, vertical, four-stroke, direct injection,air-cooled
Cylinder NO.-bore×stroke (mm)	1-78×62	1-86×72	1-88×75	1-88×75	1-92×75
Displacement (ml)	296	418	456	456	518
Rated power [KW/(r/min)]	3.68/3000 4.0/3600	5.7/3000 6.3/3600	7.5/3000 8.2/3600	7.5/3000 8.2/3600	8.0/3000 9.2/3600
Compression ratio	20:01	19:01	19:01	19:01	19:01
Lubrication system	Pressure splashed	Pressure splashed	Pressure splashed	Pressure splashed	Pressure splashed
Starting system	Electric Start	Electric Start	Electric Start	Electric Start	Electric Start
Lube oil brand	CD grade or SAE10W-30,15W-40	CD grade or SAE10W-30,15W-40	CD grade or SAE10W-30,15W-40	CD grade or SAE10W-30,15W-40	CD grade or SAE10W-30,15W-40
Lube capacity (L)	1.1	1.65	1.65	1.65	1.65
Starting motor capacity (V-kW)	12V 0.8kW	12V 0.8kW	12V 0.8kW	12V 0.8kW	12V 0.8kW
Charging generator capacity (V-A)	12V 3A	12V 3A	12V 3A	12V 3A	12V 3A
Battery capacity (V-Ah)	12V 36Ah	12V 36Ah	12V 36Ah	12V 36Ah	12V 36Ah
Fuel consumption (g/kW.h)	≤370	≤360	≤360	≤360	≤360
Fuel tank capacity (L)	13.5	13.5	13.5	13.5	13.5
Continuous running time (hr)	8.5	5.5	5.5	5.5	5.5
Packing size MM	930×530×740	930×530×740	930×530×740	930×530×740	930×530×740
G.Weight	155	160	163	165	170
Loading quantity @ 20GP	72 pcs	72 pcs	72 pcs	72 pcs	72 pcs

Decriptions :
1.Air cooled engine type
2.Single phase power from 2kva -- 6.5kva
3.Three phase power from 2kva -- 8.5kva
4.Generator can install remote control and Auto Transfer Switch
5.Generator are both open type and silent type for your choice .

Product Warranty Details
1.JET product has guarantee for one year or 1000 hours whichever reach first from ex-factory date.
2. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material.
3.After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
