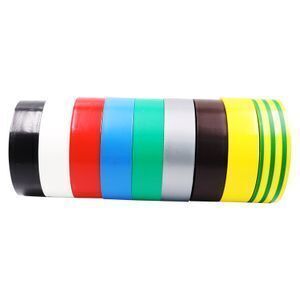

High voltage Flame Retardant Vinyl Electrical Insulation PVC Tape
-
Supplier: Shanghai Huipu Adhesive Technology Co., Ltd. -
Region: Shanghai, China -
Contact: Ms ivy ge -
Price: $0.12 / >=10000 rolls -
Min. Order: 10000 rolls
| Thickness: | 0.105m-0.2mm; | Feature: | Strong Adhesion; |
| Brand Name: | OEM; | Color: | colorful; |
| Packaging Detail: | High voltage Flame Retardant Vinyl Electrical Insulation PVC Tape 10rolls/shrink, 200/300/500 rolls/carton or according to client's requirement; | Adhesion: | 0.34kg/19mm; |
| NAME: | High voltage Flame Retardant Vinyl Electrical Insulation PVC Tape; | Type: | Insulation Tape; |
| Application: | High Temperature; | Usage: | electric Industrial; |
| Log Roll: | 1260mm; | Rated Voltage: | 600V; |
| Supply Ability: | 10000000 Roll/Rolls per Month; | Tensile Strength: | 3.4N/19mm; |
| Certification: | CE RoHs; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| OEM: | YES; | Material: | PVC; |
| Place of Origin: | Shanghai China; | Port: | SHANGHAI; |
| MOQ: | 10000 pieces; | Model Number: | 21G; |

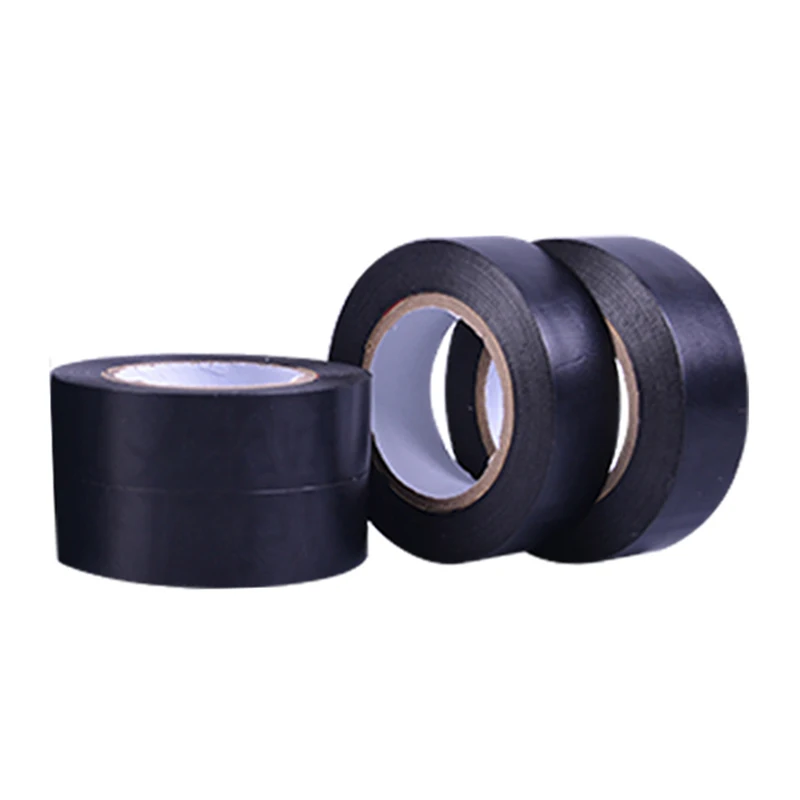

Best Factory China PVC Electric Tape Black insulation tape UK MARKET
| Name | Electrical tape | |||
| Material | PVC film+rubber pressure senditive adhesive | Packing | Carton | |
| Specification | Width | 18mm or customized | Color | Black,red,yellow,green or customized |
| Thickness | 130um or customized | Sample Time | Shipped in 7 days | |
| Length | 18M or customized | MOQ | 5000rolls | |
| Uasge | For electronic componets insulation,wire winding,joint and repair.Also used for the binding,fixing,lapping,repairing,sealing and protecting in the industrial process. | |||
| Product | Total thickness | Peel Adhesion | Strength to Backing | Tensile Strength | Elongation % at break | Break ddown voltage | |
| (um) | (mil) | ASTM D-3330 (N/in) | ASTM D-3330 (N/in) | ASTM D-3330 (N/in) | ASTM D-3759 | ASTM D-1000 (kv) | |
| HP12 | 120 | 4.7 | 3.5 | 2 | 40 | 150% | 5 |
| HP13 | 130 | 5.1 | 3.5 | 2 | 45 | 150% | 5 |
| HP15 | 150 | 5.9 | 3.5 | 2 | 45 | 170% | 5 |
| HP18 | 180 | 7.1 | 3.5 | 2 | 40 | 190% | 5 |
Quality identification diagram:
HUIPU electrical insulation tape glue is stable,
It can be store for a long time without glue overflowing.
Poor quality tape glue is unstable,It’s easy to overflow
under high temperature or longtime storage.
HUIPU electrical tape film with strong and flexible quality, it is not easy to break down when stretch the tape strips by hand.
Poor quality with the recycle raw material,It will appear cracks or broken marks when stretch the tape strips by hand.
HUIPU electrical insulation tape production process is excellent and stable,
to ensure uniform and appropriate winding tension, and to ensure the comfortable use.
When poor quality tape store for a longtime ,especially in the
summer,it may appear core protruding easily.
A:Why choose us?
1)We are the factory,which means we can control the product’s quality
and accept OEM/ODM
2)We are professional manufacturer for all kinds of tapes
more than 60years
3)Competitve and profitable price
4)High quality product and stirct QC
5)Punctual delivery and lead time
6)Economical effective and timly comunication
B:what’s your payment terms?
1)Payment terms: TT 30% deposit advance,70% Balance before shipping
2)Lead time:15-20 workdays after deposit confirmed
3)Shipping ways:By sea,By Air,By DHL ,Fedex
C:What certification do you have?
ISO90001,SGS,ROHS,CE
Click here for more information
-
