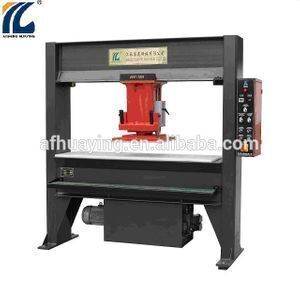

HYL4 Hydraulic Pressure Travel Head Die Cutting Machine

Product details
Port:Shanghai, Ningbo, etc;Brand Name:Huaying;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Key Selling Points:Long Service Life;
Packaging Detail:plywood;Condition:New;
Supply Ability:100 Set/Sets per Month;Certification:ISO9001;
Showroom Location:None;Local Service Location:None;
Warranty:1 year;Place of Origin:Jiangsu China;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Application:non-metal;
Applicable Industries:Manufacturing Plant;Dimensions:2200*700*2200mm;
Weight:1600kg;Power(W):2.2kw;
name:HYL4 Hydraulic Pressure Travel Head Die Cutting Machine;After-sales Service Provided:Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Type:Hydraulic Cutting Machine;Voltage:220v, 380v so on;
After-sales Service Provided:Engineers available to service machinery overseas;Saw Blade Diameter:1600 mm;
Max. Cutting Depth:150 mm;

Detailed Product Description

die cutting machine

The HYL4 Hydraulic Pressure Travel Head Die Cutting Machine(same as atom) is mainly suitable for cutting one layer or layers of leather, rubber, plastic, paper-board, fabric, chemical fiber, non-woven and other materials with shaped blade.

1. Adopting the structure of gantry framework, so the machine has high intensity and keep its shape.

2. The punch head can automatically move transversely, so visual field is perfect and the operation is safe.

3. Return stroke of the platen can be set arbitrarily to reduce idle stroke and improve efficiency.

4. Using differential oil way, cut is rapid and easy.



Main Features:

  • Pushbutton controls (time interlock synchronization during cutting phase) to ensure positive safety for the operator
  • Really exceptional trolley displacement speed
  • High power continuity
  • Low energy consumption
  • High reliability, no primary maintenance required
  • On Demand



    HYL4-250

    HYL4-250A

    HYL4-350

    HYL4-350A

    HYL4-500

    HYL4-500A

    Serviceable breadth

    1600 mm

    1800 mm

    1800 mm

    2000 mm

    1800 mm

    2000 mm

    Travel head

    500x500 mm

    650x650 mm

    650x650 mm

    760 x 760 mm

    650x650 mm

    760 x 760 mm

    Maximum cutting power

    25tons

    25tons

    35tons

    35tons

    50tons

    50tons

    Stoke adjustable from-to

    5-150 mm

    5-150 mm

    5-150 mm

    5-150 mm

    5-150 mm

    5-150 mm

    Pump motor

    2.2KW

    2.2KW

    3.0KW

    3.0KW

    4.0KW

    4.0KW

    Travel head speed

    1.07 m/sec

    1.07 m/sec

    1.07 m/sec

    1.07 m/sec

    1.07 m/sec

    1.07 m/sec

    Dimensions

    2200 x720x2200 mm

    2400x720x205 0mm

    2500x900x2100 mm

    2700x900x2200 mm

    2500x900x2200 mm

    2700x900x2200 mm

    Net weight, with oil

    1600 Kg

    2100Kg

    2600kg

    3000 Kg

    3800kg

    5000kg







Feed Systems Available: Roll Feed Systems

                                               Clamp Feed Systems



Factory direct sale; Guarantee Period one year

Note: we can produce different types, tons and cutting area of machine according to your demand.

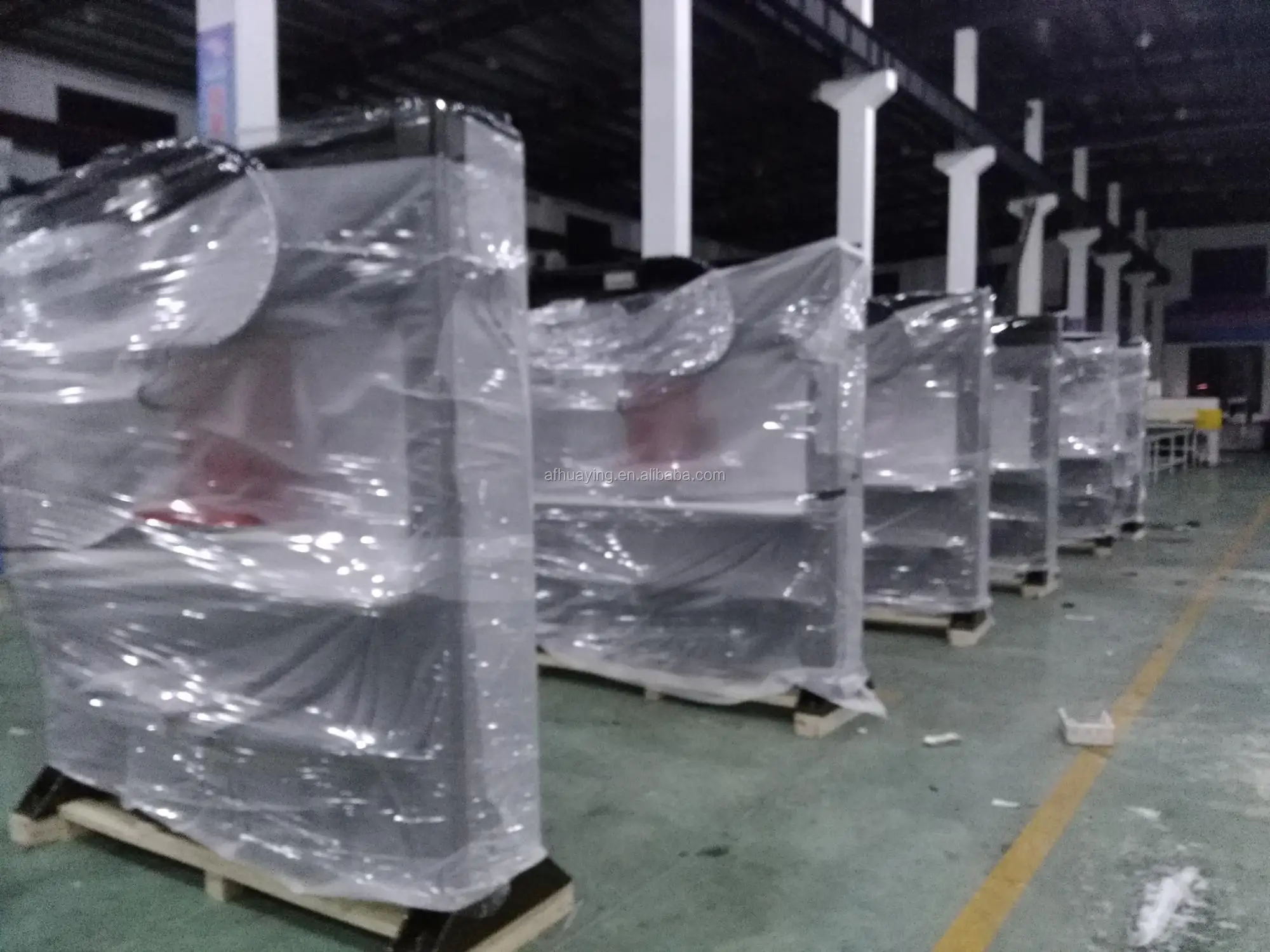

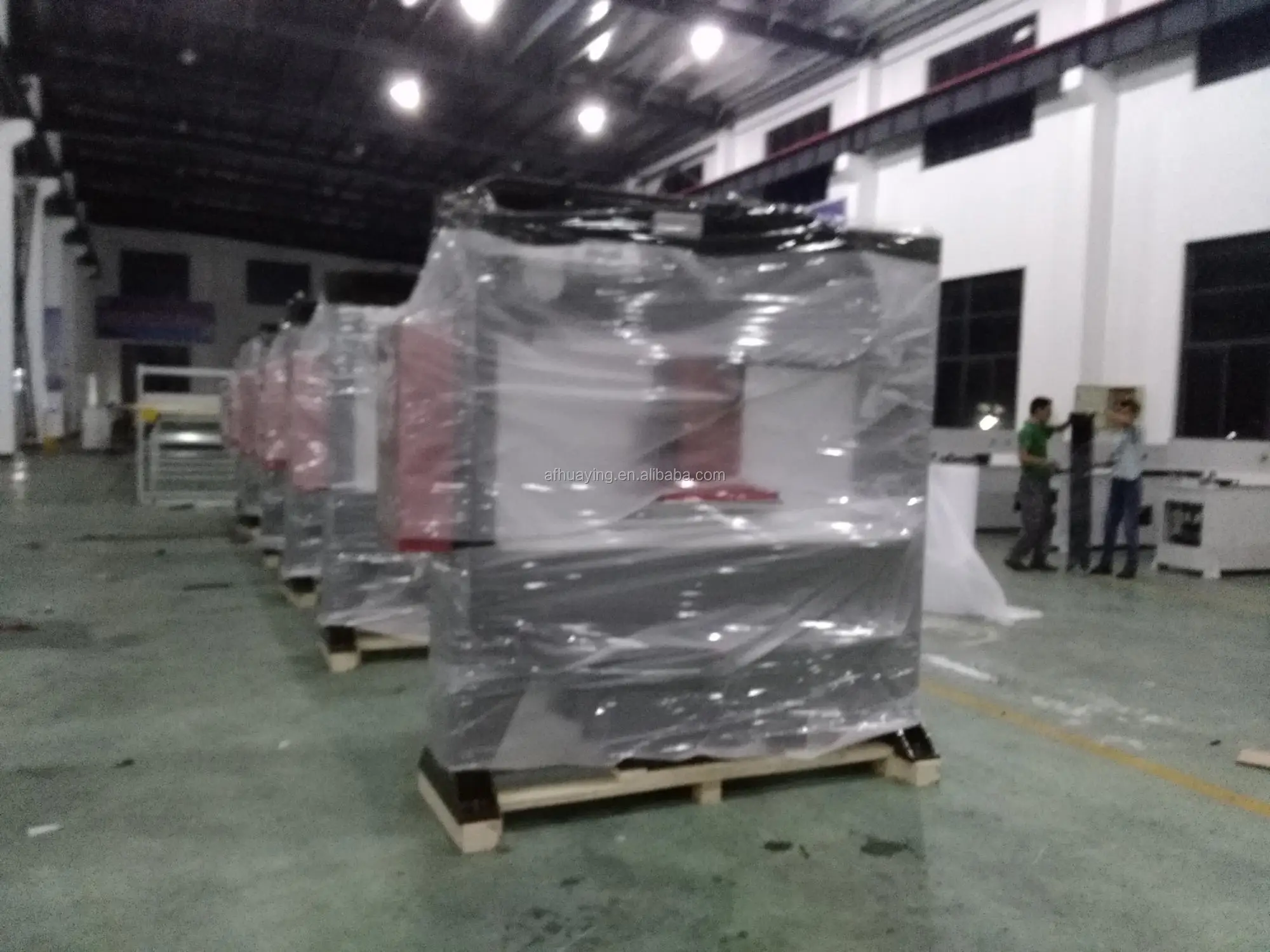

Production Picture

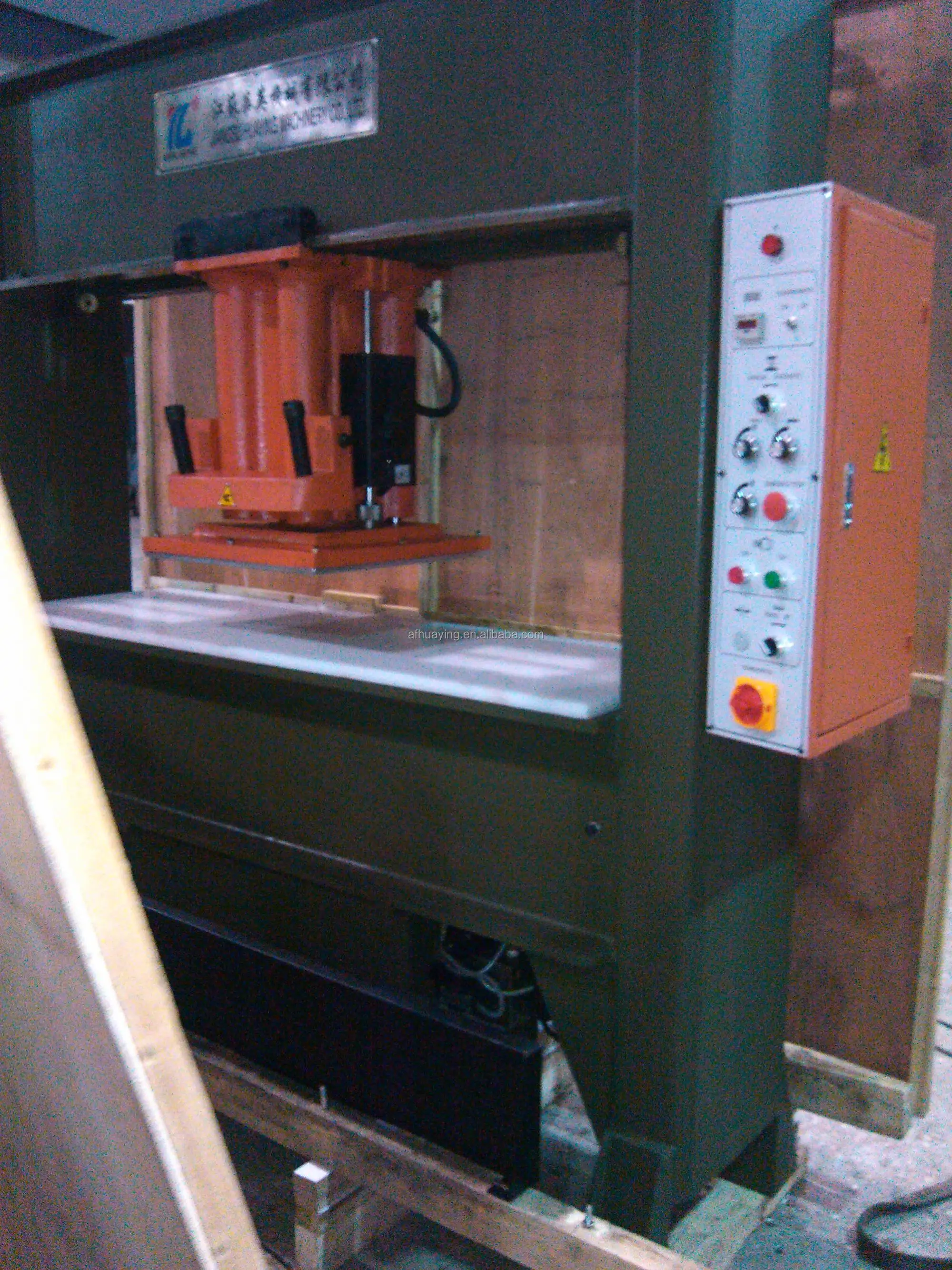

Process Picture





+

*production:

(1)we produce hydraulic cuting machine with your own designed logo.

(2)supply ability:100 sets/month

(3)fast delivery

*price

(1)wholesale price

(2)good quality with best price

(3)terms of payment: T/T

*certificate:ISO9001-2008 Approved

*Market:East Asia,Eastsouth Asia.South America, Mexico,Middle east, East Europe and so on.

Artwork skills:The second generation hydraulic principle.





Price term:  FOB Shanghai                  Payment term:  T/T



Supply Ability: 100 sets/month            MOQ:  1 set



Sample delivery time:  2-3 days



Delivery Time:  within 20 days after samples confirmed



 Artwork: plane cutting machine, travel head cutting machine, four-column cutting machine and so on .







FAQ:



1.Q:Are you a factory or trading company?
A: Yes,we are a factory. you are most welcomed to visit us .





2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Xinghua City, Jiangsu Province, China, about 4 hours from Shanghai.All our clients, from home or abroad, are warmly welcome to visit us!





3.Q:Have you ever attended any exhibitions ?
A: Sure.

Sample: 2012 Guangzhou exhubition





4.Q:What is the material of your products?

A: The material is mainly steel. We can also choose material as customers’ requirements.





5.What is the artwork of your products,can print our logo?

A: Yes,we can provide your logo.







6.Q:Can I get some samples?
A: We are honored to offer you samples in advance.





7.Q:How does your factory do regarding quality control?
A: Quality is priority. Huaying people always attach great importance to quality controlling from the very beginning to the very end.  Our factory has gained ISO authentication.







Welcome to contact us for more details ,most competitive price for you!
